Double Seat Frame for Sprinter Crafter Ducato & Boxer

 Double Seat Frame for Sprinter Crafter Ducato Boxer

The double seat frame with seat belts is designed to be retro fitted into the rear of your van using the included under chassis fitting kit. There are two kits available one specific to Ducato/Jumper/Boxer and the other is for Sprinters (current model) and Crafters pre 2017.

This seat frame model has been designed to accommodate the Truma Combi 4E or D4E heating and hot water system which is invaluable when space is at a premium.

The frame is sold without cushions or upholstery so you can have it trimmed to suit your needs.

Fully tested seat belts come pre fitted. This seat base is homologated according to R14 for Fiat and Citroen vans, but it will also fit Sprinters and Crafters

The Truma Combi 4e heater is only shown for reference on the images.

This is a great solution if you're looking to safely add a rear double seat to your camper, where you require seatbelts.

Frame is suitable for a seat of around 800mm wide.

Headrests

There is now the option to add a set of two headrests that bolt straight onto this frame.

The Headrests are height adjustable as is usually the case on a factory car seat.

The Headrests come as a set of 2 and are untrimmed so you can match them to your interior.

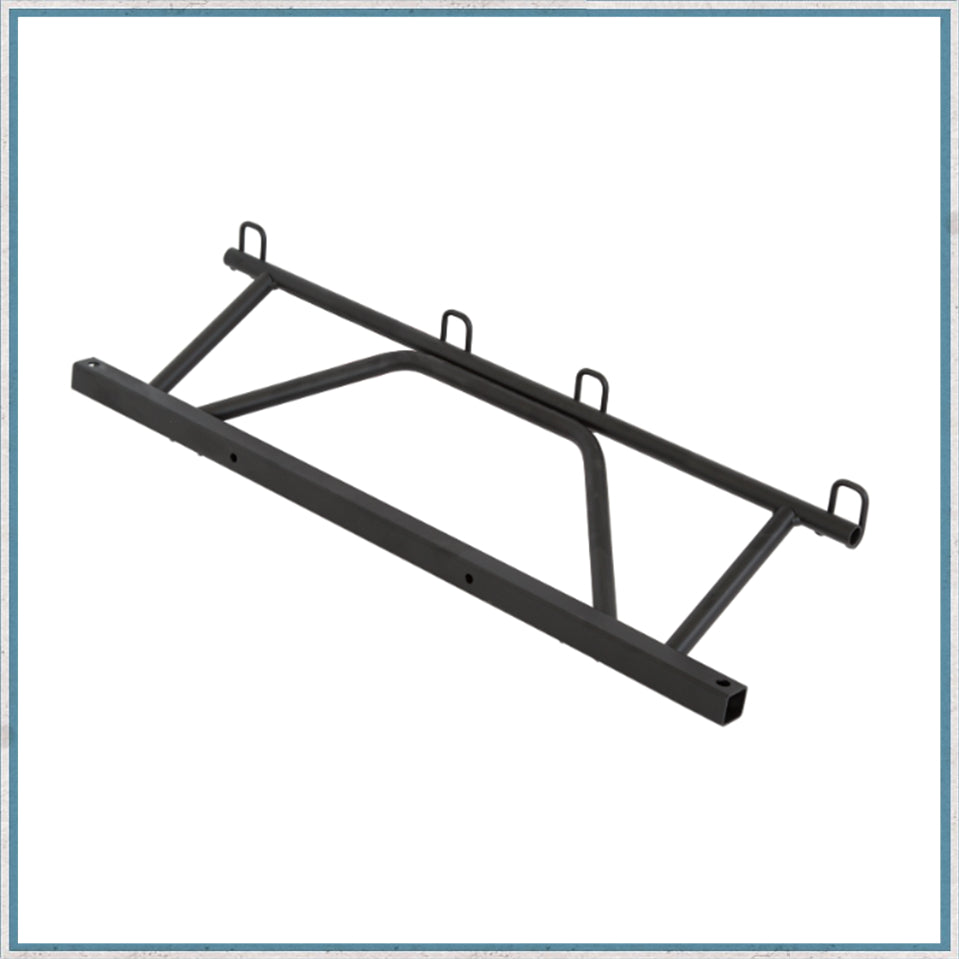

 ISOFIX

The optional M1 Pull tested ISOFIX base is perfect for ensuring your children are as secure as possible whilst traveling in an ISOFIX seat.

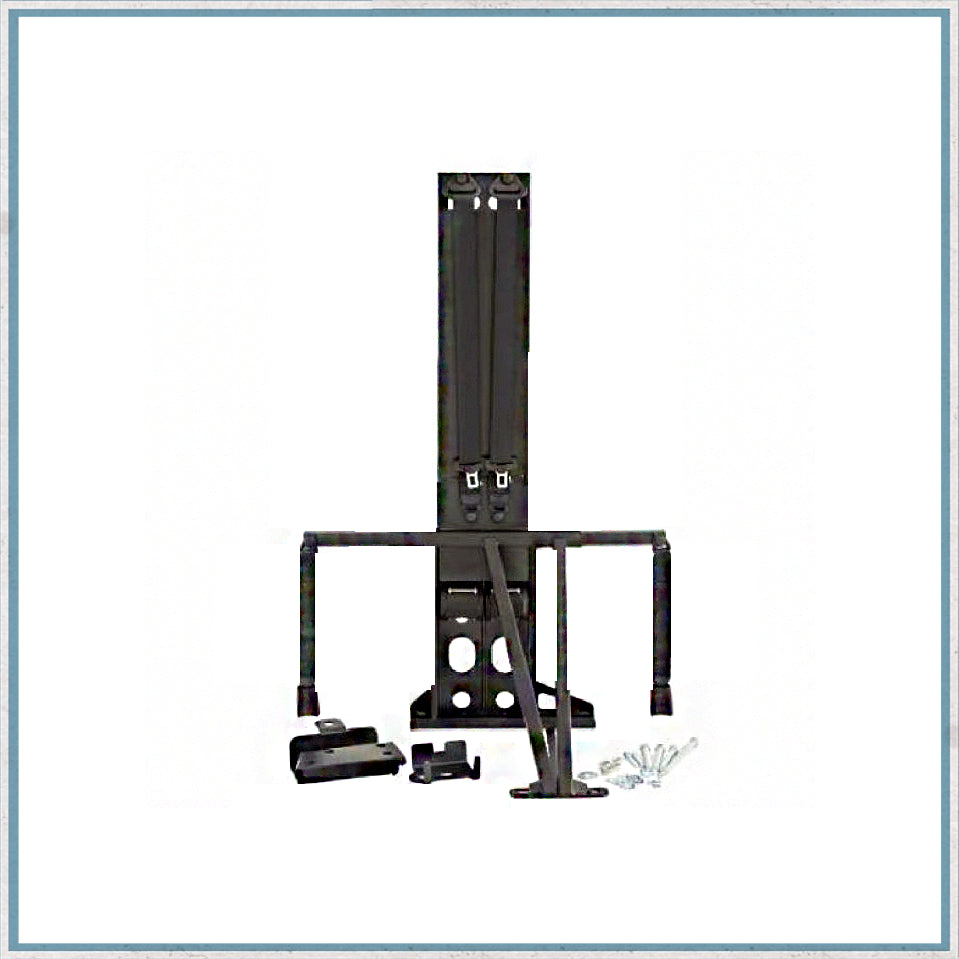

SEAT FRAME INCLUDES UNDER CHASSIS FITTING KIT

Note: The chassis rail on the Sprinters is directly below the standard seat position, which lets you set the seat position forward or backwards along the chassis rail.

With the Ducato, with chassis rail is closer to the side of the van so an offset bracket is used.

This frame is manufactured in Italy by one of the largest motorhome seat manufacturers.
