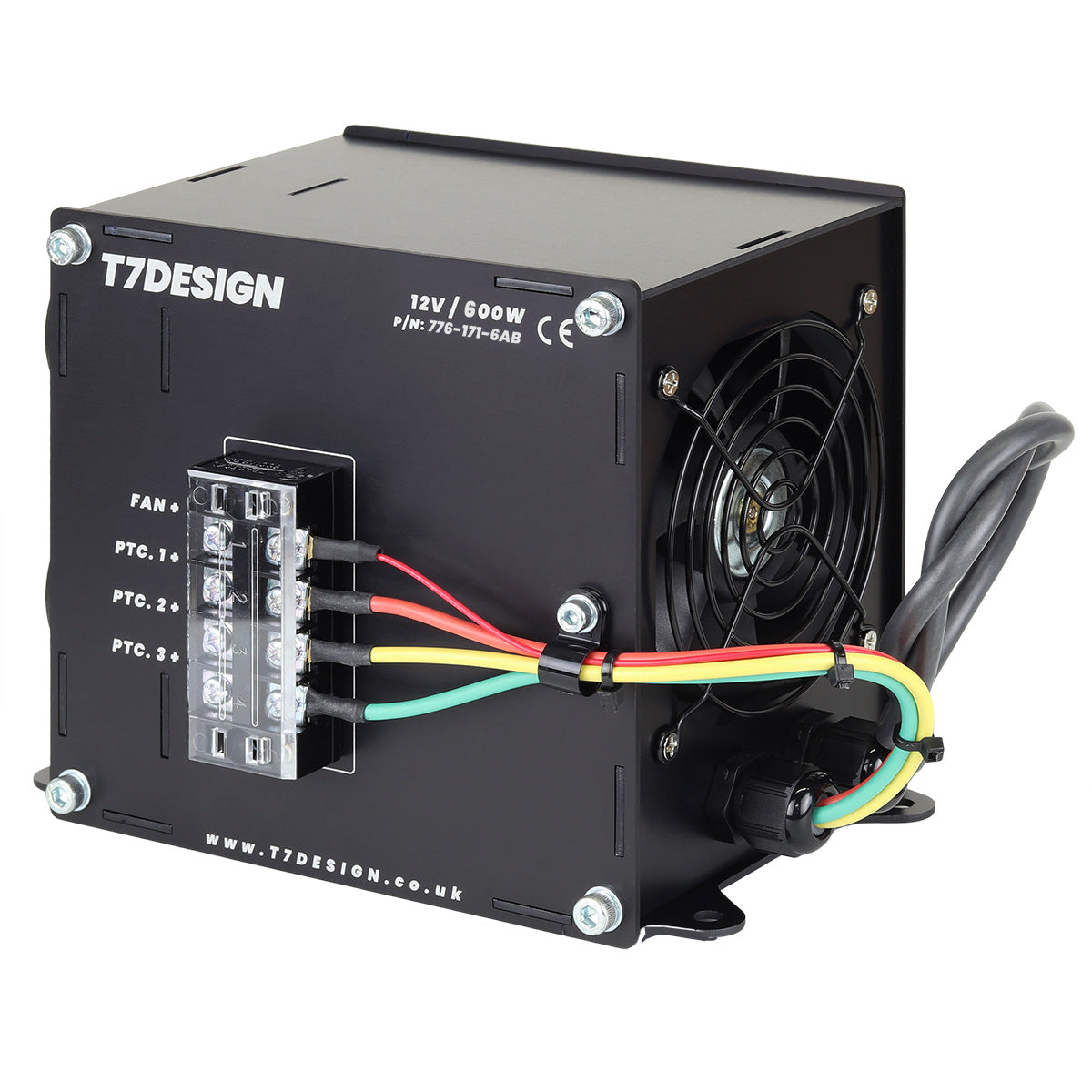

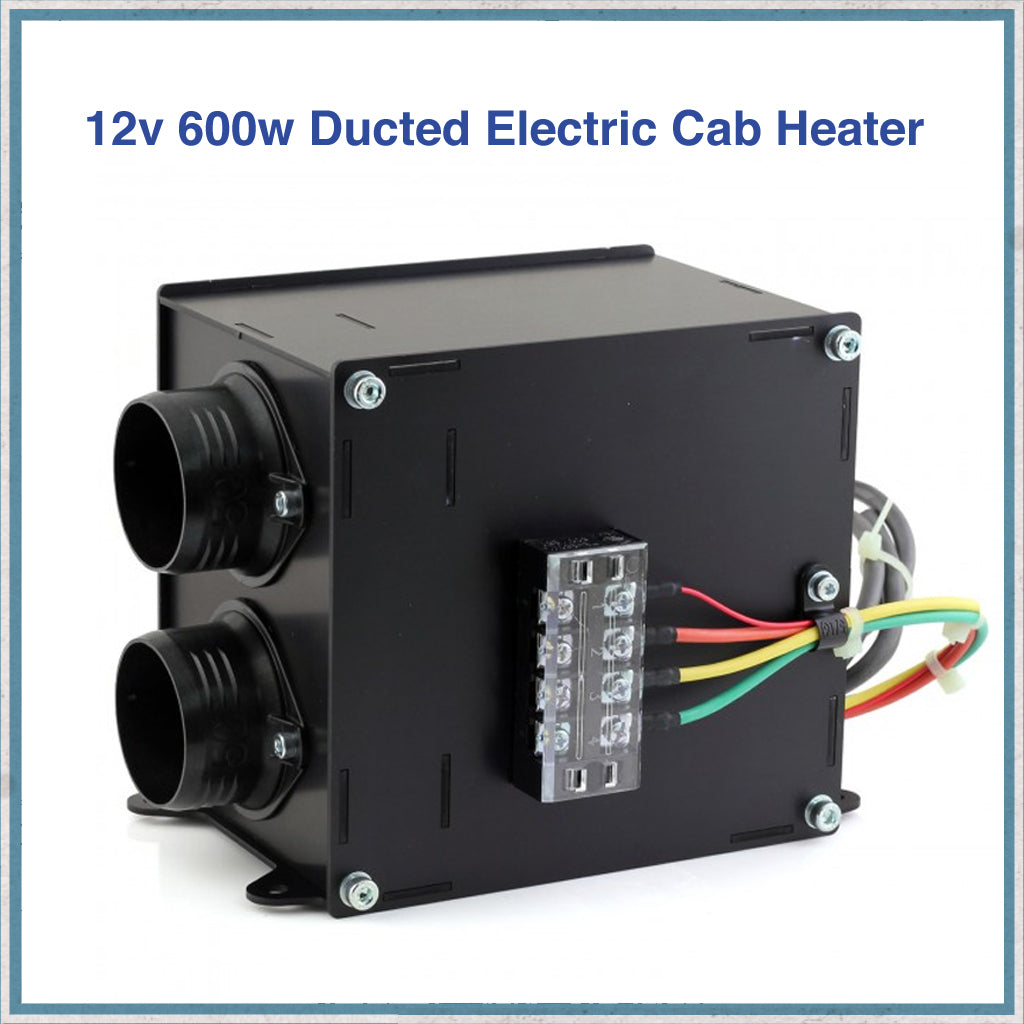

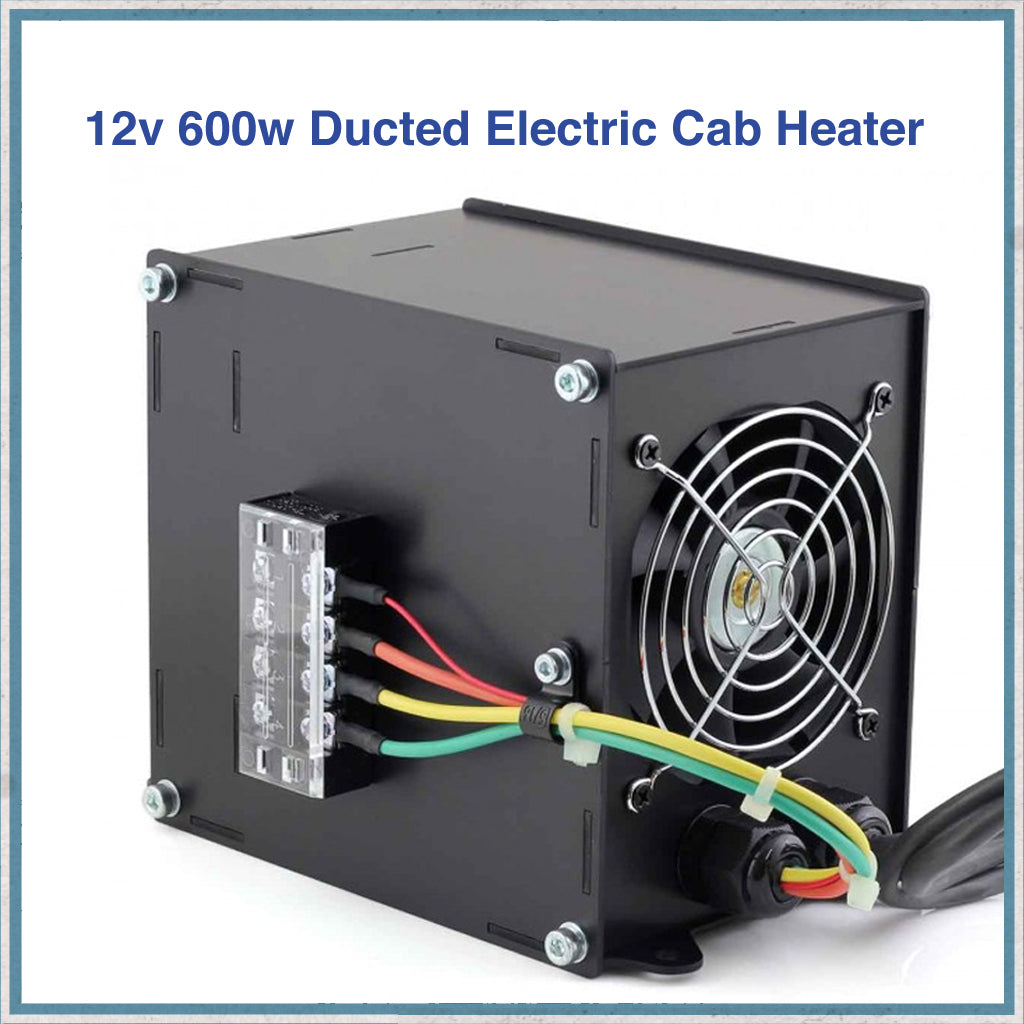

12v 600w Ducted Electric Cab Heater

12v 600w Ducted Electric Cab Heater


12v 600w Ducted Electric Cab Heater

This new 12v DC electric heater is perfect for many applications that require a fume free and reliable heating system. These units are designed, manufactured and hand assembled by T7Design Ltd in the UK.

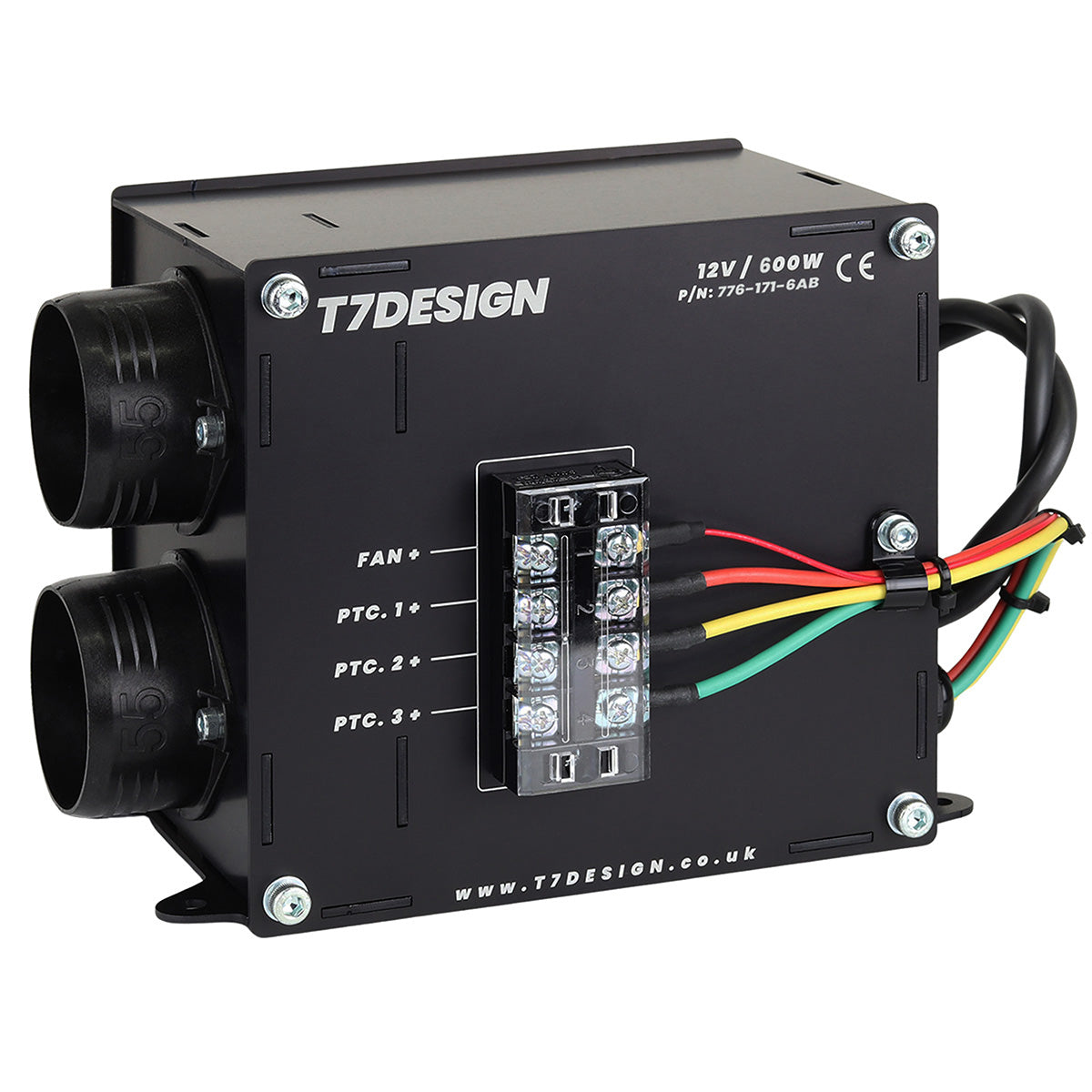

This unit has two 50mm outlet ducts and utilises a single speed fan.

If you only need something to warm a smaller interior space to take the chill out of the air for a short period of time, then the electric heater could suit your requirements.

These units are not a replacement for Diesel or Gas powered heaters, if you need something powerful then you can't beat systems such as Autoterm, Truma or Propex.

At full output this 600w heater will drain a 110a/hr leisure in battery in approximately 1 hour 45 minutes. As you can see there are pro's and con's to every type of heating system! If you are in doubt about what heating system best fits your requirements please don't hesitate to give us a call.


VW Beetle, Porsches & Other Air-Cooled Vehicles:

Perfect as a source of heating & defrosting for vehicles that have been fitted with an aftermarket exhaust system or no longer have the original exhaust based heating system altogether.

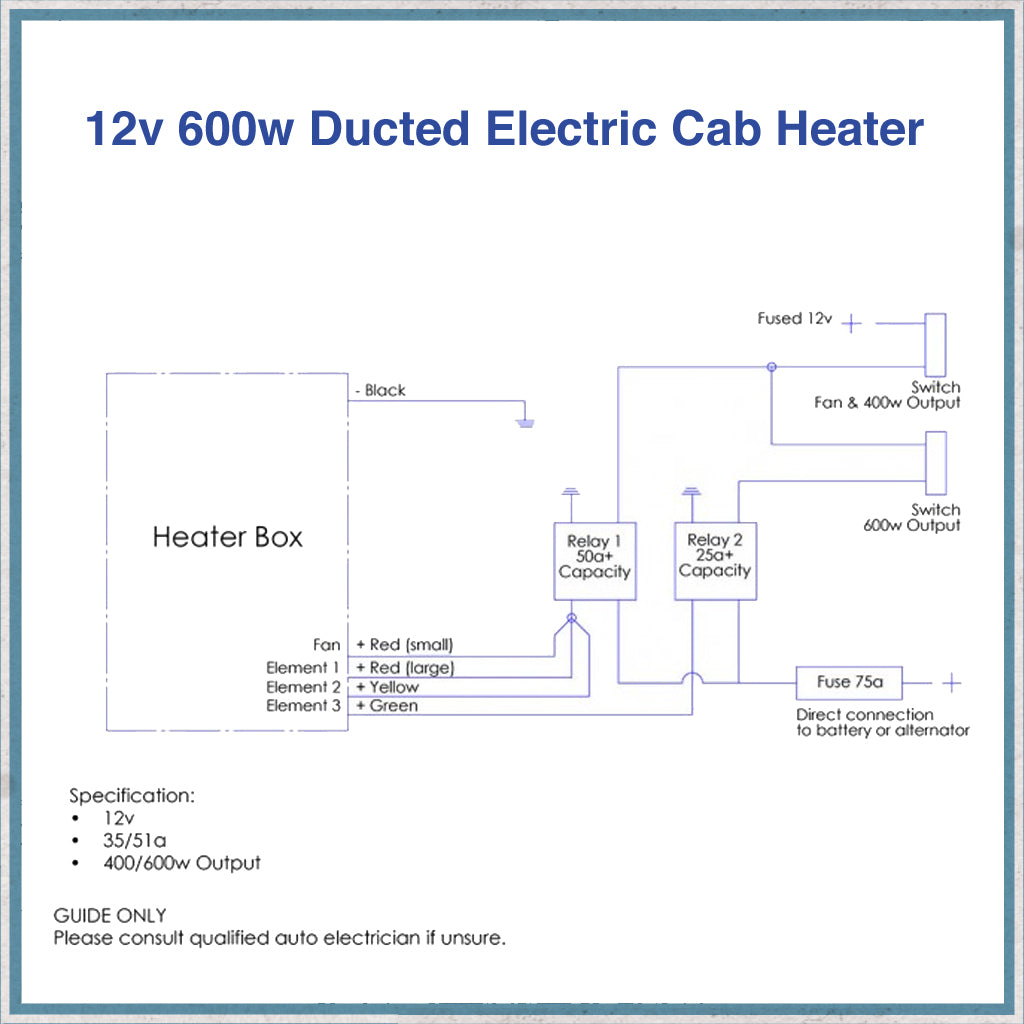

At full output this heater will draw a minimum of 51a and so it is recommended to fit an upgraded alternator to cope with the additional electrical load, if you run the stock alternator you are still able to run the heater at full output but only for a short period of time before you need to turn the heater down or turn it off entirely to allow your battery enough time to recharge.

The heaters are designed to be safe and reliable, we have chosen high quality brand name components manufactured by the leaders in their respective fields.




Specification Metric Imperial & Other
Heat Output 200, 400, 600 W 682, 1365, 2048 BTU
Air Nozzle Size 2x Ø 50 mm 2x Ø 2"
Airflow 187 m3/hr 110 cfm
Min Temperature -10 °C 14 °F
Max Temperature 60 °C 140 °F

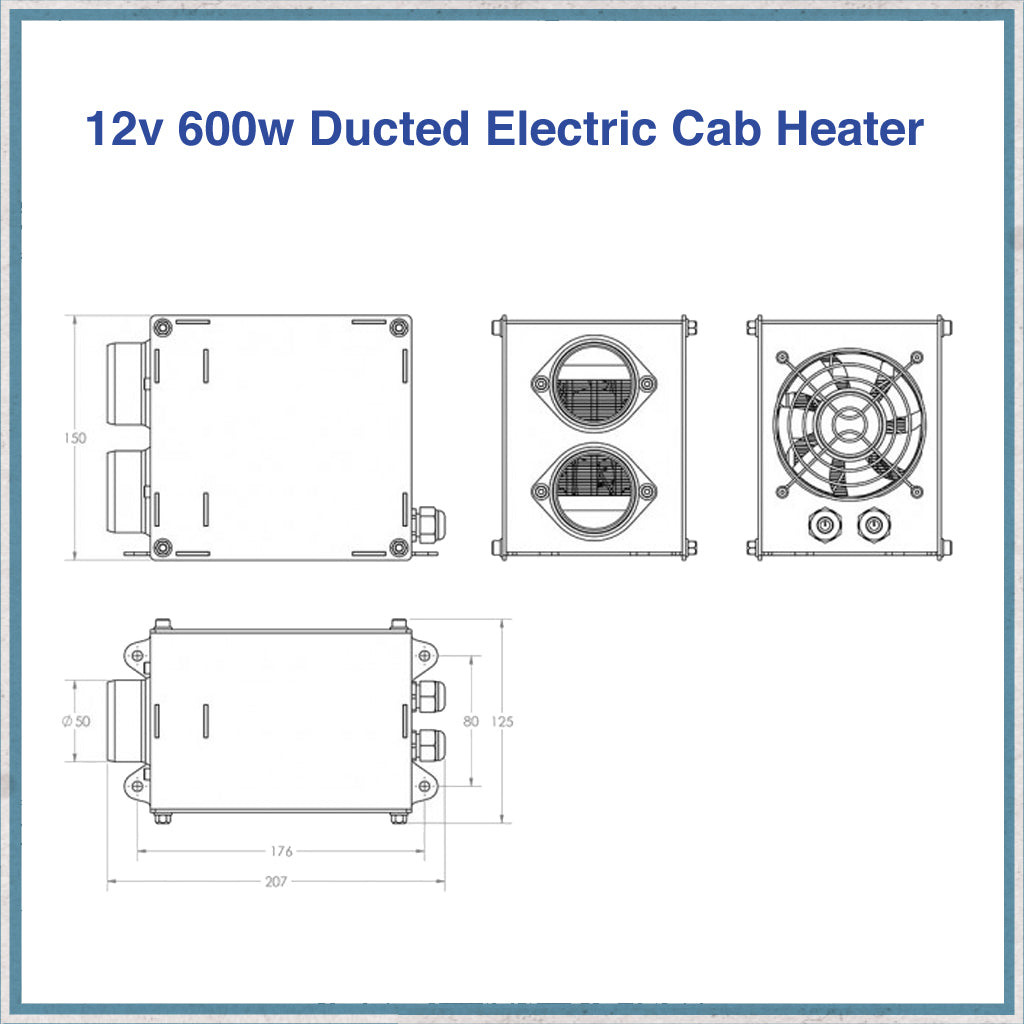

Dimensions (LWH) 207 x 125 x 150 mm 8.15 x 4.92 x 5.9"
Weight 1.42 kg 3.12 lbs
Fan Speeds Single Speed
Fan Life 70,000 Hrs @ 40°c
Noise 55 dB(A)
Voltage 12v
Current 52a Continuous, ~70a Inrush
Mounting 4x 6mm Holes Through Base
Enclosure Construction Anodised Black Aluminium Panels
Part Number 776-171-6AB
