Waeco 30 Litre Drawer fridge CD-30
30 Litre Waeco Drawer fridge CD-30
This high quality compressor drawer fridge, is designed and manufactured to the highest standards by Dometic Waeco.
It can cool to 32°C below the ambient temperature, utilising insulating material within the casing, to help reduce your power consumption together with a fully hermetic Danfoss BD35F compressor with integrated control electronics.

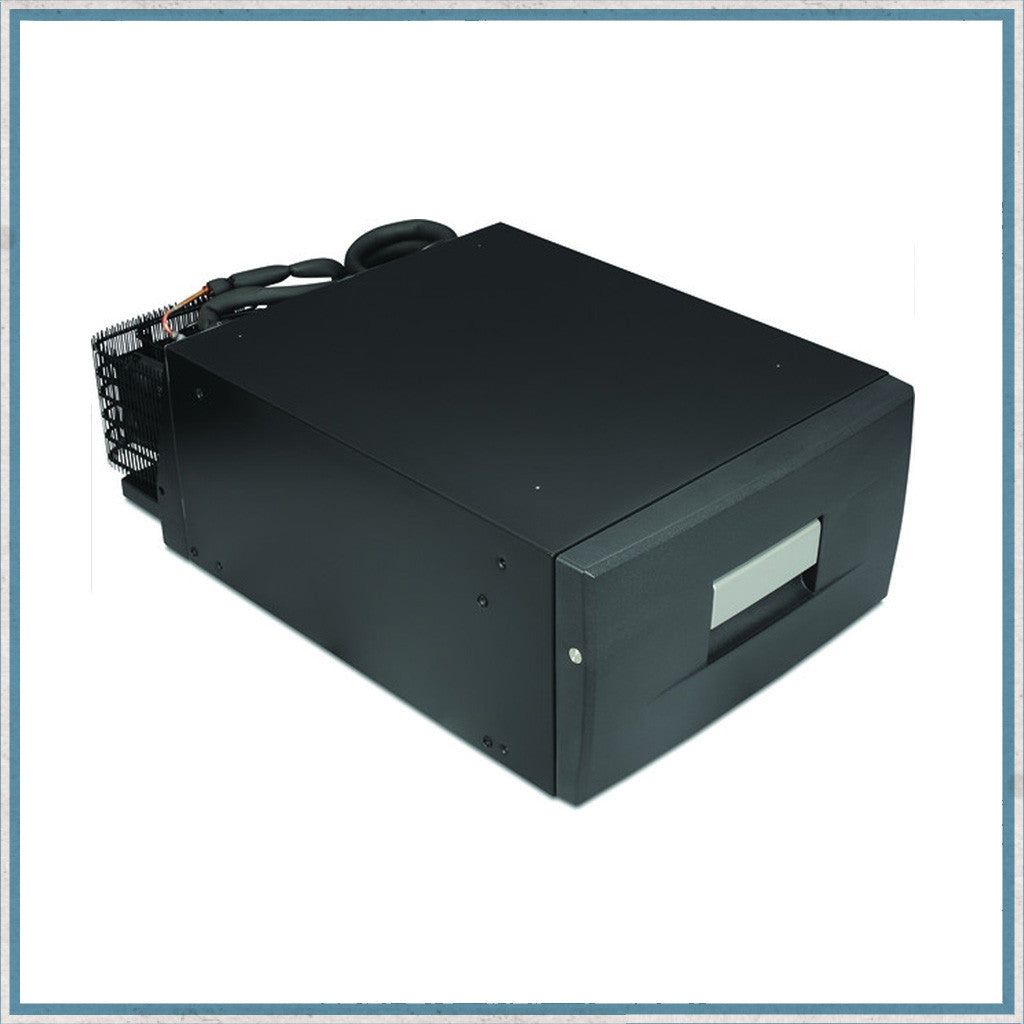

It is the ideal solution for fitting a fridge into a camper conversion when you are stuck for space, as the compressor can be removed from the rear of the fridge and mounted to the left or right, or up to 1.5 metres away. Allowing the fridge to be positioned under a Rock and Roll bed, or into a shallow cupboard unit.
Key Features

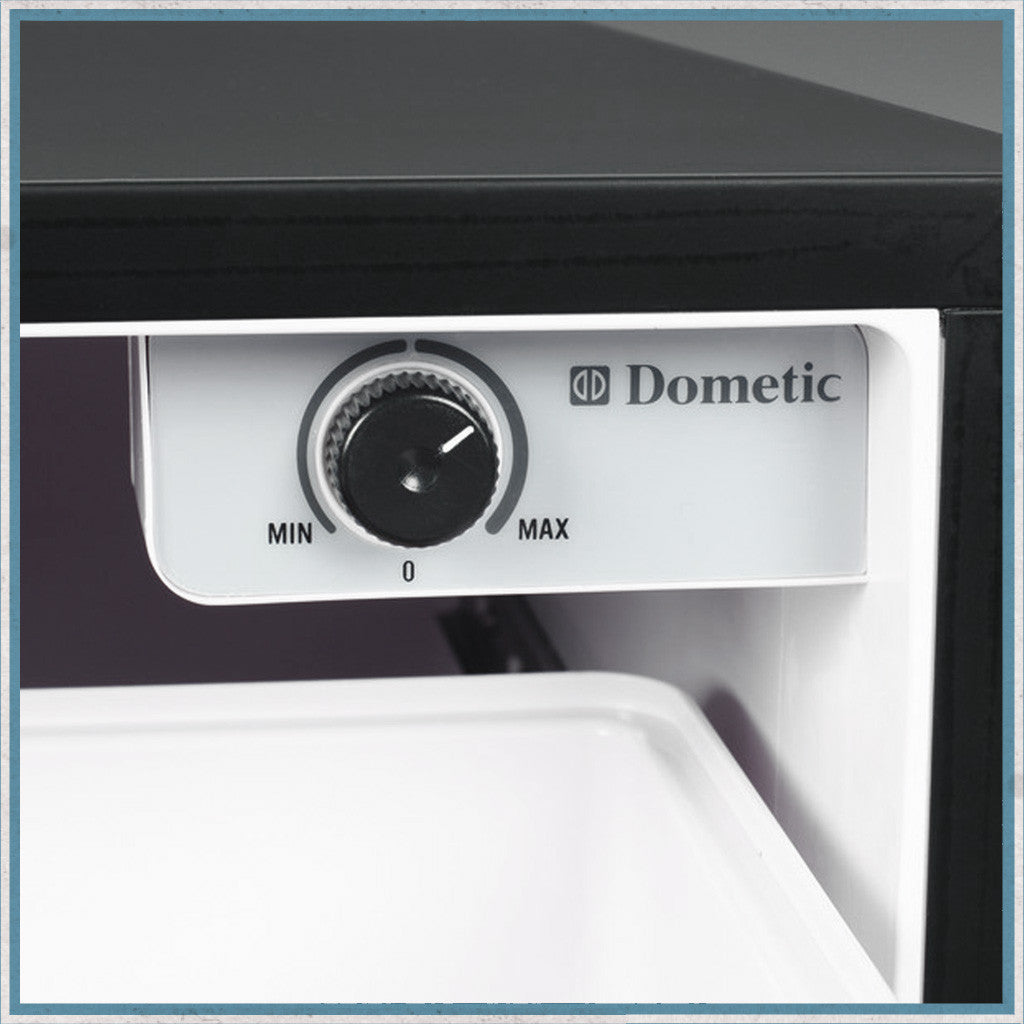

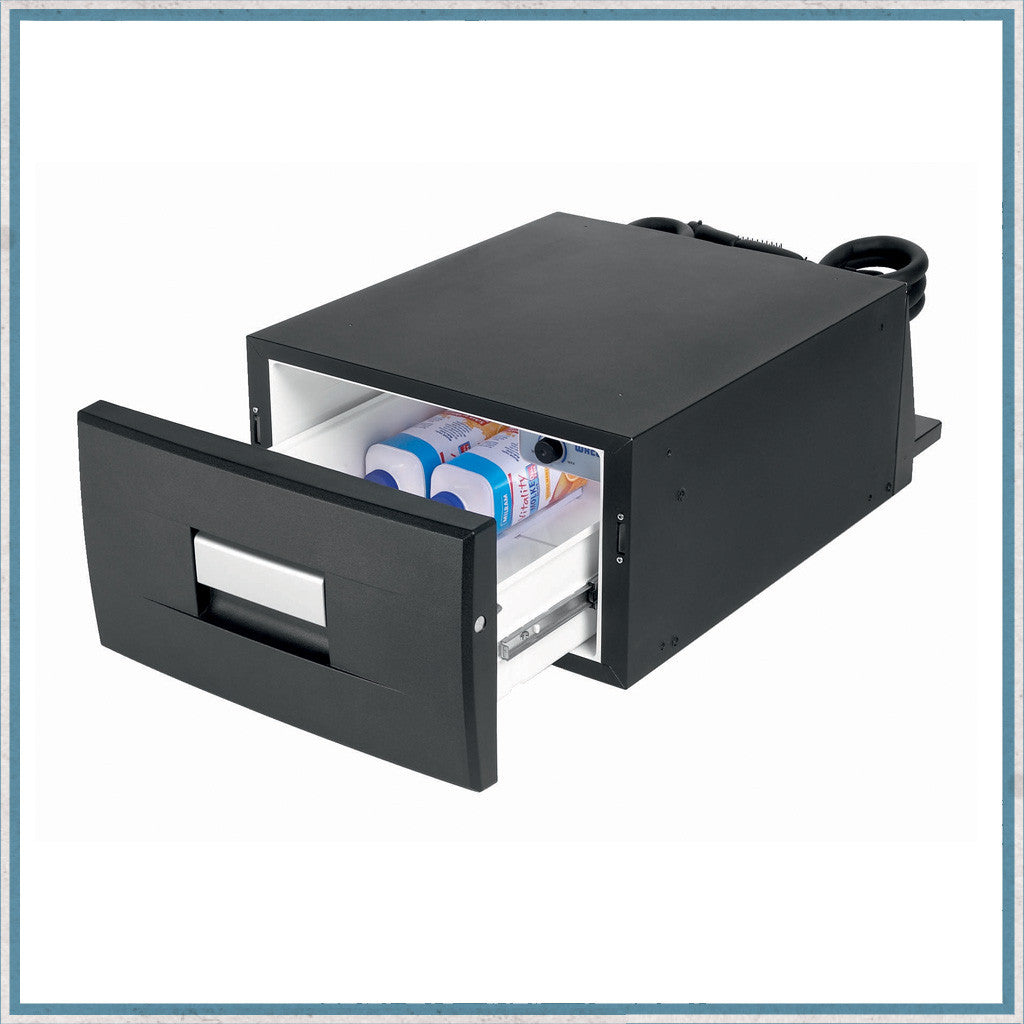

Convenient one-hand operation. Fully hermetic Danfoss BD35F compressor with integrated control electronics. Low-voltage protection for starter battery, electronic fuse/automatic reverse pole protection. Dynamically ventilated wire tube condenser, aluminium rollbond evaporator. Dissipation to the outside with brushless wear-free fan. Convenient access with easy-pull drawers running on roller bearing slides. Temperature regulation with continuously variable thermostat. Unlocking and opening with a single movement. Safe locking mechanism.
Specification
Voltage: 12 / 24 volts DC
Storage volume: approx. 30 litres
Dimensions minus the compressor: W x D x H - 440mm x 560mm x 250mm
Including compressor: W x D x H - 440mm x 730mm x 250mm
Switch off voltage: 10.4V at 12V power supply 22.8 V at 24 V power supply
Switch on voltage: 11.7V at 12V power supply 24.2 V at 24 V power supply
Connection voltage: 12 or 24V DC
Medium power consumption: 40 Watts
Temperature range: approx. -2 °C to +12 °C
Compressor running time: 20 % at 20 °C ambient temperature 40 % at 32 °C ambient temperature (at 5 °C device interior temperature)
Weight: 18 kg
