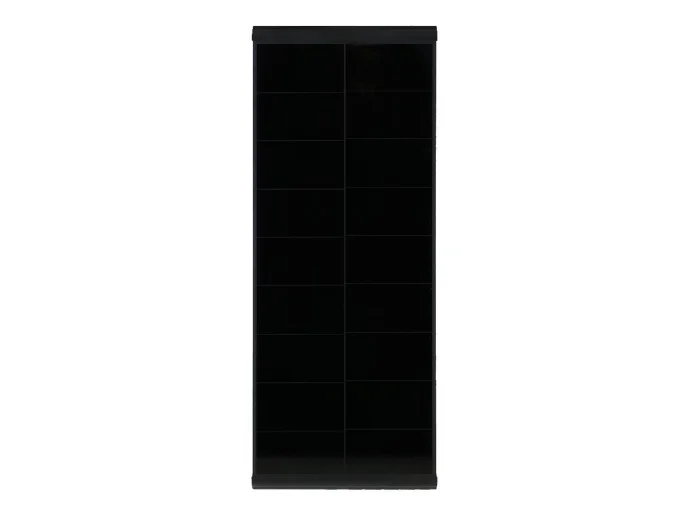

MESTIC SOLAR PANEL BACK CONTACT MSBC-130



Mestic's Back Contact solar panels represent a technological leap forward in photovoltaic efficiency. By relocating electrical contacts to the rear surface, these panels eliminate front-side shading losses and reflection, allowing superior light capture and conversion. The optimised cell architecture minimises parasitic energy dissipation across multiple loss mechanisms, delivering measurably higher power output per unit area than conventional front-contact designs. Ideal for space-constrained installations where maximum energy yield is essential.





25 Year performance guarantee : 85%, Power degradation first year : 1.5%, Power degradation subsequent year : 0.55%



Kit Contains:

Mounting brackets (2pcs)

Cable entry gland

Rubber connection cable 2.5mm² (500cm)



•        Model: MSBC-130

•        Colour: Elegant Black Appearance

•        Max power: 130w

•        Voltage at max power: 24.36v

•        Current at max power: 5.34A

•        Open circuit voltage: 27.72v

•        Short circuit current: 5.66A

•        No. of cells: 42

•        Cell type: Monocrystalline

•        Operating temperature: -40°C to +85°C

•        Weight: 8.2kg

•        Dimensions (HxWxD): 5.4 x 132.5 x 51.5cm

•        Warranty: 5 years

•        Quality mark: CE, ROHS
