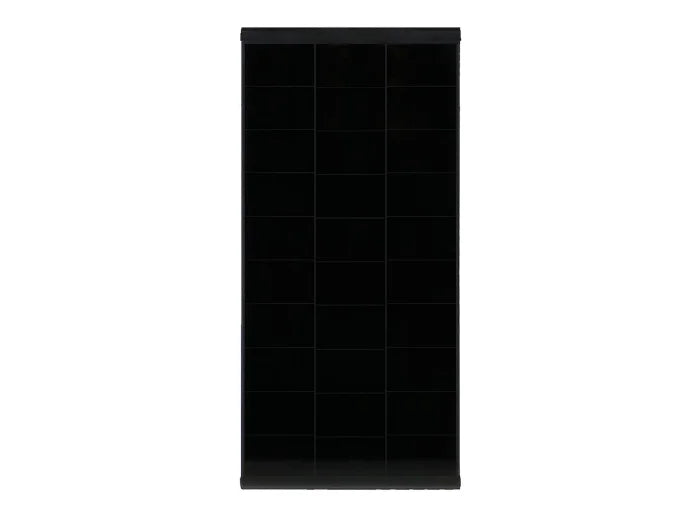

MESTIC SOLAR PANEL BACK CONTACT MSBC-190



Mestic's Back Contact solar panels represent a technological leap forward in photovoltaic efficiency. By relocating electrical contacts to the rear surface, these panels eliminate front-side shading losses and reflection, allowing superior light capture and conversion. The optimised cell architecture minimises parasitic energy dissipation across the panel's operating range, delivering measurably higher output than conventional front-contact designs. Ideal for applications where space and performance are critical, BC technology maximises your solar investment's return.



25 Year performance guarantee : 85%, Power degradation first year : 1.5%, Power degradation subsequent year : 0.55%



Kit Contains:

Mounting brackets (2pcs)

Cable entry gland

Rubber connection cable 2.5mm² (500cm)



•        Model: MSBC-190

•        Colour: Elegant Black Appearance

•        Max power: 190w

•        Voltage at max power: 17.40v

•        Current at max power: 10.92A

•        Open circuit voltage: 20.10v

•        Short circuit current: 9.64A

•        No. of cells: 60

•        Cell type: Monocrystalline

•        Operating temperature: -40°C to +85°C

•        Weight: 11.2kg

•        Dimensions (HxWxD): 5.4 x 141 x 68cm

•        Warranty: 5 years

•        Quality mark: CE, ROHS
