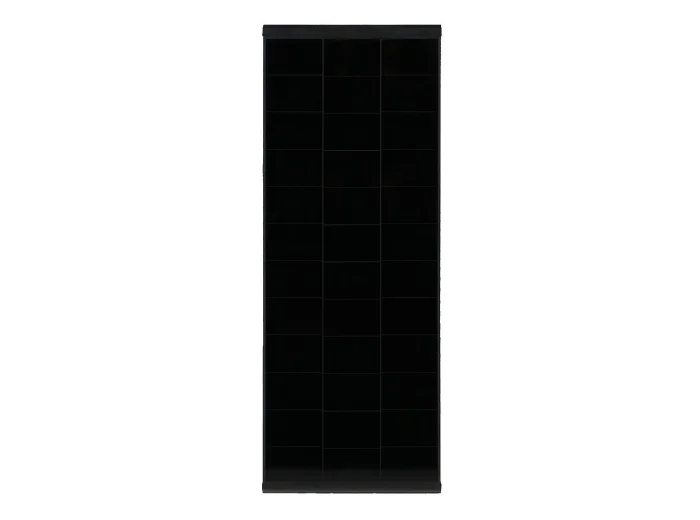

MESTIC SOLAR PANEL BACK CONTACT MSBC-250



Mestic's Back Contact solar panels represent a technological leap forward in photovoltaic efficiency. By relocating electrical contacts to the rear surface, these panels eliminate front-side shading losses and reflection, enabling superior light-to-electricity conversion rates. The optimised cell architecture minimises parasitic energy dissipation across multiple loss mechanisms, delivering measurable performance gains over conventional front-contact designs. Ideal for applications where space and output are critical considerations.

25 Year performance guarantee : 85%, Power degradation first year : 1.5%,  Power degradation subsequent year : 0.55%



Kit Contains:

Mounting brackets (2pcs)

Cable entry gland

Rubber connection cable 2.5mm² (500cm)



•        Model: MSBC-250

•        Colour: Elegant Black Appearance

•        Max power: 250w

•        Voltage at max power: 23.56v

•        Current at max power: 10.62A

•        Open circuit voltage: 27.36v

•        Short circuit current: 11.26A

•        No. of cells: 76

•        Cell type: Monocrystalline

•        Operating temperature: -40°C to +85°C

•        Weight: 13.9kg

•        Dimensions (HxWxD): 5.4 x 174 x 68cm

•        Warranty: 5 years

•        Quality mark: CE, ROHS
