Bulkhead Regulator Gas Fitting Kits for Camper Van Hobs and Combination Units

Bulkhead Regulator Gas Fitting Kits for Camper Van, Hobs and Combination Units

These kits provide the gas fitting parts needed to fit one of the Dometic, CAN or Thetford, Hobs or Hob/Sink combination units into your campervan conversion.

This kit contains a regulator which is fixed to a wall rather than directly to the bottle inside the gas bottle compartment. The bottle is connected to the regulator by a rubber hose. A brass compression fitting then goes through the wall of the gas locker and copper pipe is used into the appliance. A variety of hose options are available dependant on gas bottle type.

Your gas bottle must be in a sealed area within the van, with a floor mounted drop vent. It is recommended that you have a gas isolation valve between the bottle and the appliance, although we do offer the kits without if you choose not to have one.

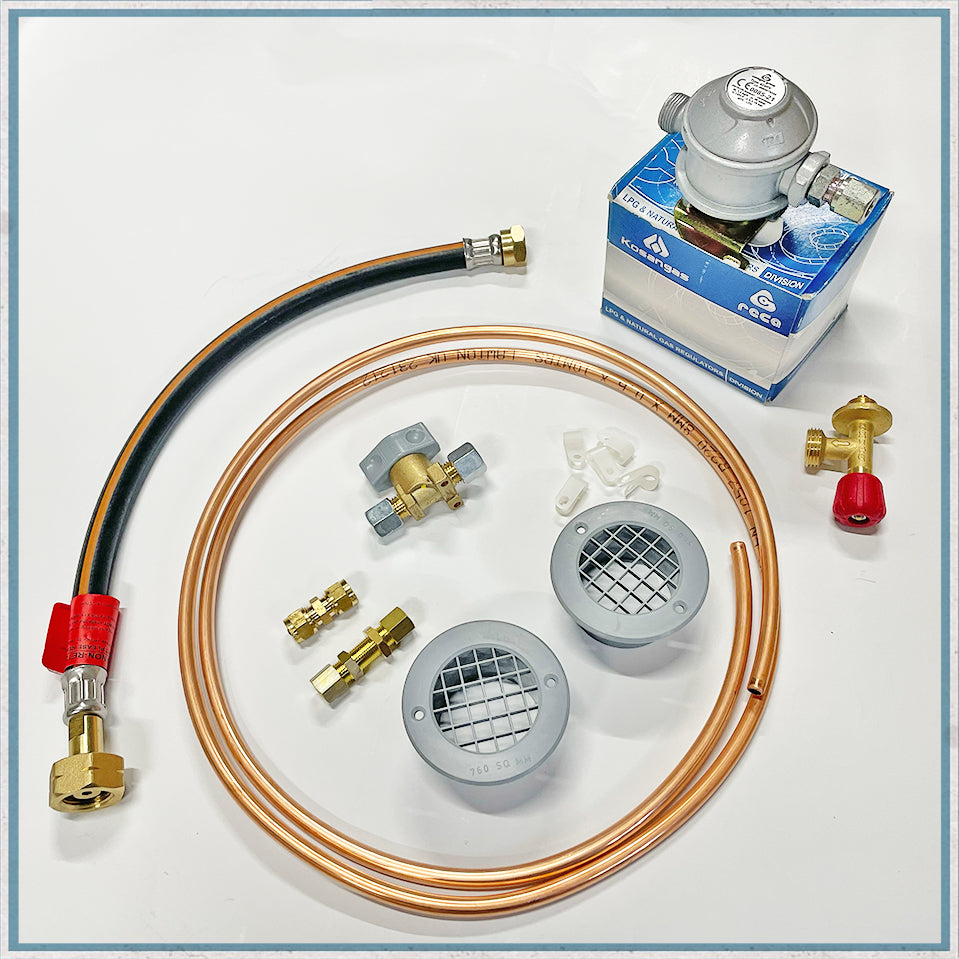

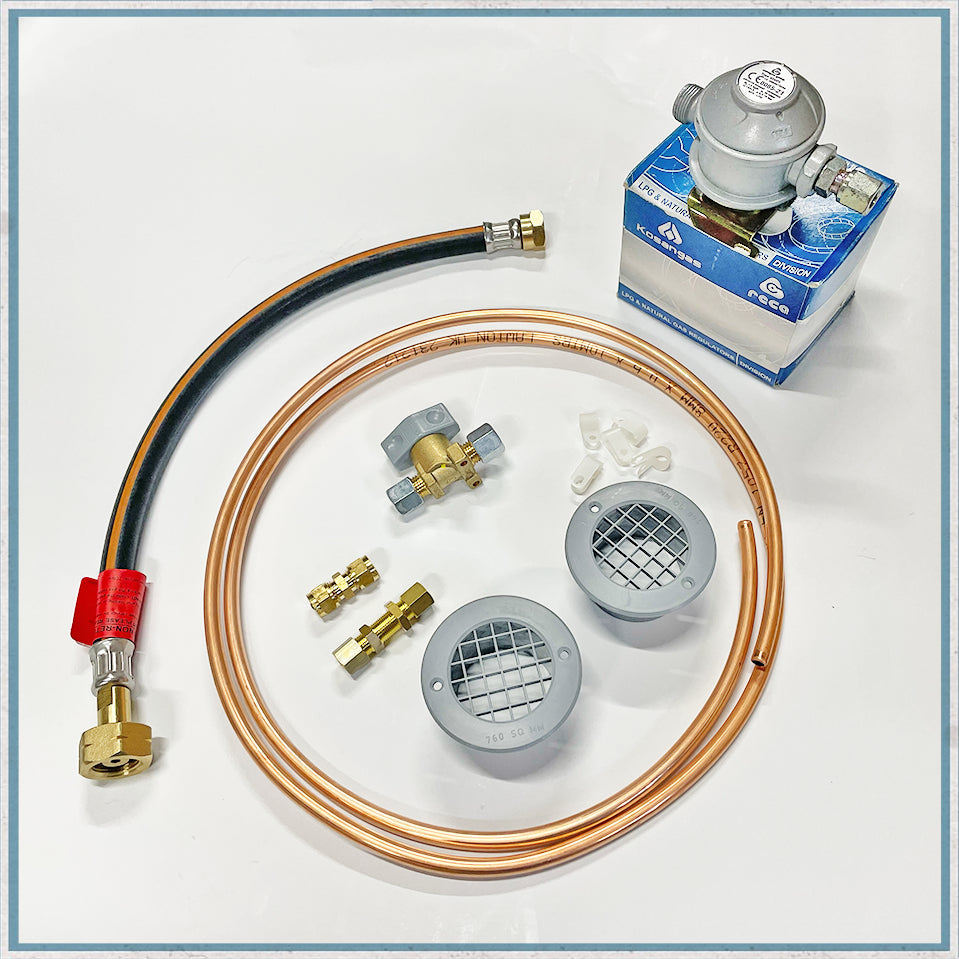

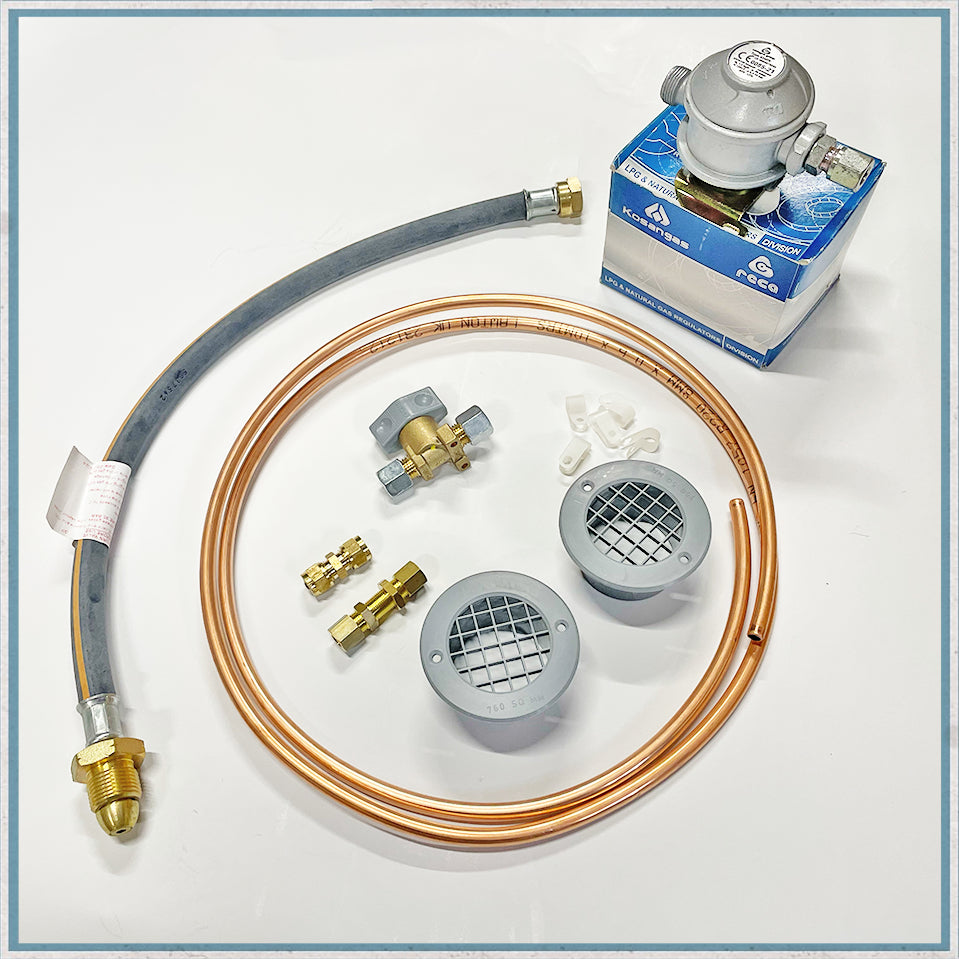

These Kits include the following:

• 2 Metre of 8mm copper gas pipe.
• 1 x 8mm straight Compression fitting.
• 1 x 8mm Bulkhead Compression fitting.
• 1 x Optional GOK Gas Isolation valve.
• 1 x Regulator: Butane, Propane, or Campingaz pigtail hose.

• 6 x 8mm P Clips.

• 2 x Gas Drop Vent.


If you have more than one appliance you would require the double or triple gas manifold, allowing you to isolate each individual appliance.

Also if you need longer lengths of the copper tube, you can build you own kit as required by going to the collection of gas components here.

Please Note: We always recommend any gas appliance is fitted/checked by a qualified LPG engineer.
