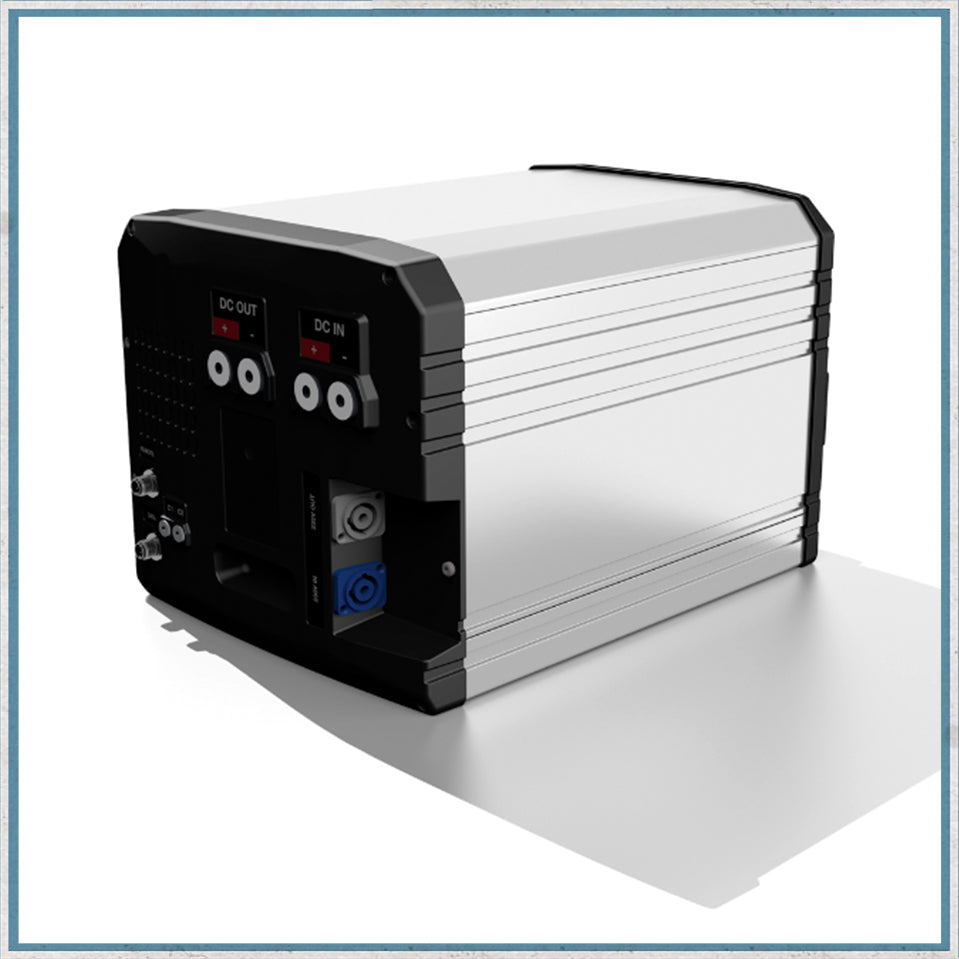

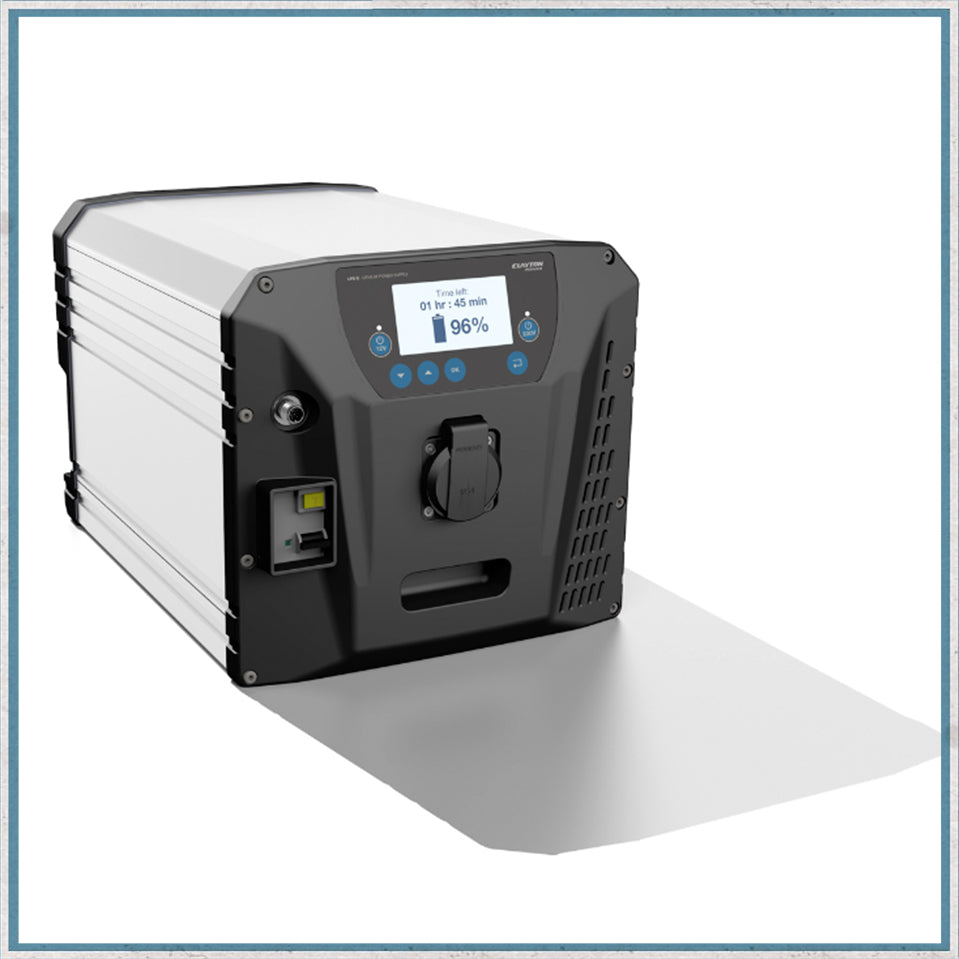

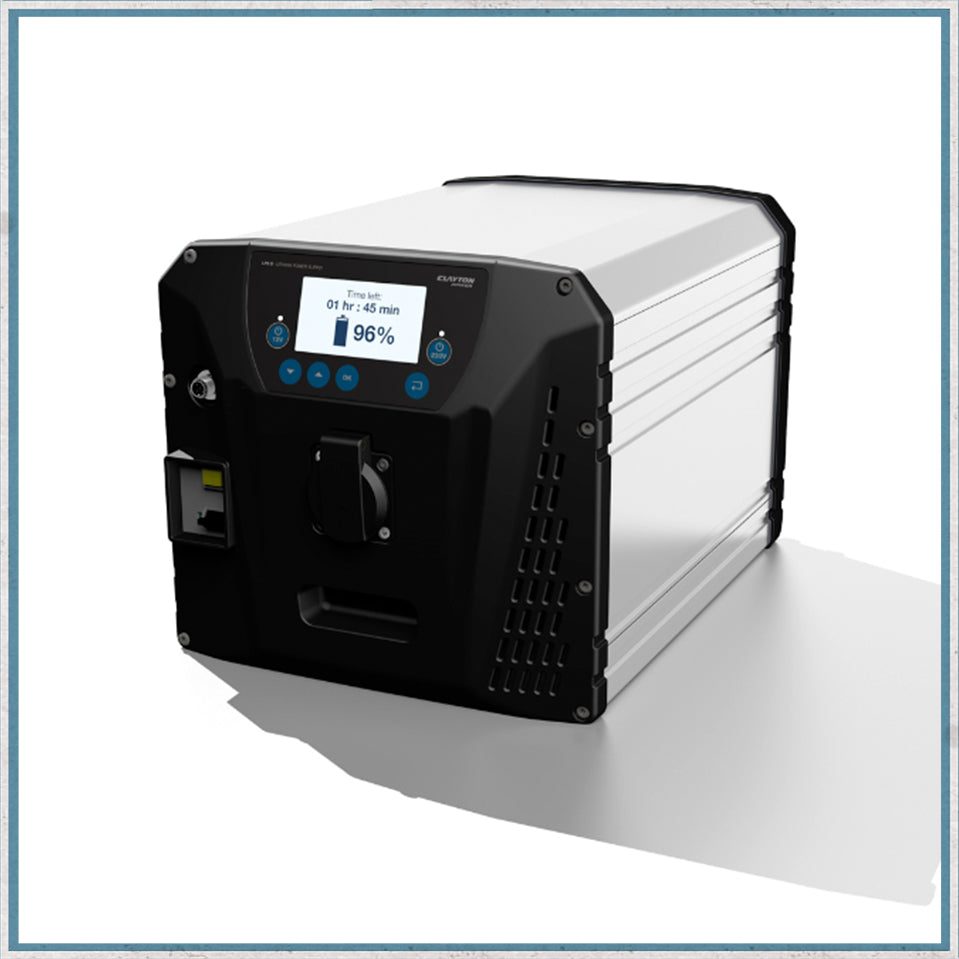

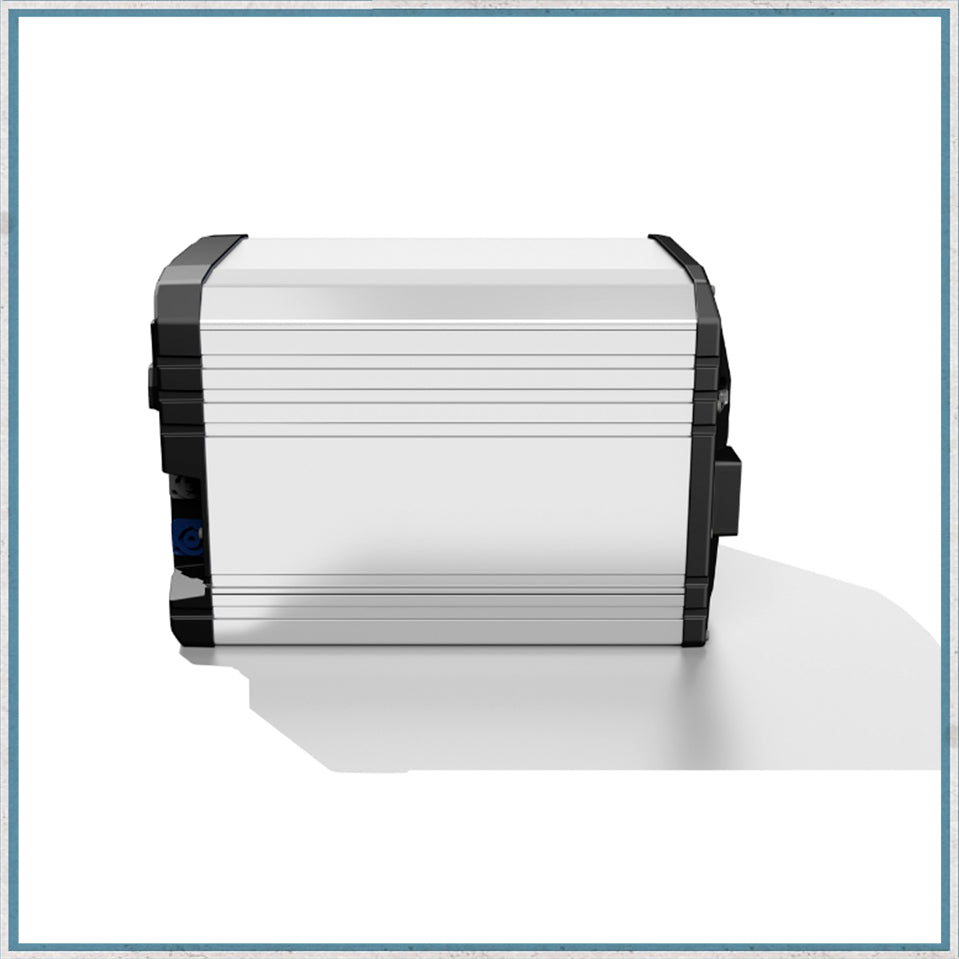

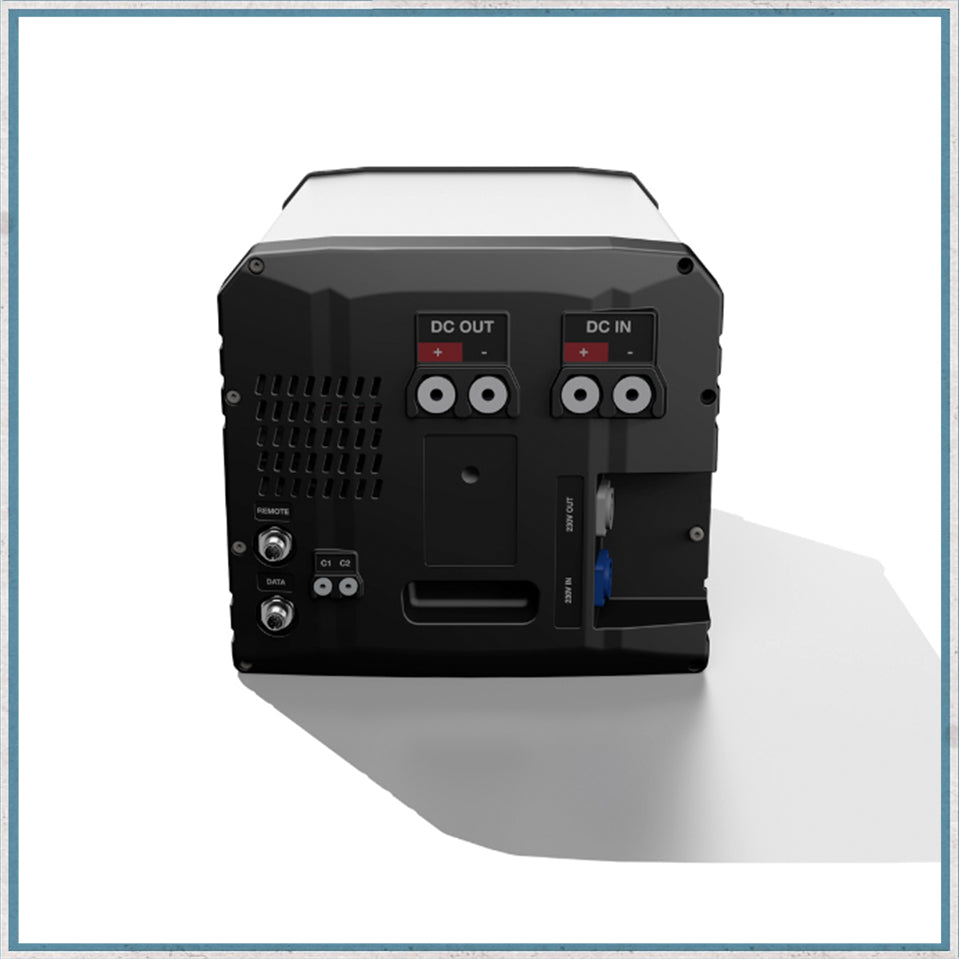

Clayton Power LPS II 2500 1kWh 240v and 12v Lithium Battery Generator

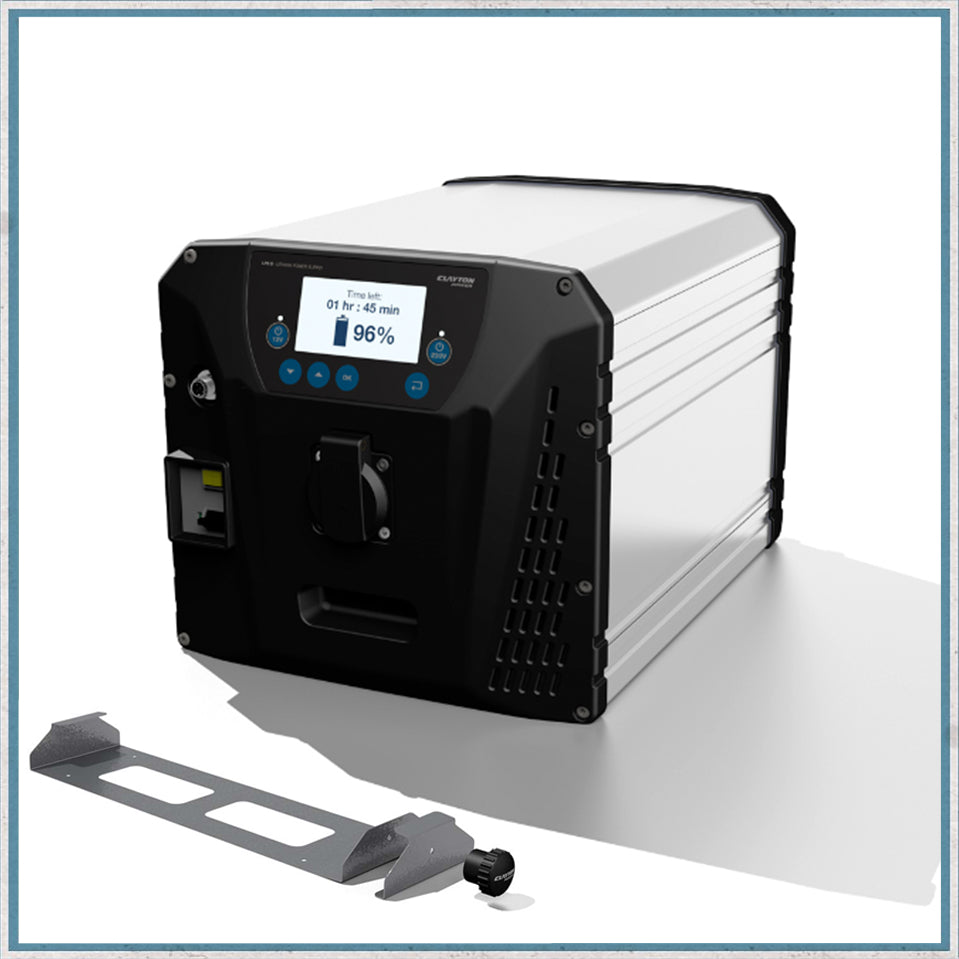

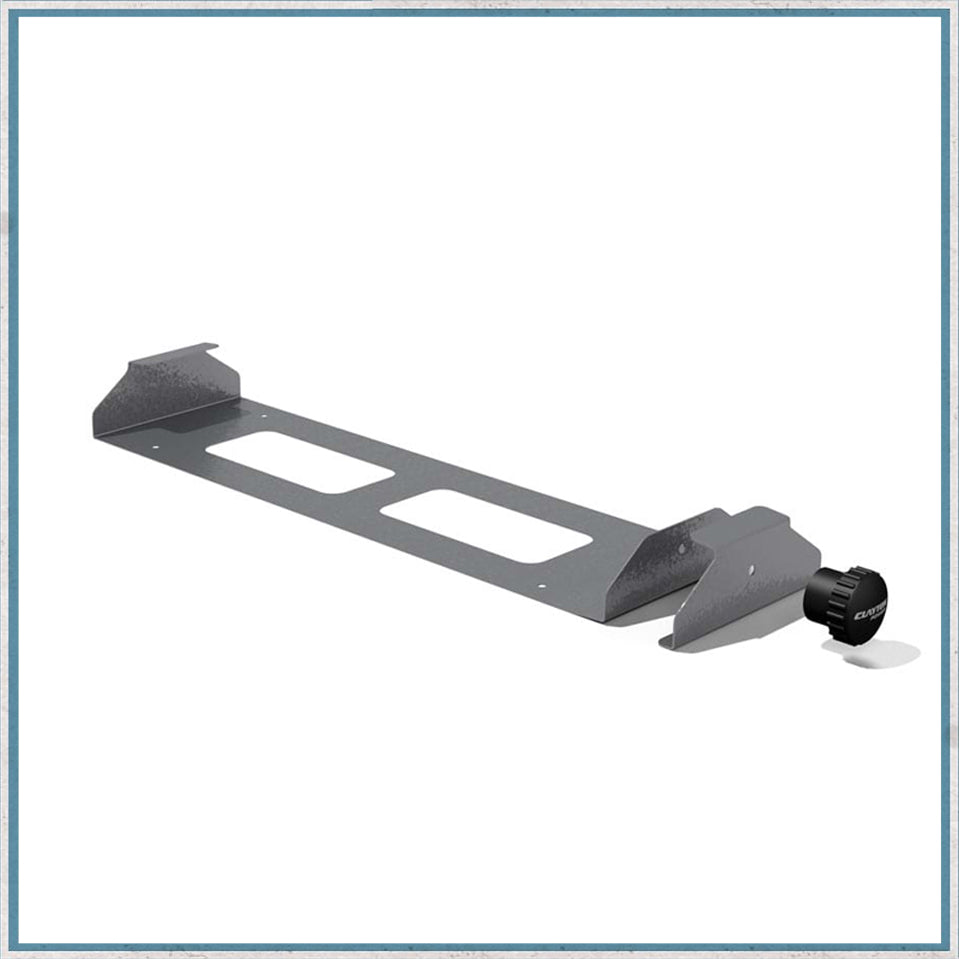

CLAYTON-LPS-II-2500-1kWh-with-mounting-bracket
The LPS II from Clayton Power offers a compact solution to leisure vehicle electrics.
It is equipped with an integrated 1 kWh Lithium Ion Battery, a 2500 W - 230 V/50 Hz Sine Wave Inverter, and various features including a Booster, Solar regulator, Intelligent Charger, relays, display, and start aid function.
The 2kWh LPS can be charged via an alternator, solar panels or direct from a mains source and can charge from 0-80% in about 60 minutes from DC and mains. Using the supercharger direct from the alternator can achieve 0-80% in just half an hour. All sources can be used simultaneously for a faster charge.
The battery can handle 2000 cycles – which is usually equivalent to 10 years of use.
Specification:
| SKU No. | CL2002 | |
| Battery type | Li-Ion 12V – 100Ah | |
| Battery chemistry | LiFePO4 | |
| Battery capacity | 100Ah (1320Wh) | |
| Battery available capacity | 80Ah (1050Wh) | |
| AC Input voltage | 207 VAC – 253 VAC | |
| AC input frequency | 45 Hz – 65 Hz | |
| AC Input power (Charge power) | 720 W | |
| AC Output voltage +- 10% | 230 VAC pure sine wave | |
| AC Output frequency | 50 Hz | |
| AC output power – Continuously (ambient temp) | 2300 W | |
| AC output power - 10 min. | 2500 W | |
| AC output power - Peak | 4000 W | |
| AC output power - AC In connected | 3000 W | |
| AC output efficiency (1000W) | 94% | |
| DC Input voltage | 11,5 - 32 VDC | |
| DC input current | 45 A | |
| DC input current with 1 external converter (efficiency) | 90 A | |
| DC output voltage | 10-14,4 VDC | |
| DC output charge current – Continuously | 90A | |
| DC output discharge current – Continuously | 180A | |
| DC output discharge current – 1 min. | 270A | |
| Solar input charging power (max.) | 400W | |
| Solar input voltage | 15 – 50 VDC | |
| Solar input charging current (max.) | 15 A | |
| Input signals (5) | C1, C2, M12 x 3 | |
| Output signals (4) | C2 & M12 x 3 | |
| Self-discharge rate per month | < 5% | |
| Self consumption - Operating mode, Only DC Output active | < 1 W | |
| Self consumption - Operating mode, inverter and DC Output in with > 50W | 30 W | |
| Connection 230VAC | Neutrik and Schuko | |
| Connection C1 / C2 | M4 | |
| Connection DC input | M8 | |
| Connection DC output | M8 | |
| Cooling | Forced air (fan) | |
| Operating temperature (output will be limited below 0°C and ab) | -20°C~50°C | |
| IP rating | IP21 | |
| Product weight | 23,5 kg | |
| Product dimensions (HxWxL) | 256x277x409mm | |
| Jumpstart | 40 A / 5 min |
