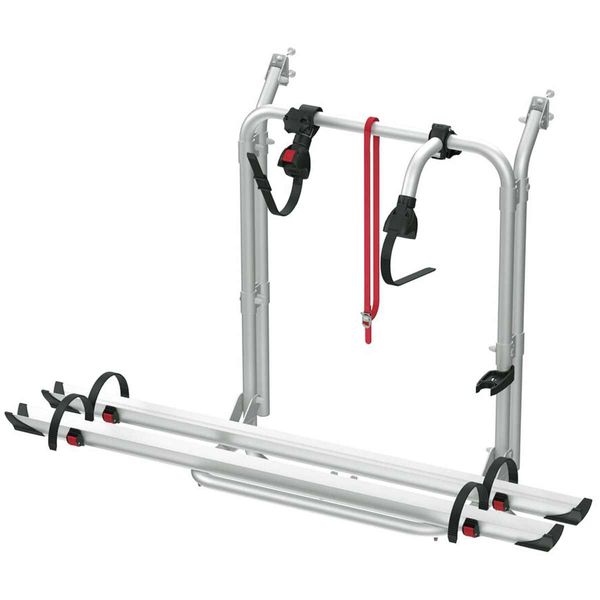

Fiamma Carry-Bike 200 D (02096-16-)

Fiamma bike carrier designed for installation on van conversions with double rear doors. Wheelbase variable from 58 to 62cm to adapt to different rear doors. Upper wall installation brackets only 34mm wide.

This Carry-Bike carries two standard bikes and is suitable for:
- Fiat Ducato I series / Citroen C25 / Peugeot J5 (≥1981 ≤1994 - H1/H2)
- Fiat Ducato II series / Peugeot Boxer I series / Citroen Jumper I series (≥1994 ≤1999 - H2)
- Ford Transit MK3-MK4-MK5-MK6-MK7 with double rear door (≥1987 ≤2014 - H1/H2/H3)
- Ford Transit MK8 with double rear door (≥2014 - H3)

Supplied with:
- 2 x Rail Quick Pro (Bike rails)
- Bike-Block Pro 1 (Bike locking system)
- Bike-Block Pro 2 (Bike locking system)
- Security strip
- Brackets

Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 2
- Max load: 35kg
- E-Bike: No
- Position: Rear double door

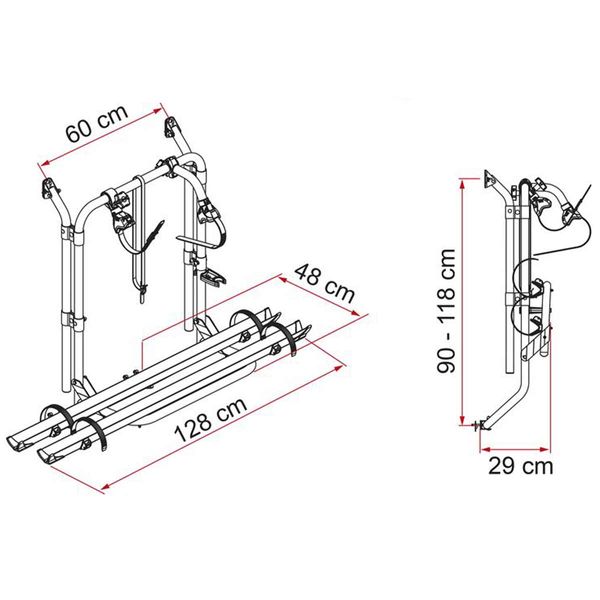

- Vertical wheelbase: 90 to 118cm
- Horizontal wheelbase (distance between brackets): 60cm
- Dimensions: 128 x 48 x 90cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 6.9kg
- Distance between rails: 15cm
- Licence Plate Carrier: Supplied separately
