Fiamma F45S VW T5/T6 Awning Bracket 98655648

Fiamma F45S VW T5 Awning Bracket 98655648

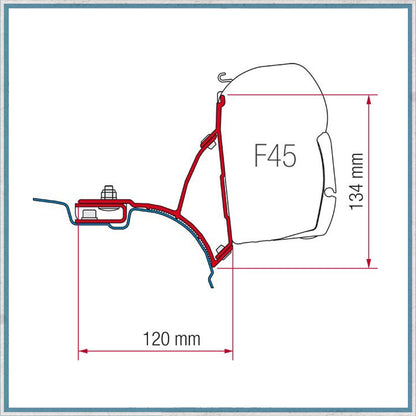

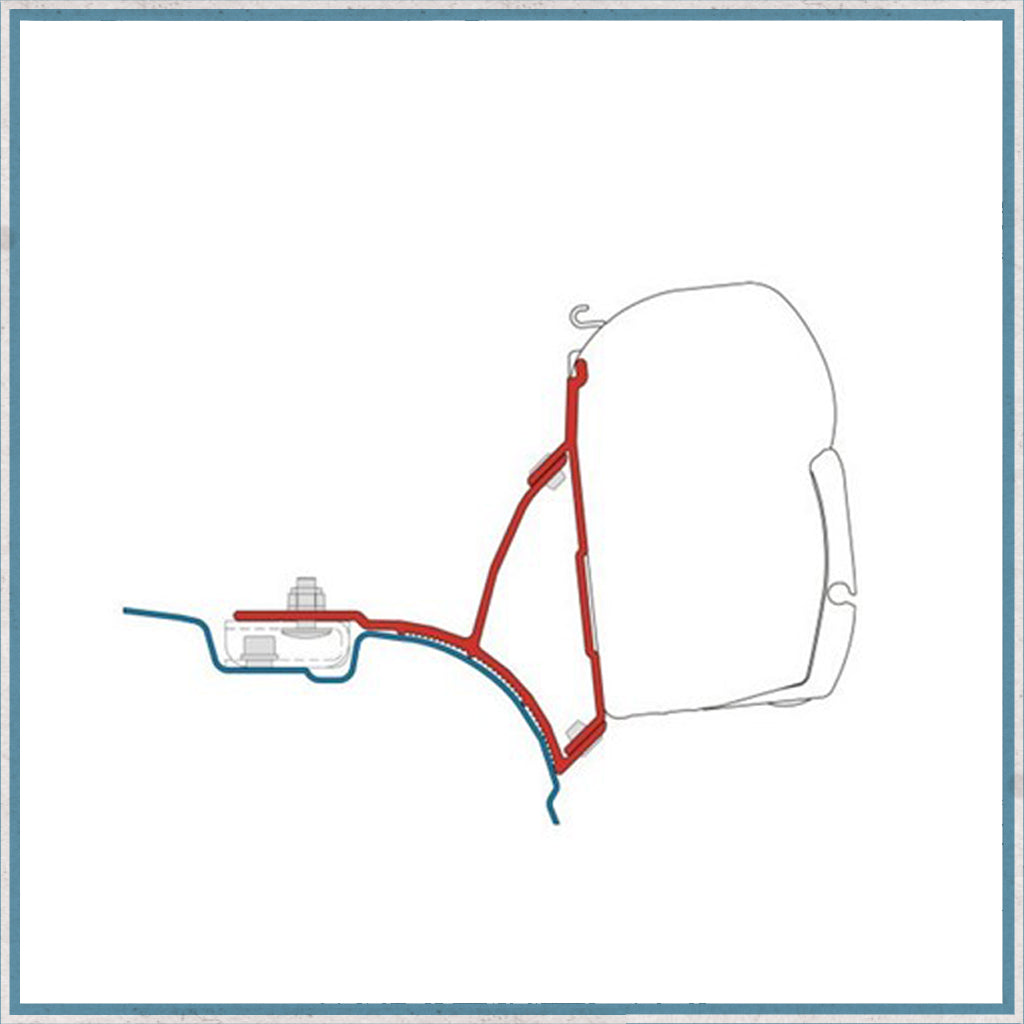

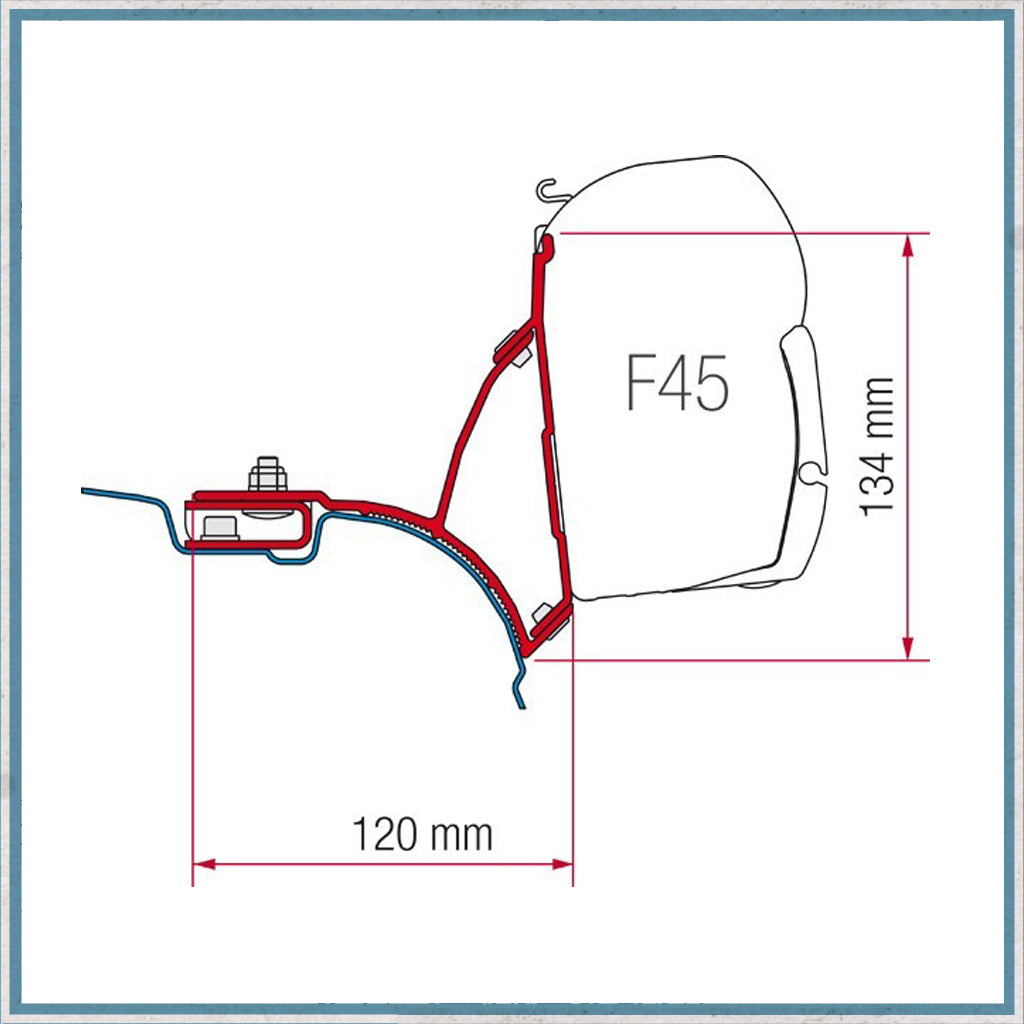

This fitting kit is for use with your F45s Awning for (VW T5 and T6 RHD) vehicles that are not fitted with a factory or aftermarket awning rail, or the factory fitted C channel in the roof.

If you have a raising roof (pop top) on your T5/T6 you are also likely to need these brackets instead of the standard brackets that come in the dedicated T5/T6 kit that Fiamma offer.

Most pop top hinges are mounted in the roof channel where the rear awning brackets are fitted. The rear bracket on this kit will sit further along the channel in front of the scissor hinge. You may need to drill a hole in your awning casing to line up with the rear bracket, as it will sit further forward than originally designed for vans without a pop top roof.

No drilling of the vehicle is required with these brackets.

Please note: due to the range of pop top manufacturers, it is not guaranteed that the roof will clear these brackets on your setup, please check with your roof manufacturer to get their advice before ordering.
