Low Profile LED Aluminium Lighting Channel Kit

Low Profile LED Aluminium Lighting Channel Kit


Low Profile LED Aluminium Lighting Channel Kit

These Low Profile Anodised Aluminium Channels are designed to give a professional way of mounting LED strip lights into a Camper Van, Motorhome or Caravan.

The channel is supplied as a kit of parts to accept a length of LED Strip lighting (sold separately)

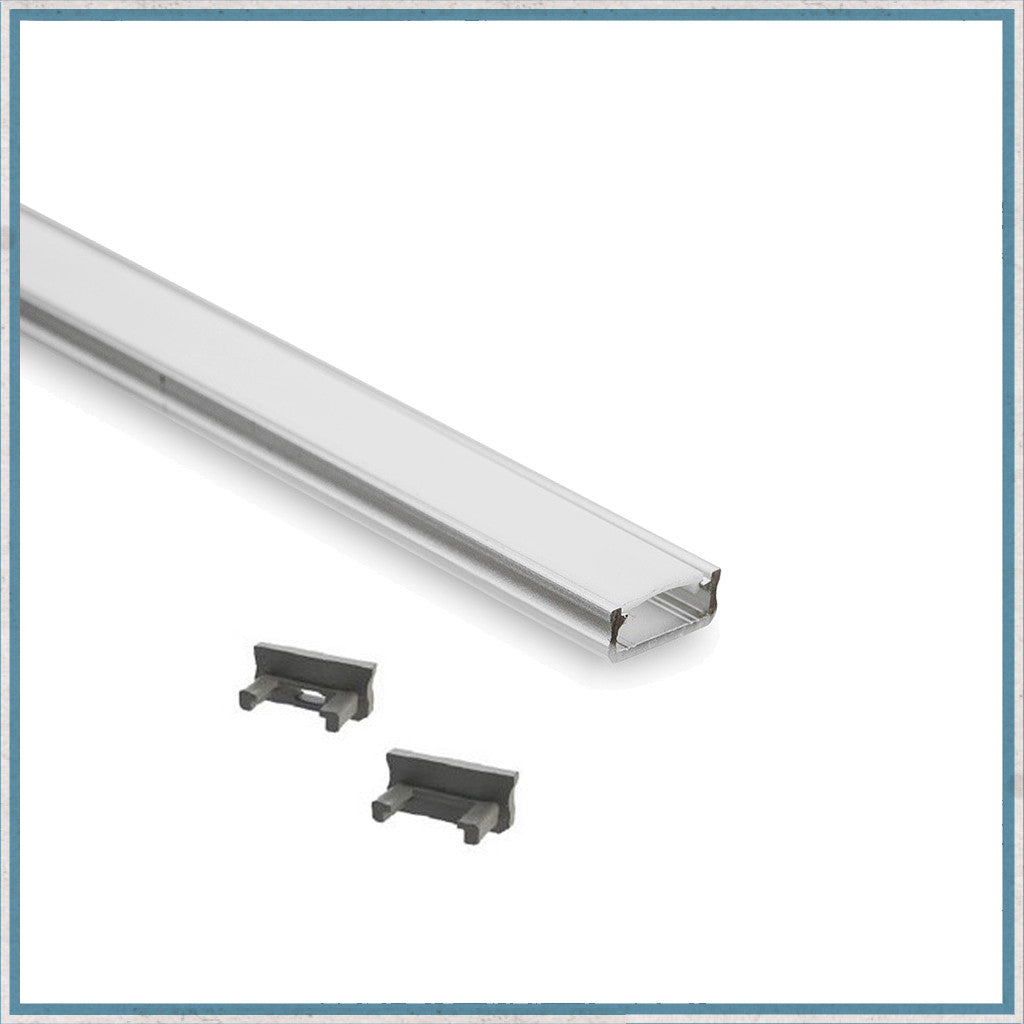

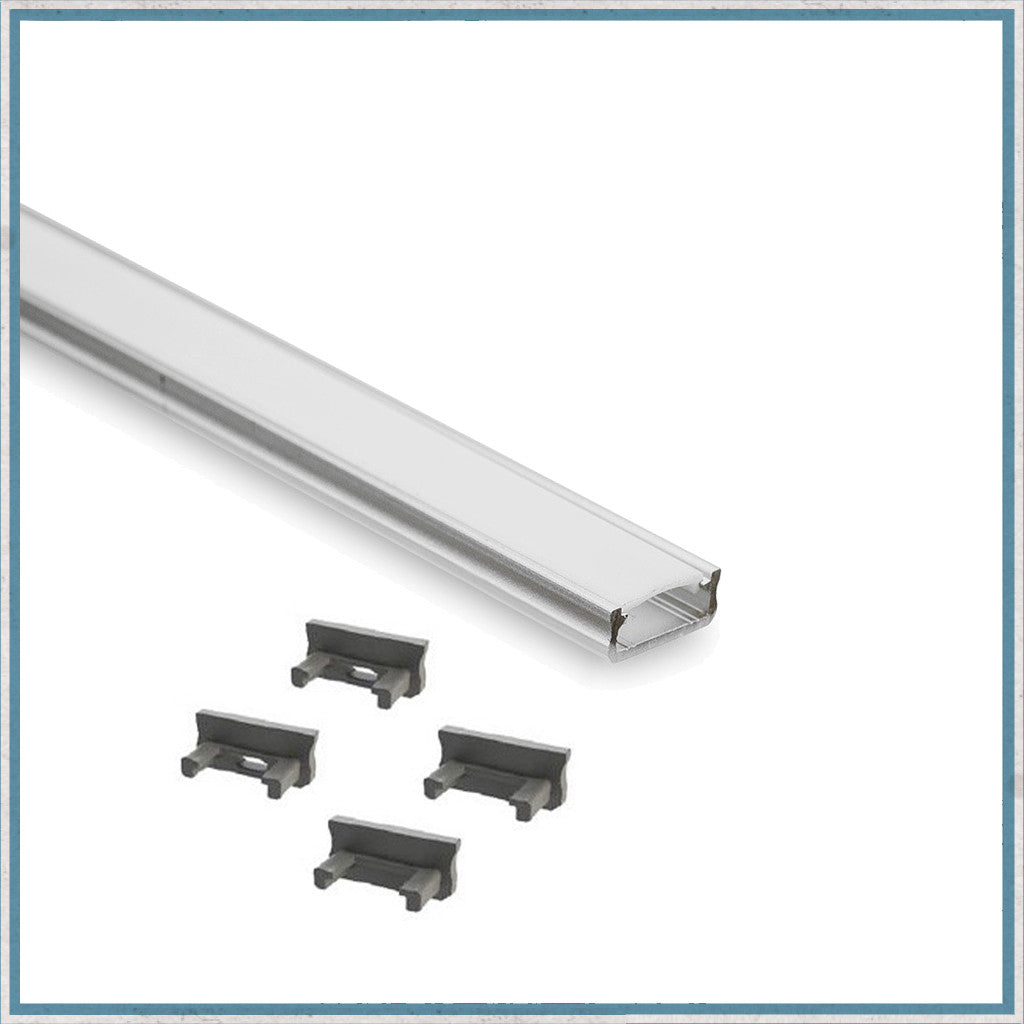

Each kit includes a length of Channel and a Diffuser together with either 2 end caps with the 1 metre kit and 4 end caps with the 4 metre kit. Additional pairs of end caps can be bought separately if you want to make 2 or more shorter complete units from your chosen kit.

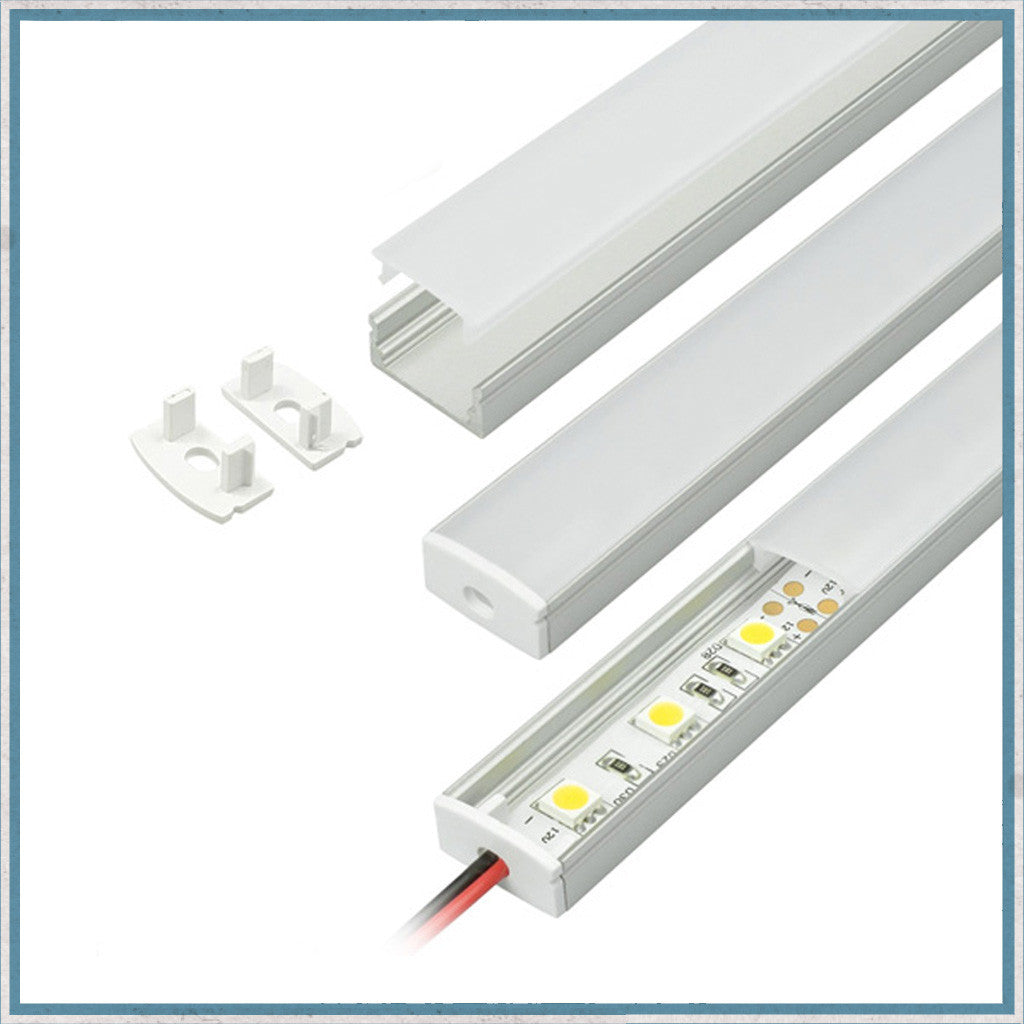

The aluminium housing and its plastic diffuser can simply be cut to size, depending on what length of lighting you need. This can be screwed directly onto a flat surface, by drilling holes in the back of the channel, or by using mounting brackets which can be purchased separately. Your length of LED strip is attached using it's double sided tape, the power cable is passed through the end cap, the caps and diffuser can then be pushed into place.

The channel also acts as a heat sink for the LED tape as well, which in turn will increase the LEDs lifetime as well as slowing down any brightness degradation over time.

Available with a frosted diffuser which helps diffuse the light from each LED in a much more uniform pattern and also prevents any glare or secondary refraction from occurring.

This product is made from fully anodized aluminium and is corrosion proof; meaning its ideal for using outdoors as well as indoors.


Kit Specification

Channel profile size: 17mm x 8mm

1 length of aluminium channel

1 length of Frosted Diffuser

2 End caps per metre length

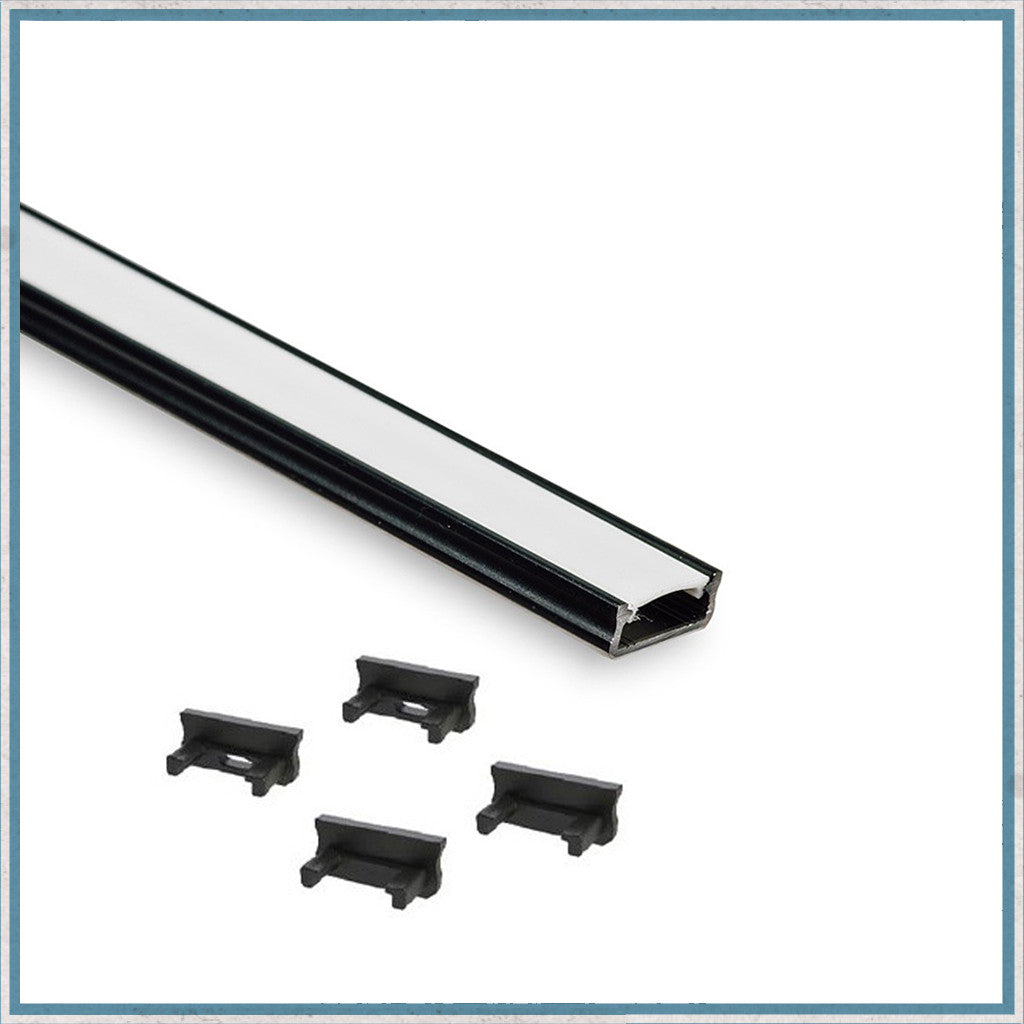

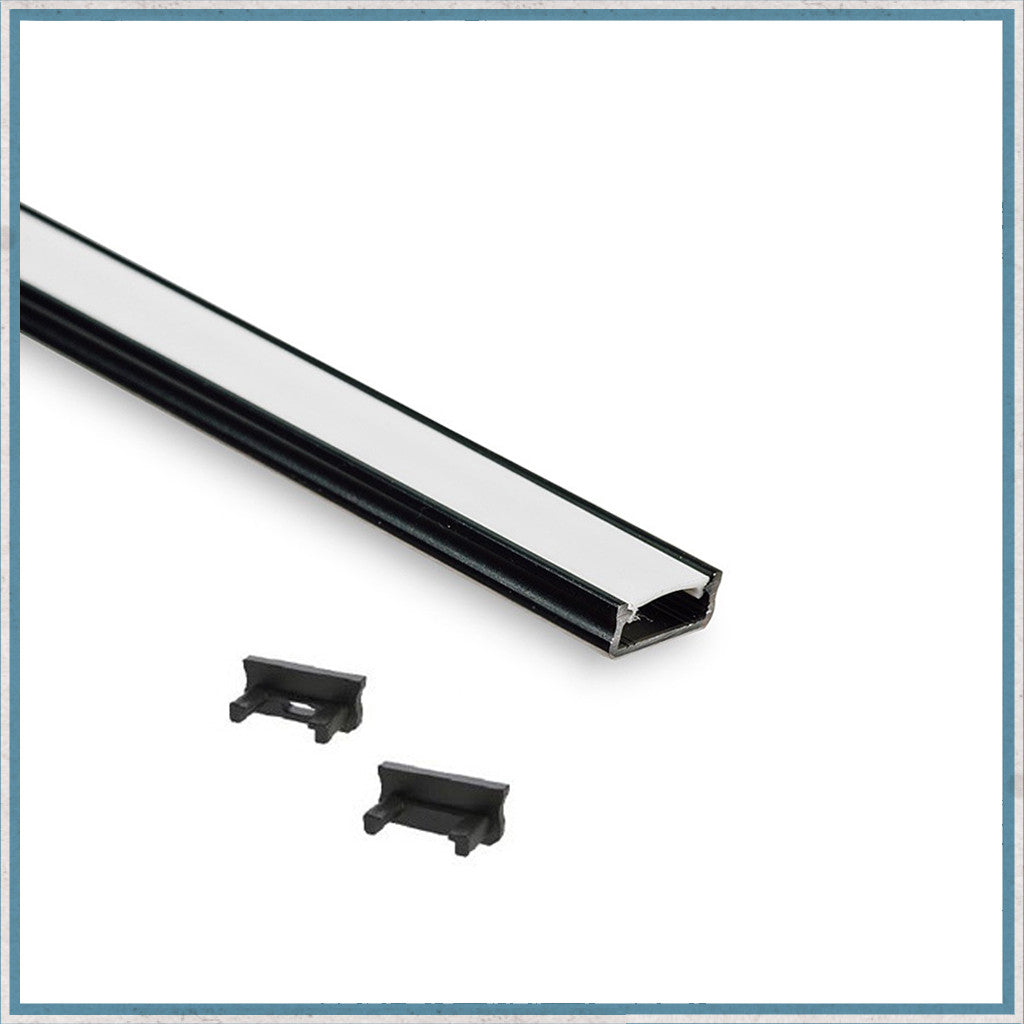

Can be purchased in Silver, white or black in either 1 metre or 2 metre lengths

See also our Small Profile, Recessed and Corner Kits.

Note: This kit does not include any LED tape.

Please see our range of LED Tapes here.
