NDS 175W Aero Solar Panel
NDS-SOLAR-175W-AERO
NDS 175W Aero Solar Panel

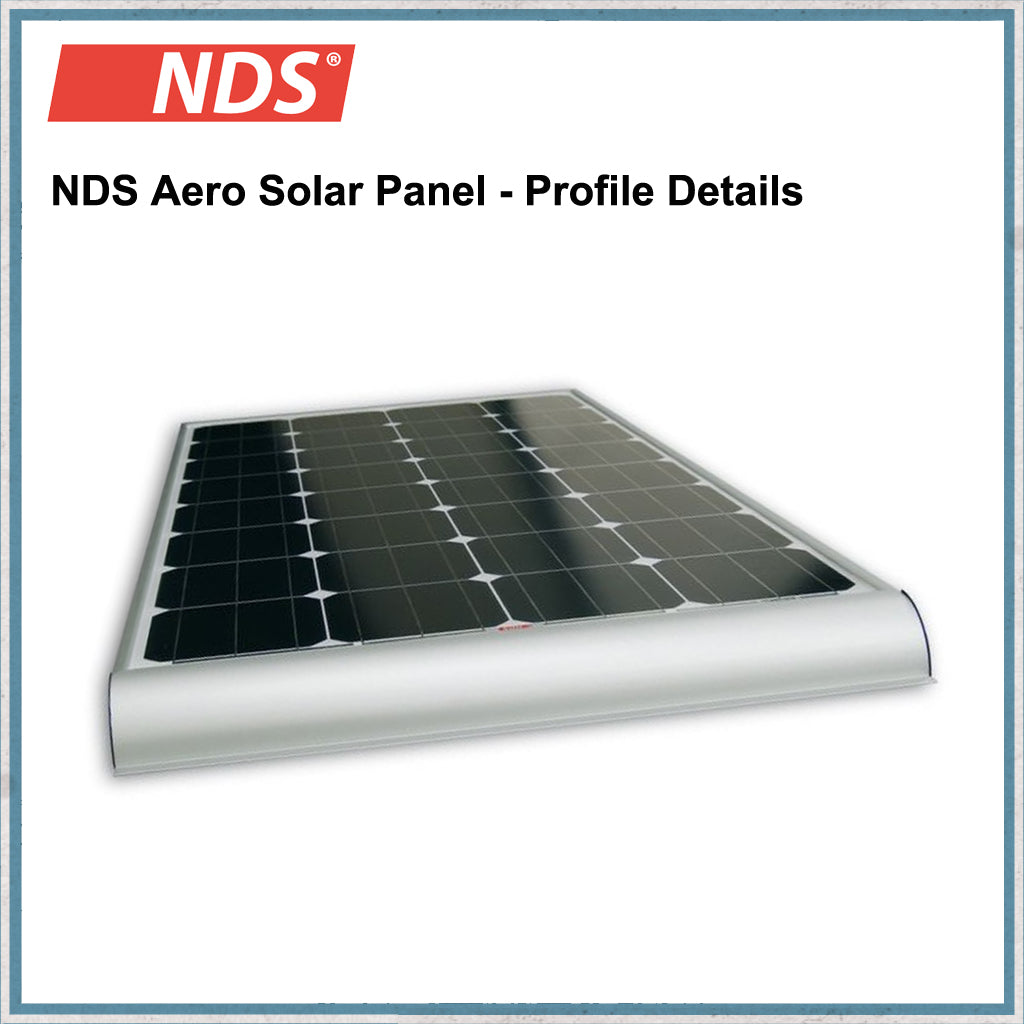

NDS AERO solar panels have aerodynamic front and rear frame rails, They're made to very high standards for NDS in Italy using the latest Grade “A” monocrystalline cells for maximum efficiency and reliability.

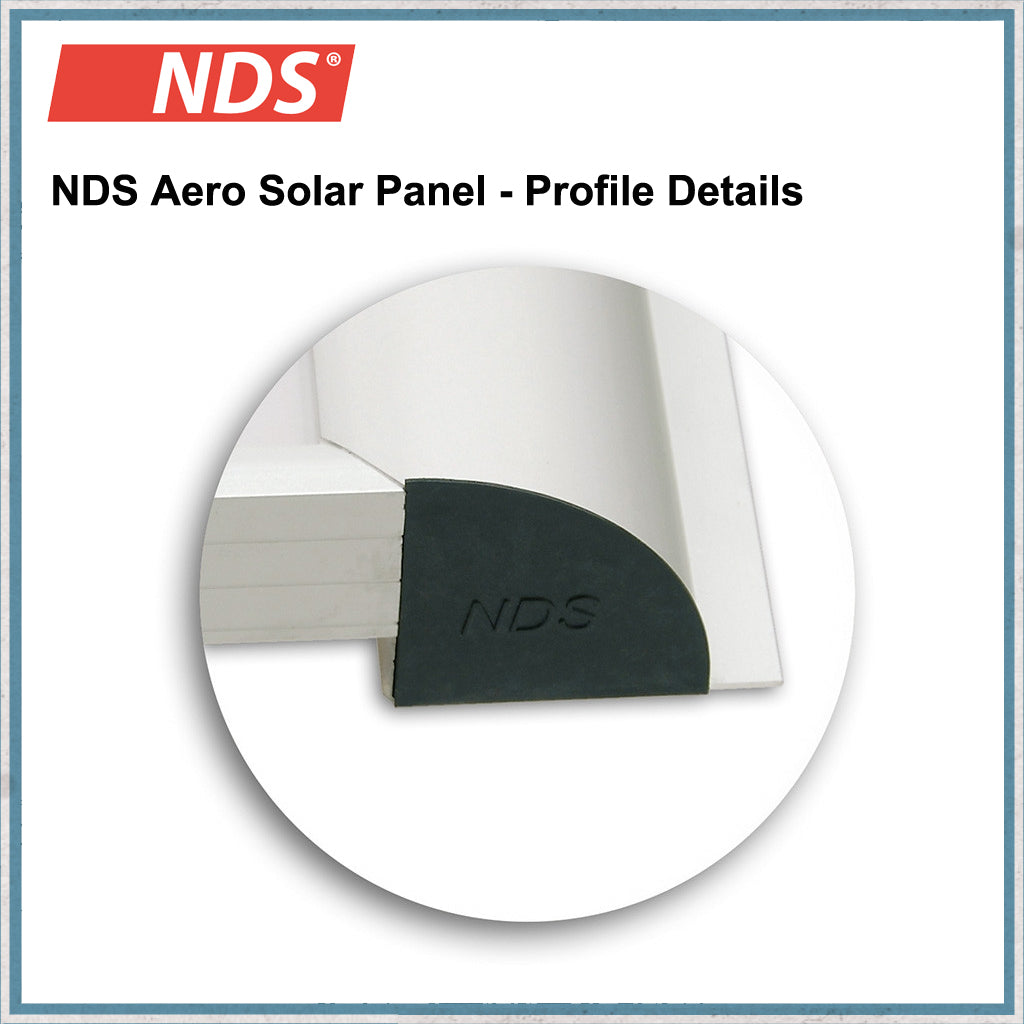

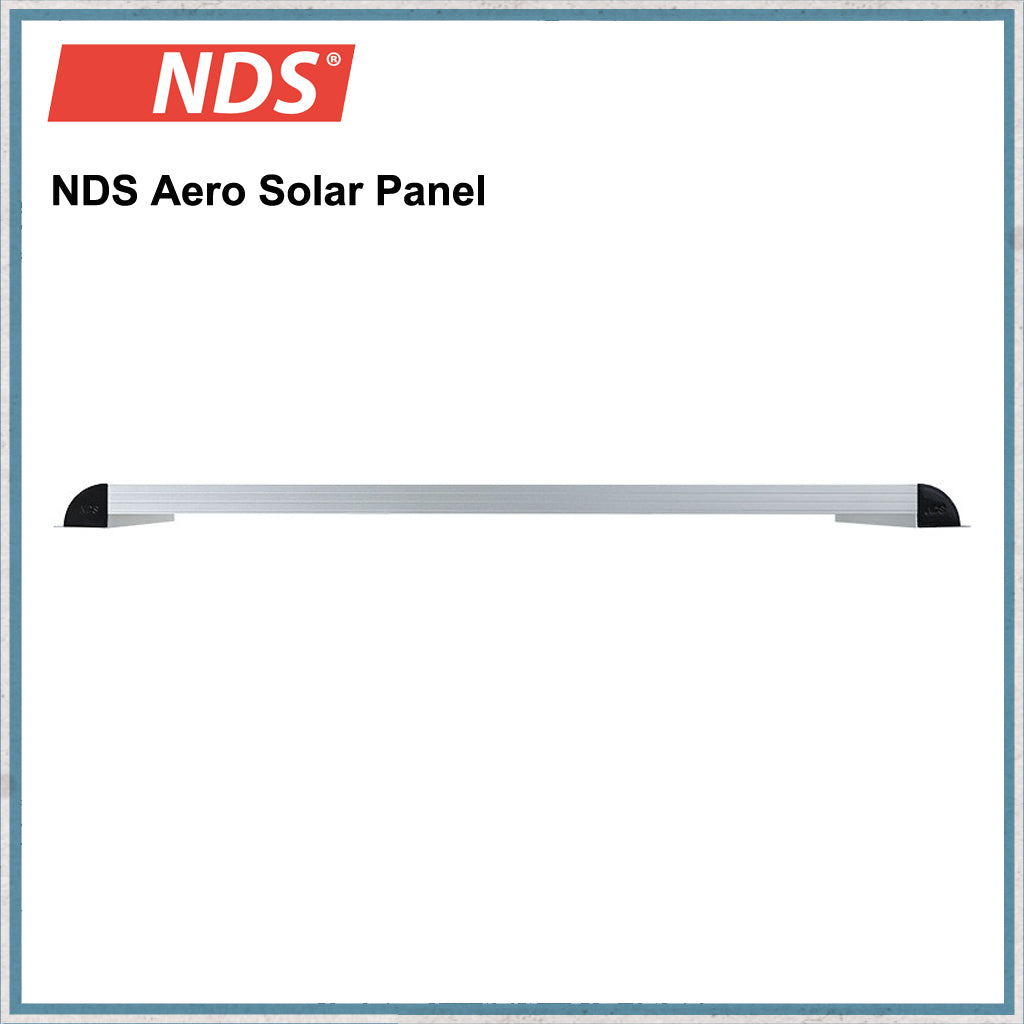

The panels are built into aluminium frames with aerodynamic aluminium mounting bars – “Aero mounts” - which not only look good but make installing the panel easy and quick.
Bypass diodes are built in which help to protect the panel against damage and minimize power loss due to shading.
Panels come with 6 metres of twin-core cable which, again, helps to make installation easier and they’re available in the following power ratings:
Specification for the 175W Aero Solar Panel
| PRODUCT CODE: | NDS-SOLAR-175W-AERO |
|---|---|
| Certification: | IEC61215, IEC61730 safety standards compliant and ISO9001/ISO14000 Certification |
| Manufacturer's product code: | PSM175WP |
| MANUFACTURER: | NDS |
| Nominal output - DC Volts: | 12 |
| Cell type: | Monocrystalline |
| Number of cells: | 36 |
| Open circuit voltage - V : | 23.67 |
| Maximum power output - Watts: | 175 |
| Current at peak power - Amps: | 8.95 |
| Voltage at peak power - Volts: | 19.56 |
| Dimensions L x W x H - mm: | 1625 x 676 x 60 |
| Regulator included: | No |
| Cable included - Metres: | 6M - twin cable |
| Mounting method: | Integrated mounting brackets |
| OK to walk on: | No |
| Note: | Monocrystalline silicon cells protected by a Tedlar Sheet and highly transparent tempered and textured glass |
| Nett weight - kg: | 14.5 |
| Warranty - years: | 3 |
