Princess Flush Door Catches
These new Princess catches are a flush self locking door catch designed for campervan and motorhome conversions. They are an alternative to the popular Evo Design catches.
These are not plated like the Evo catches, but instead the bodies are injection moulded in each of the colours.

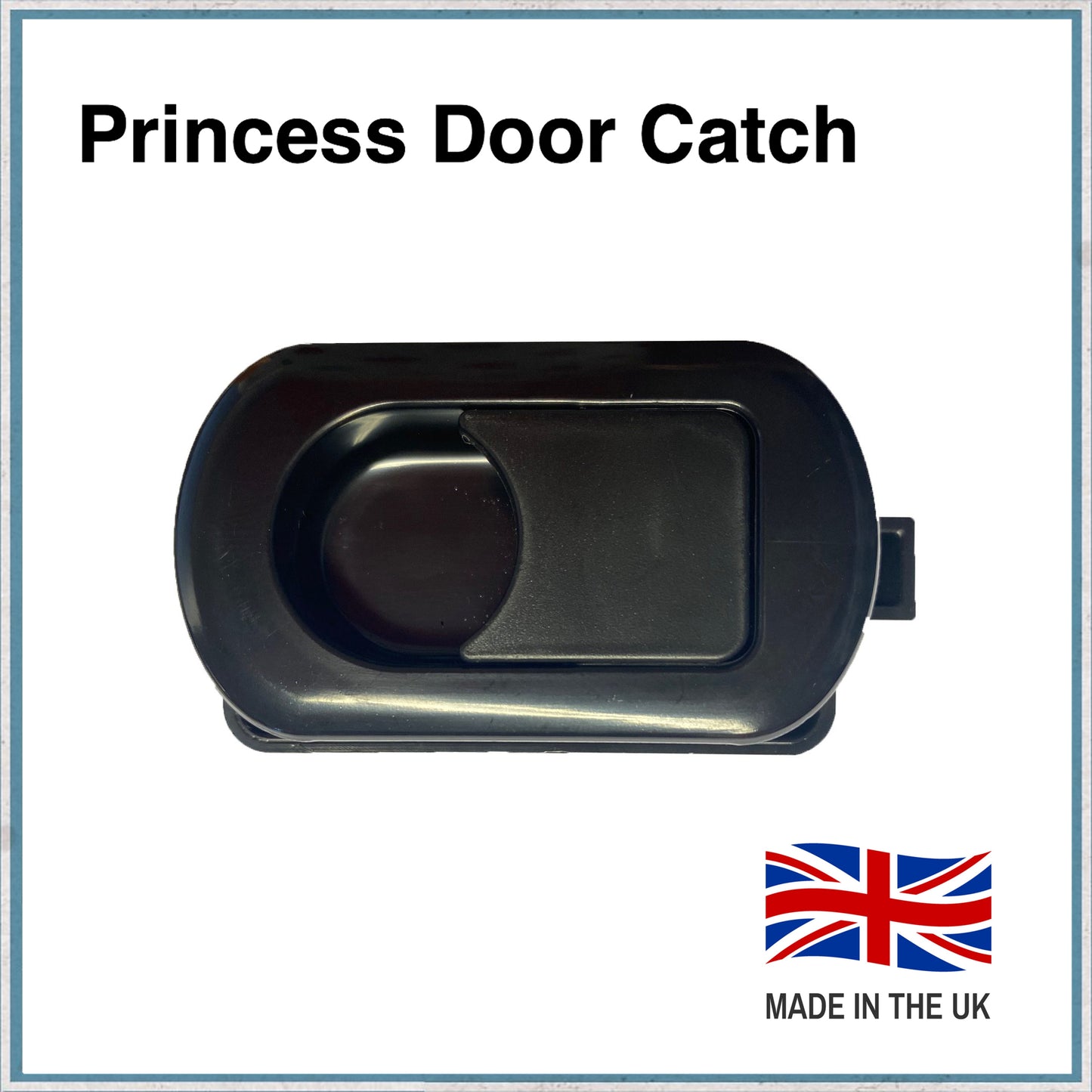

There are four colour options, all with a black lever:
Gun metal and black

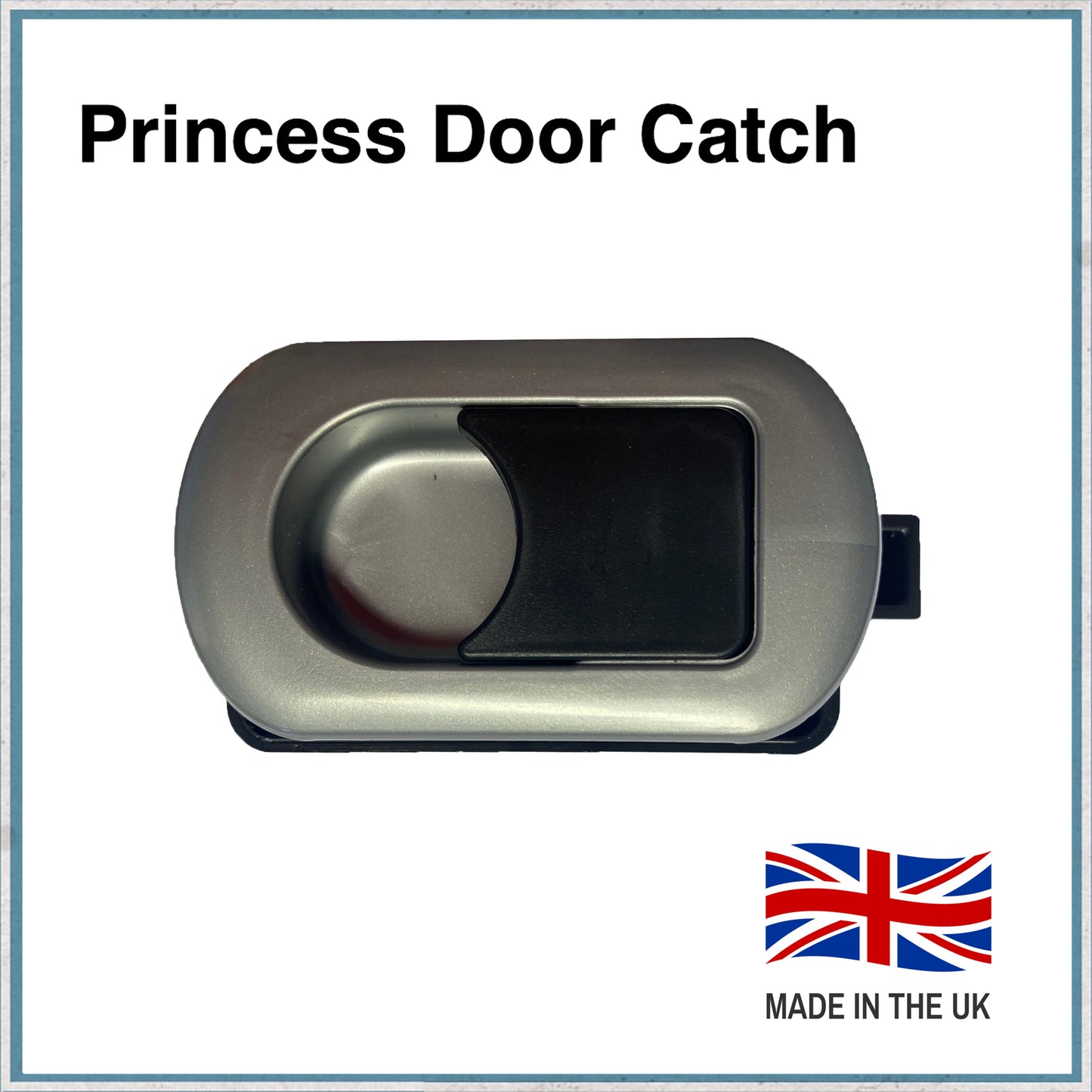

Silver and black

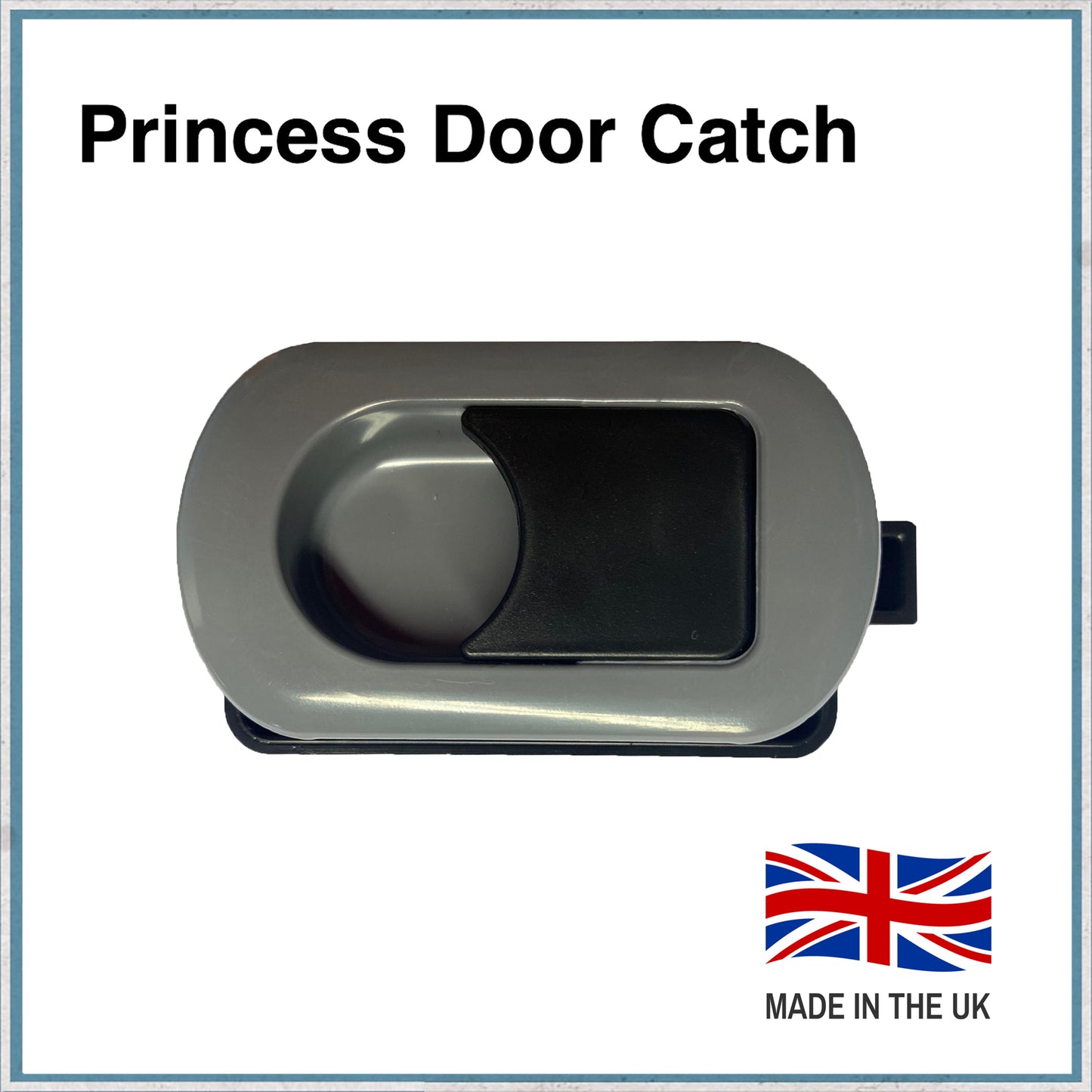

Mid Grey and black
Suitable for panel thickness of 12 mm - 18 mm.
Lock Front : 63 x 35 mm

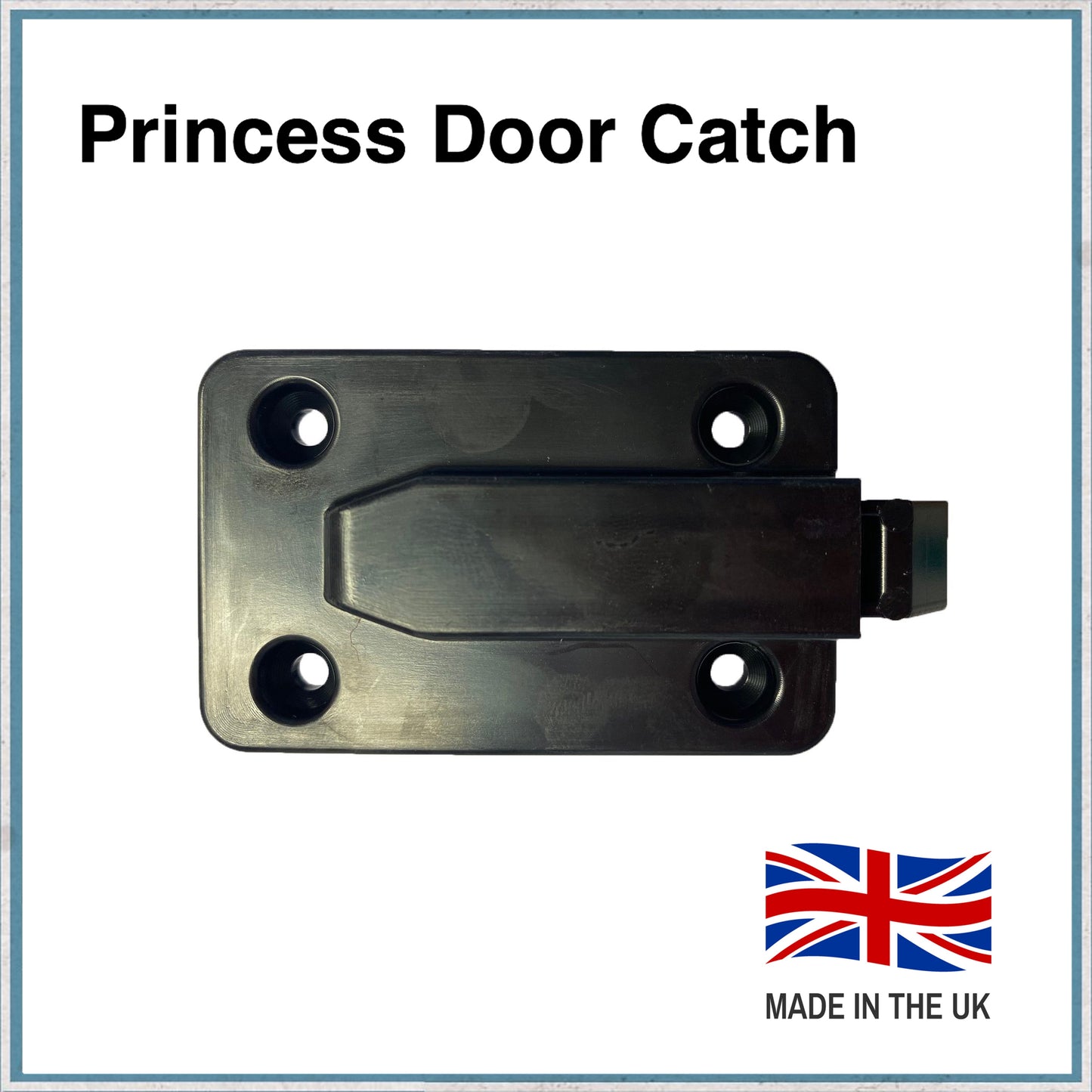

Rear Lock Housing : 62 x 39 mm

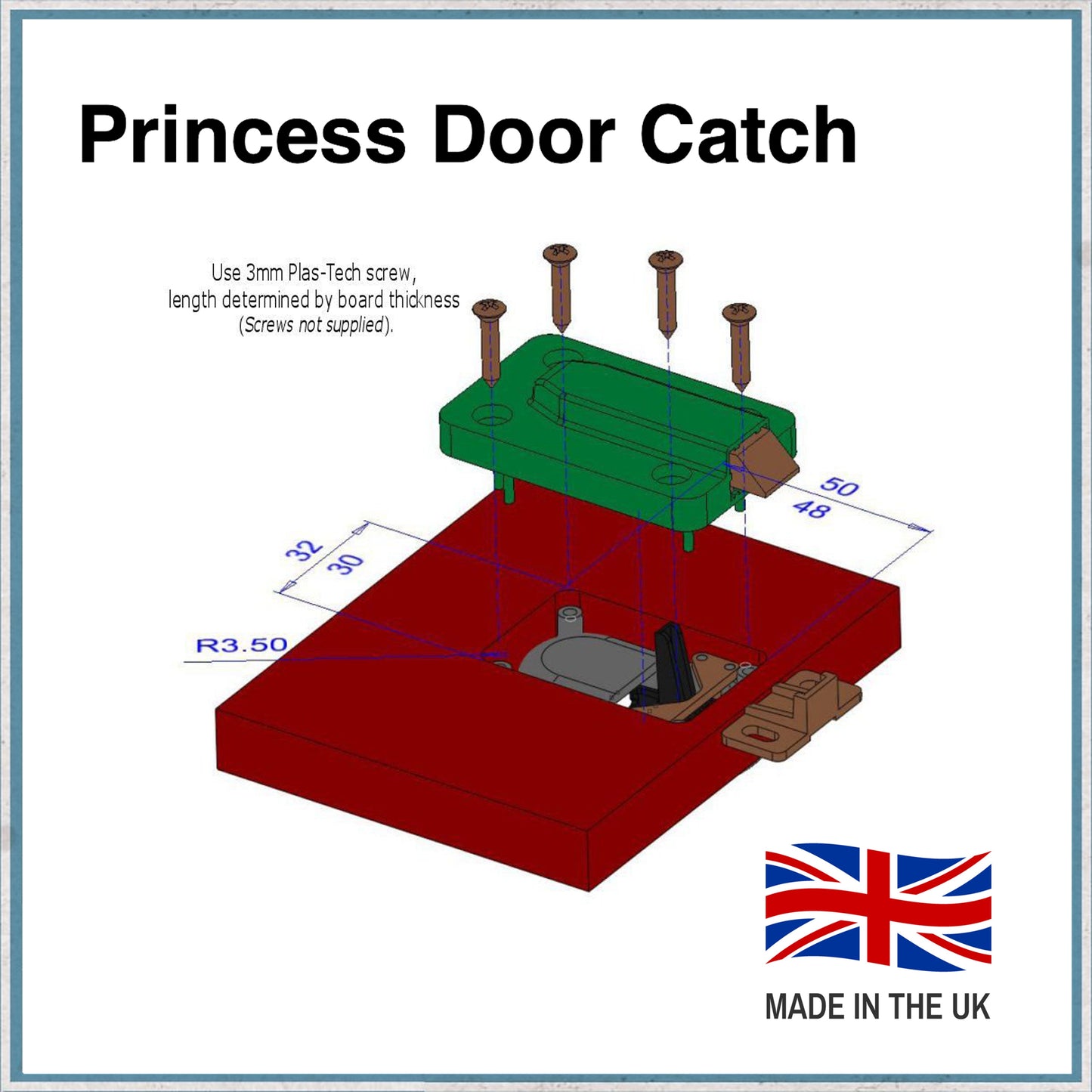

Use 3 mm Plas_Tech screws, (not included), length determined by board thickness
– use 3.5 x 12mm screws when mounting to 12mm ply
– use 3.5 x 15mm screws when mounting to 15mm ply
– use 3.5 x 18mm screws when mounting to 18mm ply
Note: To prevent the latch from sticking do not over tighten screws on the back plate.
This product is manufactured in the UK.
