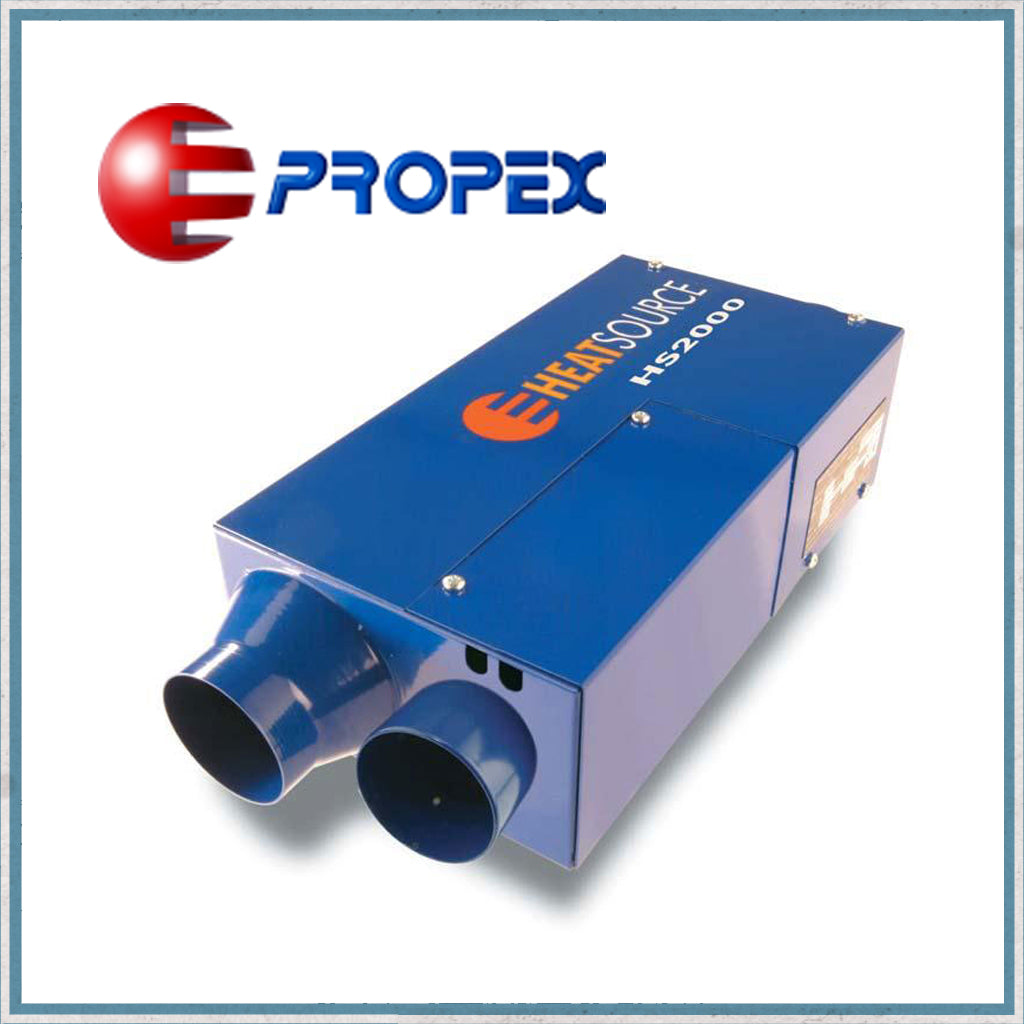

Propex HS2000 Hot Air Heater
The HS2000 heaters are automatic thermostatically controlled blown air heating systems fuelled by propane or butane gas. Heatsource blown air systems are used in many applications throughout the world, these include Motorhomes, Caravans, Boats, Cranes, Horseboxes, Mobile Workshops etc.
There is also a dual-fuelled gas and 240v electric powered heater, the HS2000E available.

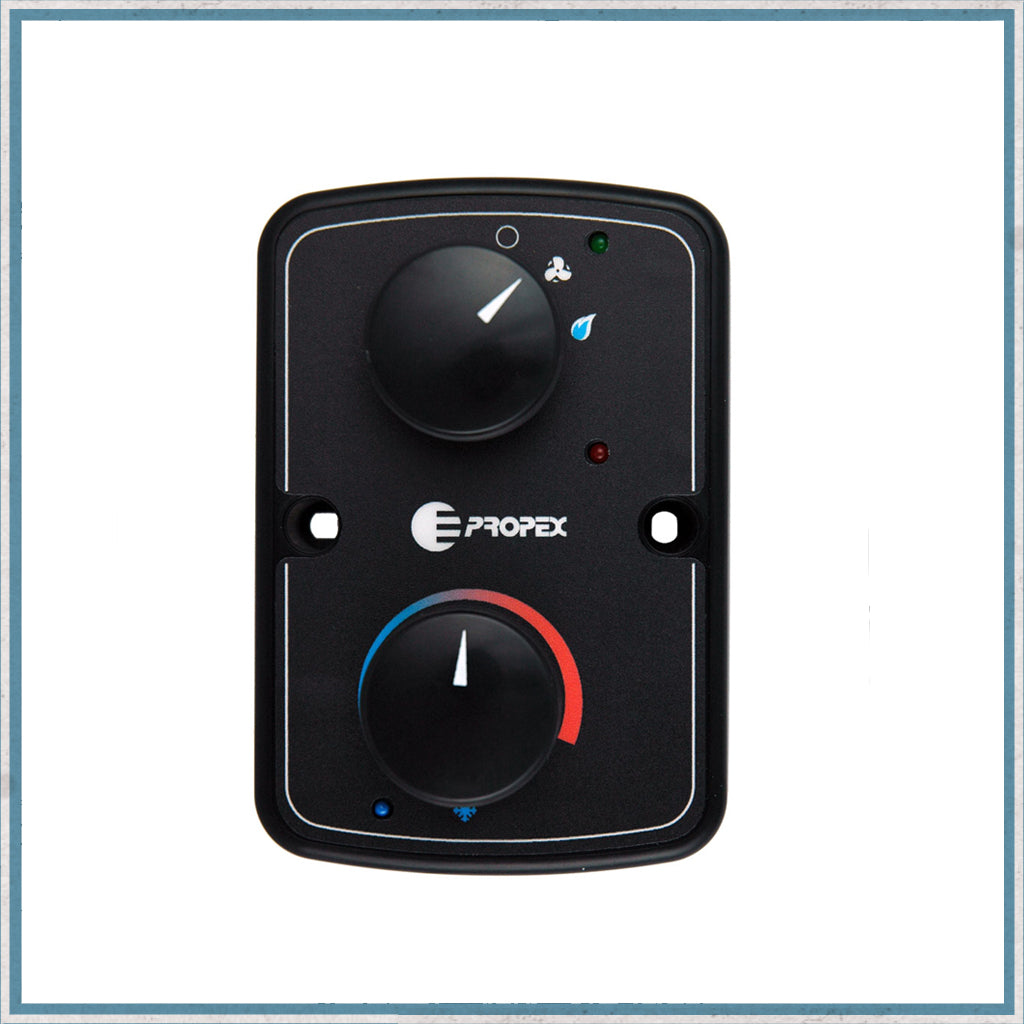

The HS20000 is supplied as standard with a solid state electronic thermostat which automatically switches the unit on and off to maintain the desired temperature. When the room temperature drops below the selected level, the Heatsource will automatically ignite and run until the cabin reaches the selected temperature. The thermostat is an easy to fit surface mount design and integrates with the new electronics fitted to the HS2000 and HS2800 heaters. An easy to operate panel mounted digital timer/thermostat specifically designed for Heatsource, is also available. Unlike some heaters, there is minimal electric current consumption during ignition so cycling the Heatsource on and off does not have the effect of additional battery drain.
With forced air combustion and the Propex two stage stainless steel heat-exchanger, the HS2000 is a clean and highly efficient way to heat your vehicle or boat. Air for combustion is taken from outside and passed into the combustion chamber having been mixed with gas during three aeration stages, it is ignited automatically and heats up the large surface area of the heat-exchanger. The Heatsource units are totally room sealed and exhaust all products of combustion externally through the neat 22mm i.d. stainless steels flue pipe. To add to the efficiency, cabin air is normally re-circulated in preference to using cold air from outside. The HS series heaters are also very efficient on electrical current consumption, the high quality motor/fan combination and innovative current reducing electronics, both of which have been improved in the latest versions, means that even the larger HS2800 draws less than 2 amps during normal operation.
Propex heaters are designed to be quiet in operation without compromising air throughput and heat output. There will always be some air noise from a system that produces a healthy throughput of air, however, by using high quality balanced fans and smooth enclosed motors with ball race bearings, noise is kept to a minimum. Noise is also unaffected by high voltage, a common occurrence with battery charges, solar panels etc permanently wired. The micro-processor electronics regulates the motor voltage so that the fan speed does not alter from 10 to 15 volts.
Heatsource blown air heaters conform to the latest European standards for both the appliance and the electronics and during the rigorous testing the focus is very much on safety. The heaters also have to comply with an enhanced version of the Electro Mechanical Compatibility Directive to ensure they do not interfere with other electronics and that they are immune from interference by other electronics.
The intelligent electronics are continuously monitoring the operation of the heater to make sure everything is operating correctly and safely. This includes monitoring of the flame, case temperature, combustion airflow, gas solenoid valve and voltage. Should any of these stray outside of the predetermined levels, the heater will be switched off and the red light on the thermostat will indicate a fault by flashing a certain number of times.
The chart below reflects the consumption of gas if the heater was running continuously. In reality, both heaters have similar very high efficiency ratings, so the overall gas consumption will be about the same because the HS2800 will be running for a shorter period of time before the thermostat switches it off
|HS2000 Economy & Consumption|
|Average consumption||142 grams/hour|
|3.9kg propane cylinder||27.5 hours|
|4.5kg butane||31.7 hours|
|13kg propane||91.5 hours|
|15kg butane||105.6 hours|
|19kg butane||133.8 hours|
|47kg butane||331.0 hours|
|904 Camping gaz (1.81kg)||12.75 hours|
|907 Camping gaz (2.72kg)||19.0 hours|

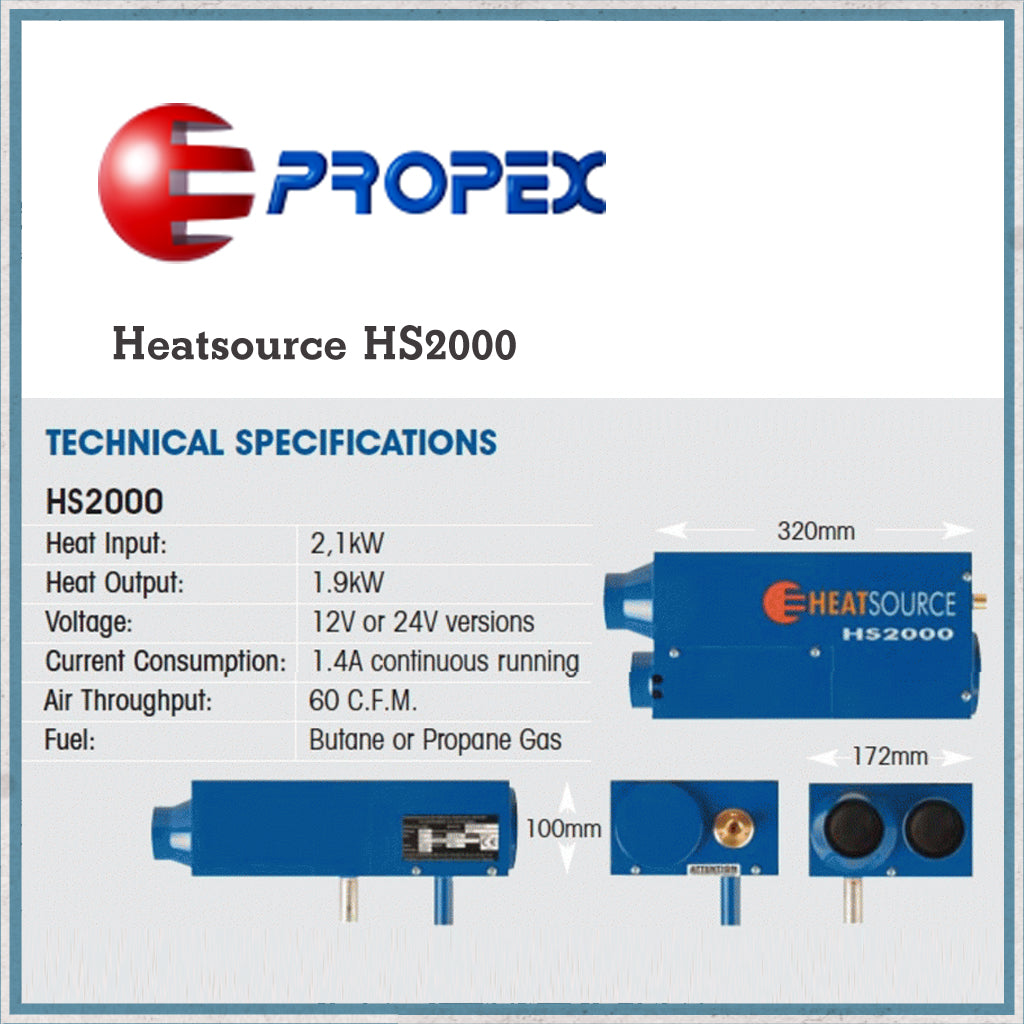

|Voltage:||12V or 24V versions|
|Current Consumption:||1.4A continuous running|
|Air Throughput:||60 C.F.M.|
|Fuel:||Butane or Propane Gas|
Dimensions (mm) L: 320, W: 172, H: 100
