Eberspacher Rectangular Directional Air Vent

Eberspacher Rectangular Directional Air Vent


Eberspacher Rectangular Directional Air Vent

High quality rectangular directional air vent available to fit 55-60mm Diameter hose size.

This vent is perfect for fitting into cabinets in a camper van, motorhome conversion, where it's oblong shape could let you fit a heating outlet where a round one may not fit with your design.

It is extremely durable which makes it perfect for air distribution in numerous other applications including other automotive, marine, agricultural etc.

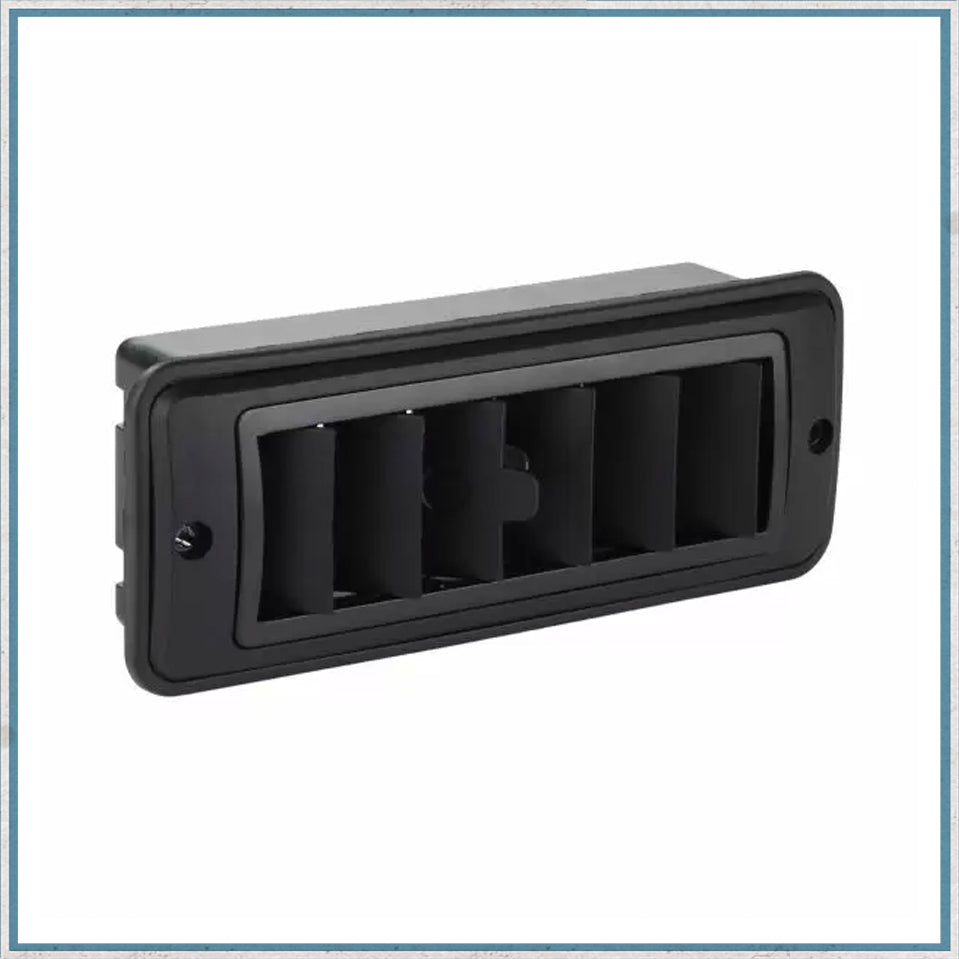

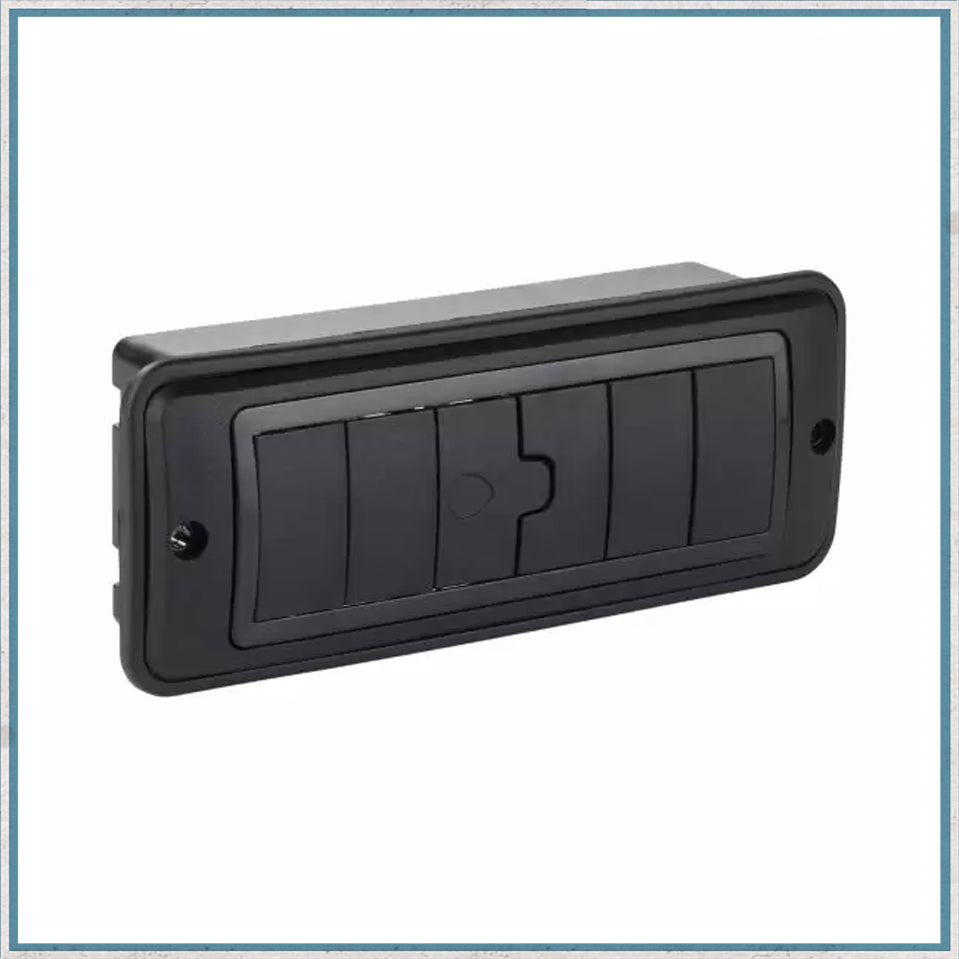

The vent louvres can be rotated up or down to direct air where needed, or can be closed off entirely to increase flow through other vents in the system.

The vents are made from a form of Nylon with an exceptionally high melting point, this makes them perfectly suited for use in diesel or gas powered heating installations from manufactures such as Autoterm, Eberspacher, Webasto and Propex.

The unit is sold with both the front and rear panel. Designed to fit 55mm diameter hose, however a 60 or 63.5mm (2.5") hose can be squeezed down to fit fairly easily.

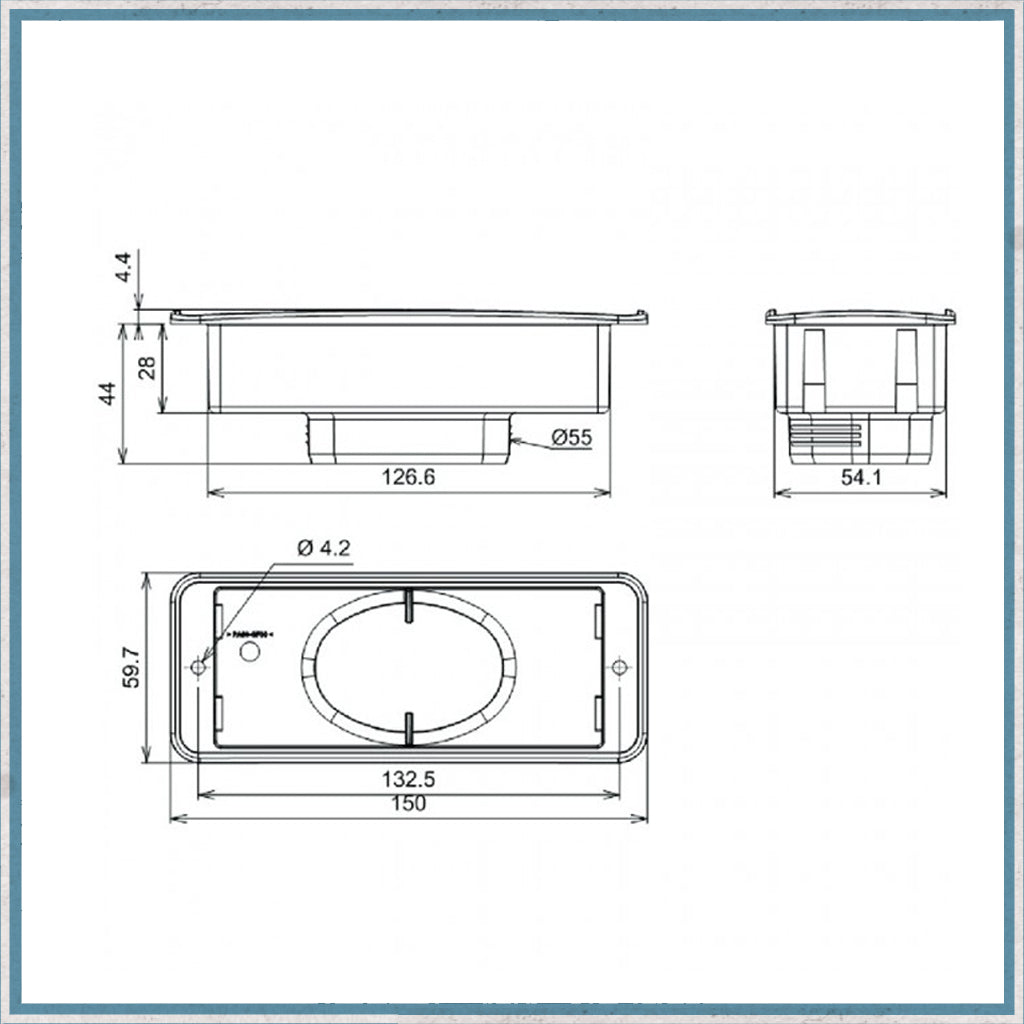

Max size of vent:               150 x 60mm
Hole size required: 127 x 54mm
To fit panel thickness: n/a
Material: PA 6.6-GF30 (Glass reinforced Nylon)
