Sargent EC160 Silver horizontal power supply unit for campervans and self-builds

Sargent EC160 Camper Van Power Supply Unit


SARGENT EC160 Camper Van Power Supply Unit

The new Sargent EC160 is a combined 240v AC and 12v DC power management unit, especially designed for Camper Van, Motorhome, Caravan conversions and is commonly used in VW Camper Van installations.

Ideal for self-builders as it simplifies the mains and 12v requirements by providing 240v circuit breakers and 12v fusing, together with the mains to 12v charger and split charge relay.



230v AC

16A input via wired 2m lead
RCD protected with reverse polarity indication
Built in 150w 13.8v fixed voltage battery charger with on/off switch
3 x 10A MCB outputs via quick fit connector blocks

12v DC

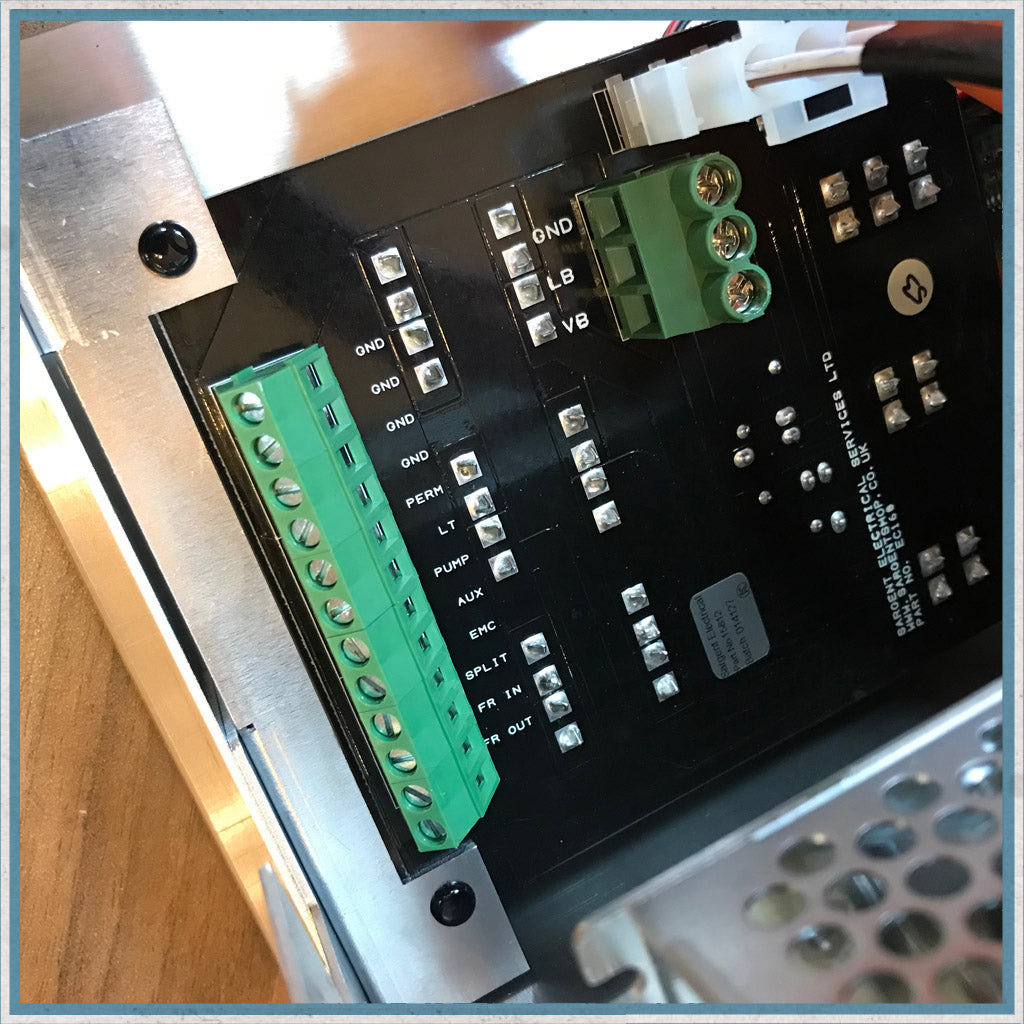

2 x 15A battery inputs via screw terminal block
5 x outputs via screw terminal black
Pump output via pump switch & 5A fuse
Lights output via lights / Aux switch & Aux 10A fuse
Permanent output via 5A fuse
Fridge output VA 15A fuse
Built in split charge relay (configurable)
Built in EMC isolation relay (configurable)
Digital voltmeter with on/off switch
