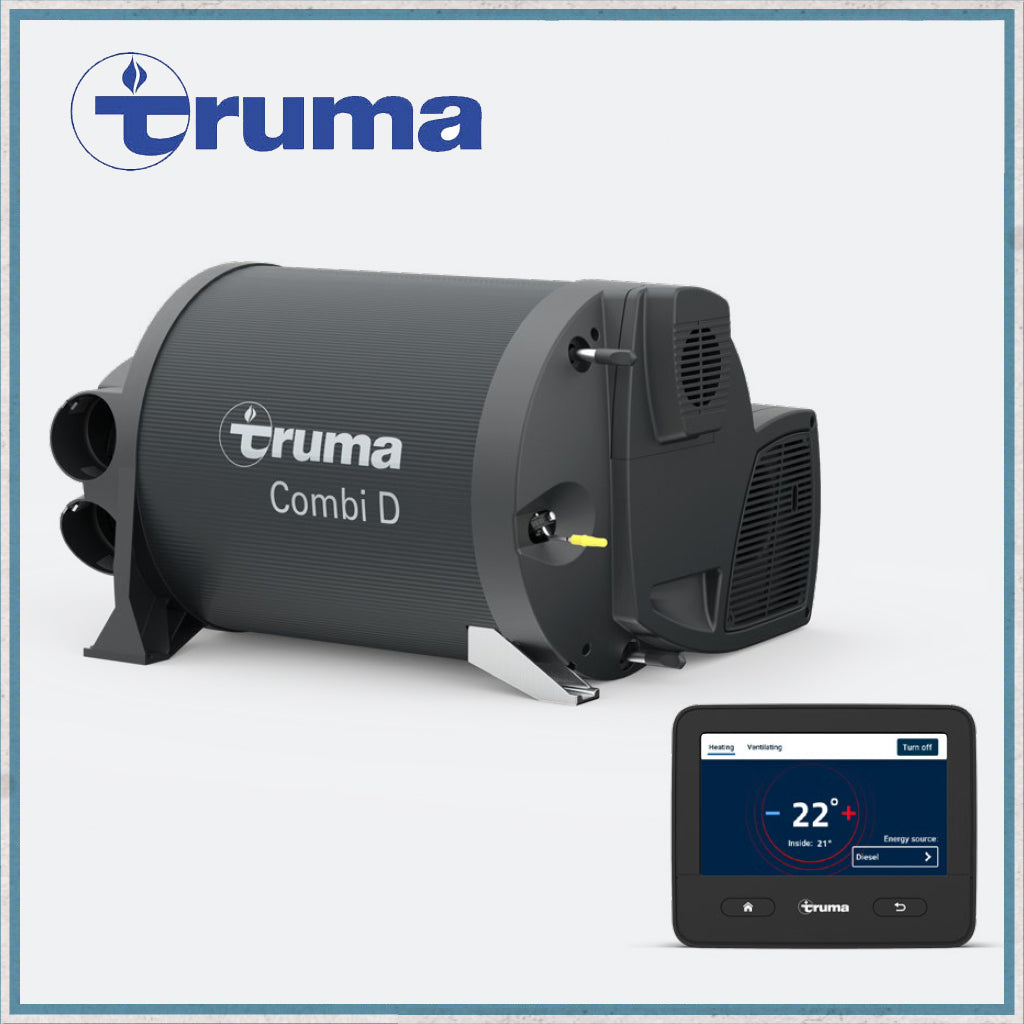

Truma Combi D6E Caravan Motorhome Diesel Water Boiler & Heater Kit

Truma-Combi-D6E-Black

Description

Truma Combi D6E Caravan Motorhome Diesel Water Boiler & Heater Kit

Truma Combi D6E is a powerful diesel heater that can also be used to heat water. It is especially suitable for larger motor homes. It is supported by a fan so that the motor home heater also works while you’re driving. In summer, you can heat just the water without using the space heater.

Combi D6E is extremely compact and an absolute lightweight compared to other heaters with a similar output. Your Combi heater is controlled simply with a digital control panel. In combination with a Truma air conditioner, you can also select the automatic climate control option on the control panel. This ensures that inside the vehicle you always have the desired temperature.

FrostControl drain valve is installed
Infinitely variable temperature adjustment with the digital CP plus control panel
Automatic climate control possible in combination with a Truma air conditioner

More details about Truma Combi D6E

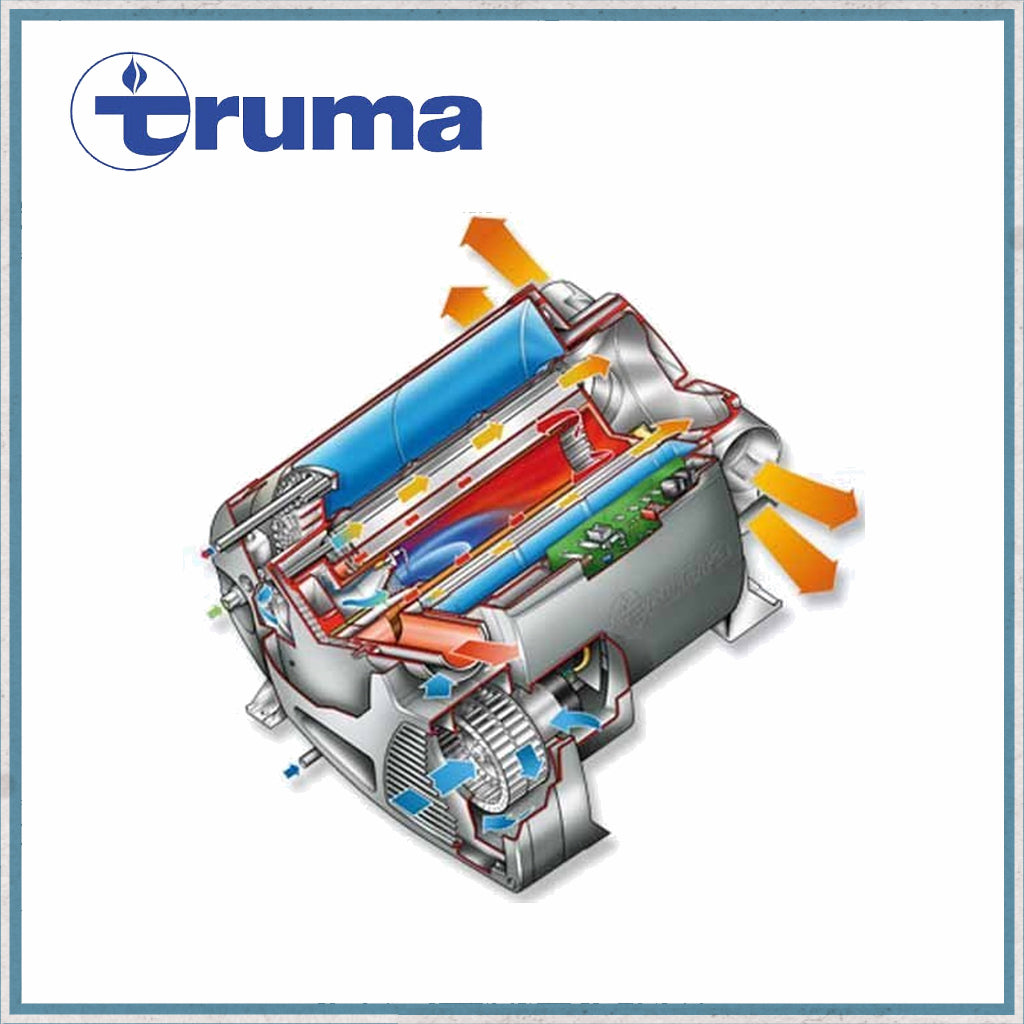

The warm air flows into the vehicle’s interior through four air outlets, where it is distributed optimally to ensure a pleasant indoor climate. The Truma Combi heater is almost silent and very economical to run. The temperature in the vehicle is infinitely adjustable with a digital control panel.

Many installation options, as it is extremely lightweight and compact
The warm air from Combi D6E is distributed optimally via four air outlets
Diesel, electrical and mixed modes are possible
Digital INET-X control panel: automatic climate control in combination with a Truma air conditioner

iNet X Technical highlights

• 4.3” colour touchscreen

• Control possible via the Truma iNet X App

• Precise fault designation with advice on solutions

• Control of various Truma appliances (Combi and air conditioning systems) as well as third-party air conditioning systems

• Automatic climate control

In combination with a Truma air conditioner, you can also select the automatic climate control option on the control panel. This ensures that inside the vehicle you always have the desired temperature.

Specifications:

Rated heat output in diesel mode: max. 1950 W
Rated heat output in electric mode: 900 W / 1800 W
Rated heat output in mixed mode: max. 5800 W
Fuel consumption:

220 – 630 ml/h (110 ml/h with average heat output of 1000 W)
Power consumption (at 12 V): operation of heater and water container: max.

1.8 – 4 A (in normal operation between "Off" and "lowest operating level" less than 1.8 A)
Water capacity: 10 litres
Heating time (from approx. 15 °C to approx. 60 °C): Water container: approx. 20 min.
Heating time (from approx. 15 °C to approx. 60 °C): Heater and water container acc. to EN 15033 approx. 80 min.
Air flow rate (free blowing) with 4 warm air outlets max 287 m3/h
Weight 15.8 kg
Dimensions (L x W x H) 540 x 500 x 350 mm
Pump Pressure max 2.8 bar
System pressure max 4.5 bar

Included in the kit

Combi D6

INET-X Panel, with 6m cable

Flue with Black or white Exhaust Cowl

John Guest pipe fittings kit
