Truma GOK MonoControl CS 30mbar Gas Regulator 8mm/10mm 2018

Please note that these were manufactured in 2018 and have a lifespan of 10 years so are usable to 2028.

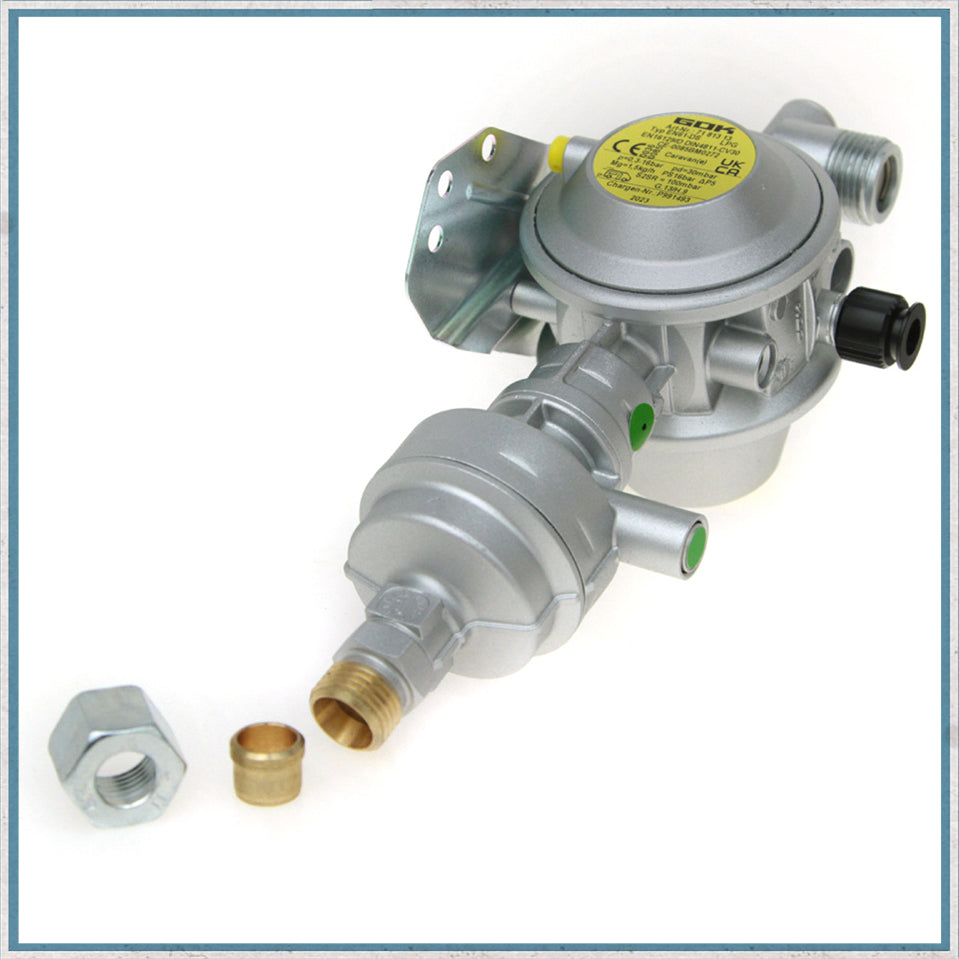

The MonoControl CS is a safety gas pressure regulation system for caravans and motorhomes. The Gas pressure regulation system ensures a uniform output pressure of 30 mbar with a permissible inlet pressure range of 0.3 - 16 bar.

The integrated crash sensor interrupts the flow of gas in the event of an accident with deceleration of 3.5 g ± 0.5 g* acting directly upon the triggering element.

*With an average vehicle weight, this corresponds to a collision speed of approx. 15-20 km/h with a fixed obstruction.

Specification:

Type of gas: Liquid Gas (Propane/butane)

Admission Pressure: 0.3 - 16 bar

Output pressure: 30mbar

Regulator Capacity: 1.5kg/h

Regulator inlet: Male Thread M20 x 1.5

Regulator Outlet: Olive screw connection, 8mm or 10mm

Recommended tightening torque: 3 - 5 Nm for union nut M20 x 1.5

Horizontal triggering value: 3.5 g ± 0.5 g

Operating temperature:  -20ºC to +50ºC
