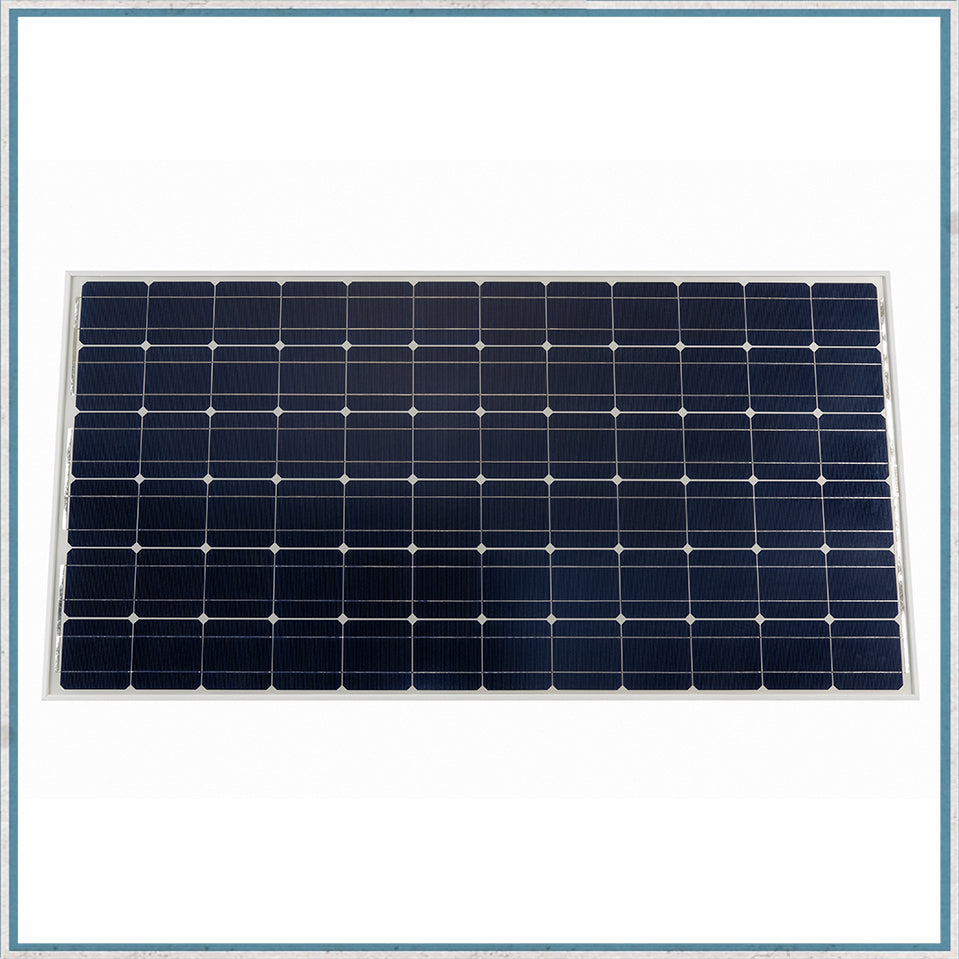

Solar Panel - Victron Energy 115W-12V Monocrystalline Solar Panel

Victron Energy 115W-12V Monocrystalline Solar Panel

Victron-Mono-solar-115W
£113.50


Victron Energy 115W-12V Monocrystalline Solar Panel

Panel Measurements: 1015 x 668 x 30mm


Description

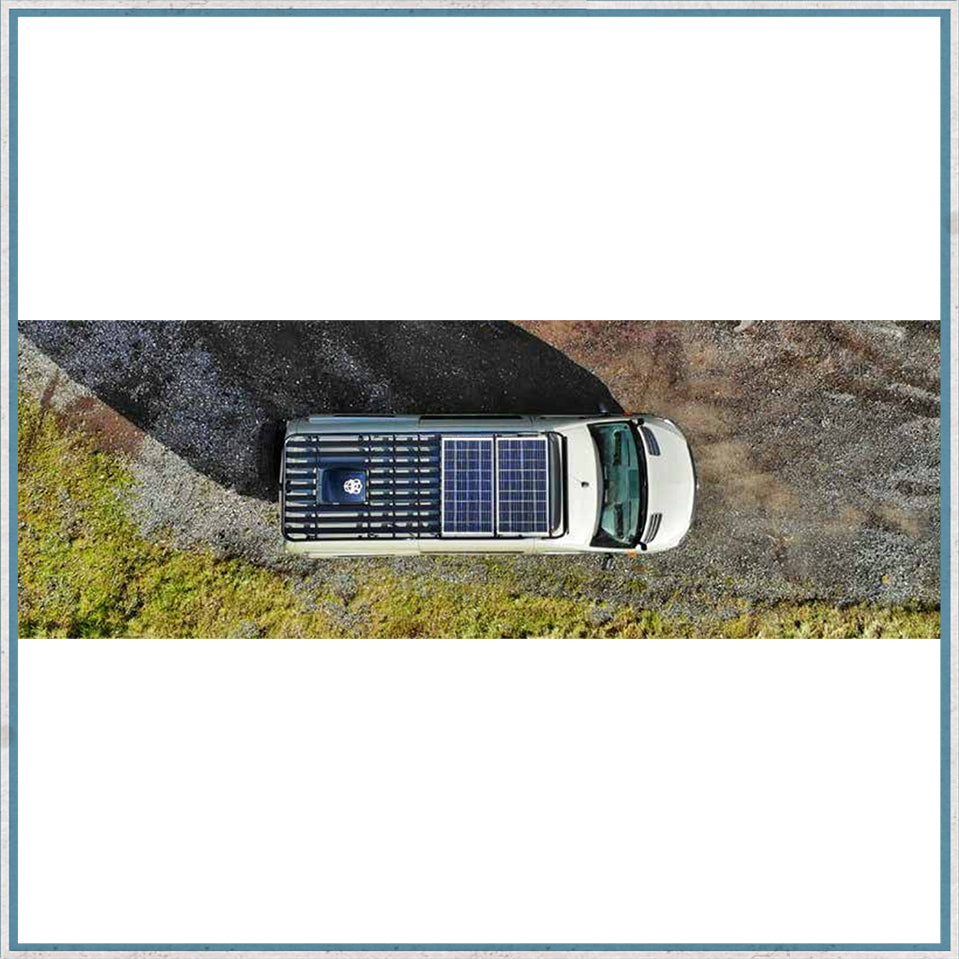

A strong, anodised aluminium frame allows for modules to be easily mounted on your roof.

Quality tempered glass with high transmission provides enhanced stiffness and resistance to impacts.

High performance bypass diodes minimise the power drop caused when your solar is in the shade.


Information

• Low voltage-temperature coefficient enhances high-temperature operation.

• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.

• 25-Year limited warranty on power output and performance.

• 5-Year limited warranty on materials and workmanship.

• Sealed, waterproof, multi-functional junction box gives high level of safety.

• High performance bypass diodes minimise the power drop caused by shade.

• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet.

• A sturdy, anodised aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.

• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

• High power models with pre wired quick-connect system with MC4 (PV-ST01) connectors.




Data

Net weight: 8 KG

Size: 1015 x 668 x 30mm

Cell Type: Monocrystalline

Number of cells in series: 36

Nominal Power: 115W

Max Power Voltage: 19V

Max Power Current: 6.04A

Open Circuit Voltage: 23.32V

Short Circuit Current: 6.61A

Frame: Aluminium

Warranty:  5 Years
