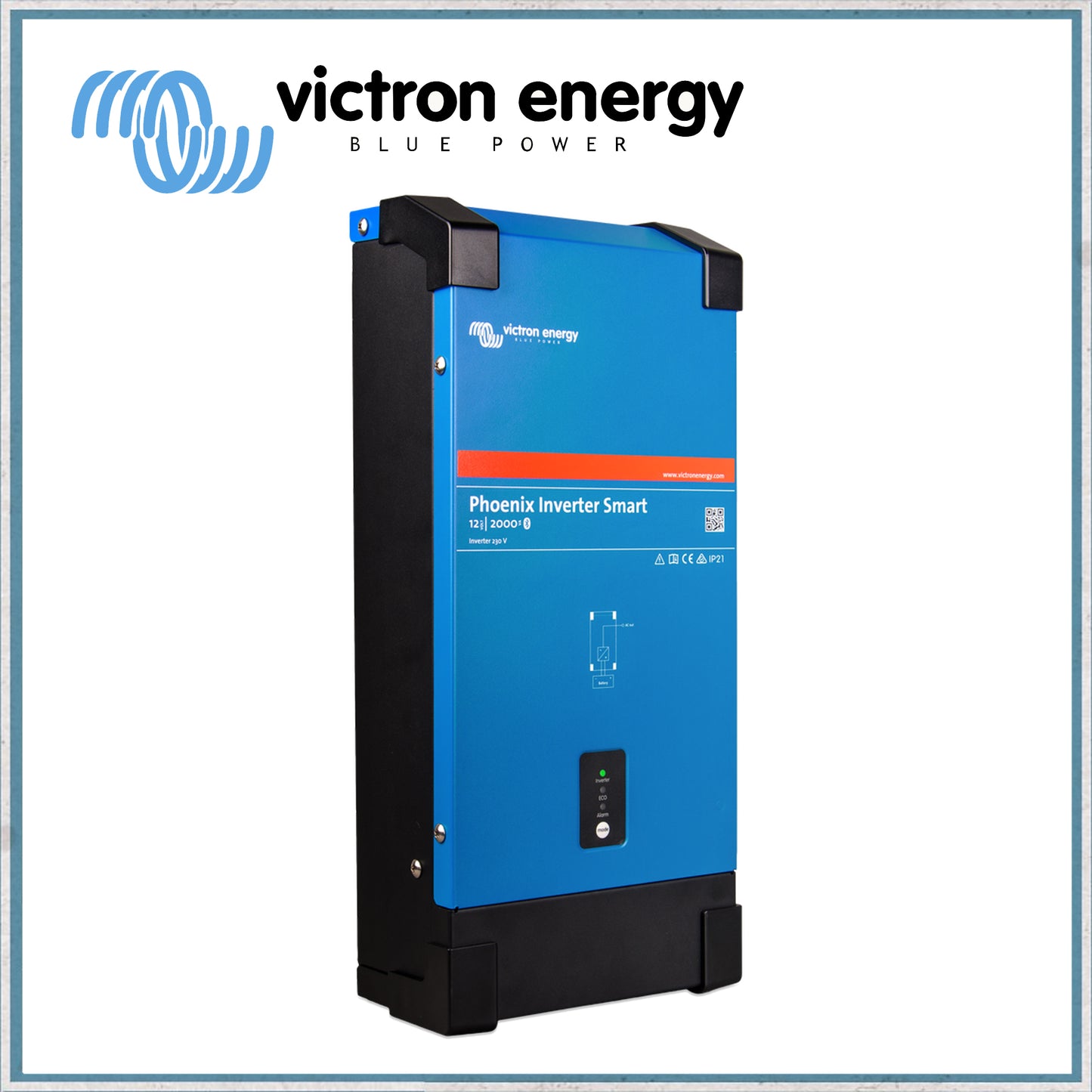

Victron Phoenix Smart Inverter (12V / 2000VA)
Enjoy great efficiency with Victron's Phoenix 2000VA true sine wave inverter without compromising on performance. Their hybrid HF tech is packed into a top quality product with compact dimensions and light weight – able to provide power to any load up to 2000VA, with a maximum short term peak power of 4000VA. Plus, this latest version comes with "smart" Bluetooth connection, so you can monitor your device through the Victron smart app!.
Bluetooth built-in: fully configurable with a tablet or smartphone
Low battery voltage alarm
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210 - 245V
Frequency: 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
• In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable).
If the load exceeds the preset level, the inverter will remain on.
A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
Victron part number: PIN122200000
Input voltage range 9,3 – 17V
Output Output voltage: 230VAC ±2% 50 Hz or 60Hz ± 0,1%
Cont. output power at 25ºC 2000VA
Cont. output power at 25ºC 1600W
Cont. output power at 40ºC 1450W
Cont. output power at 65ºC 1000W
Peak power 4000VA
Dynamic (load dependent) DC low shut down (fully configurable)
Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
Max. efficiency 12V 92%
Zero load power 12 V 8W
Zero load power in ECO mode 0,6W
Battery-connection M8 bolts
230 V AC-connection Screw terminals
Dimensions (HxWxD) 485 x 219 x 125mm
