12V LED Chrome Lighting Dimmer Switch

12V LED Chrome Lighting Dimmer Switch

LV35-Chrome
£9.99


12V LED Chrome Lighting Dimmer Switch

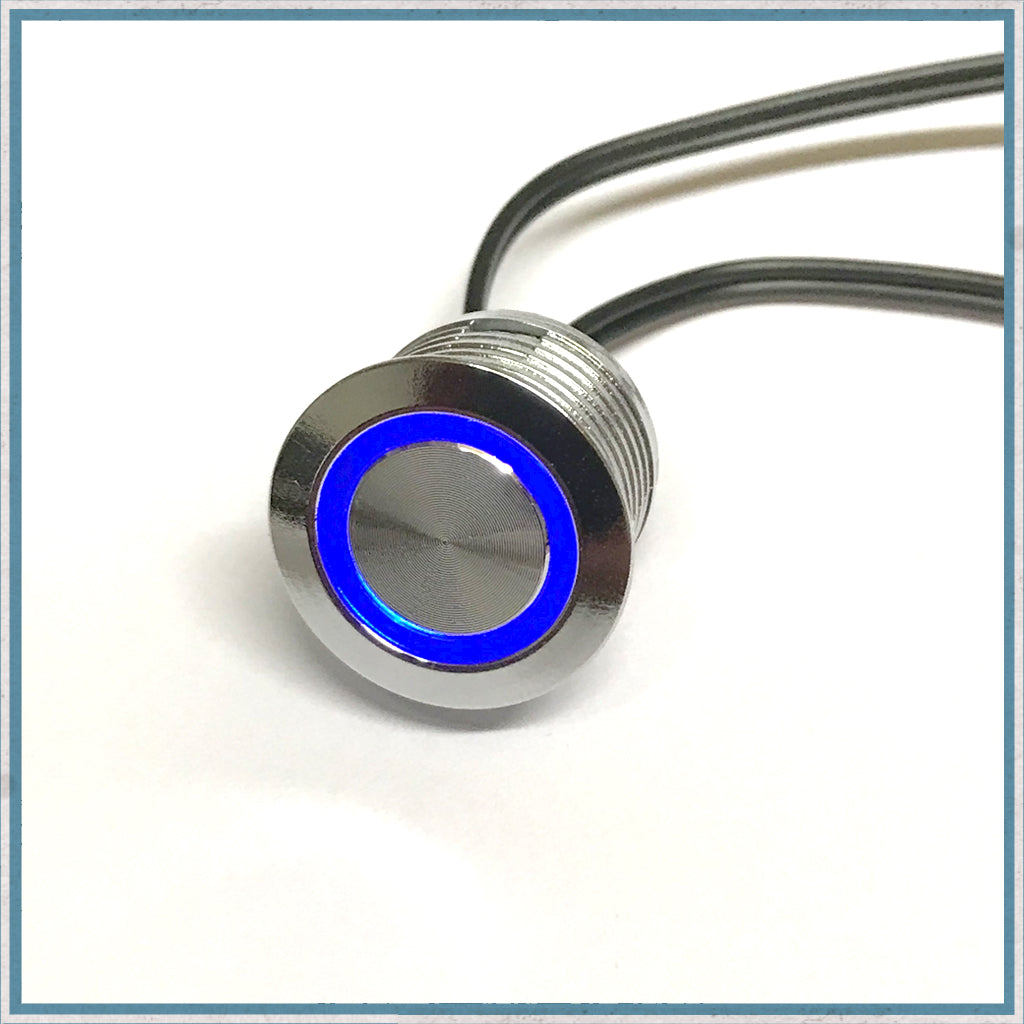

This Chrome panel mount dimmer switch is ideal in Camper Vans, Motorhomes, Caravans and boats as it is a low profile recess switch that turns the lights on/off with a quick touch and slowly dims the lights with a touch and hold.

The blue LED ring remains on as long as power is applied to the dimmer switch.

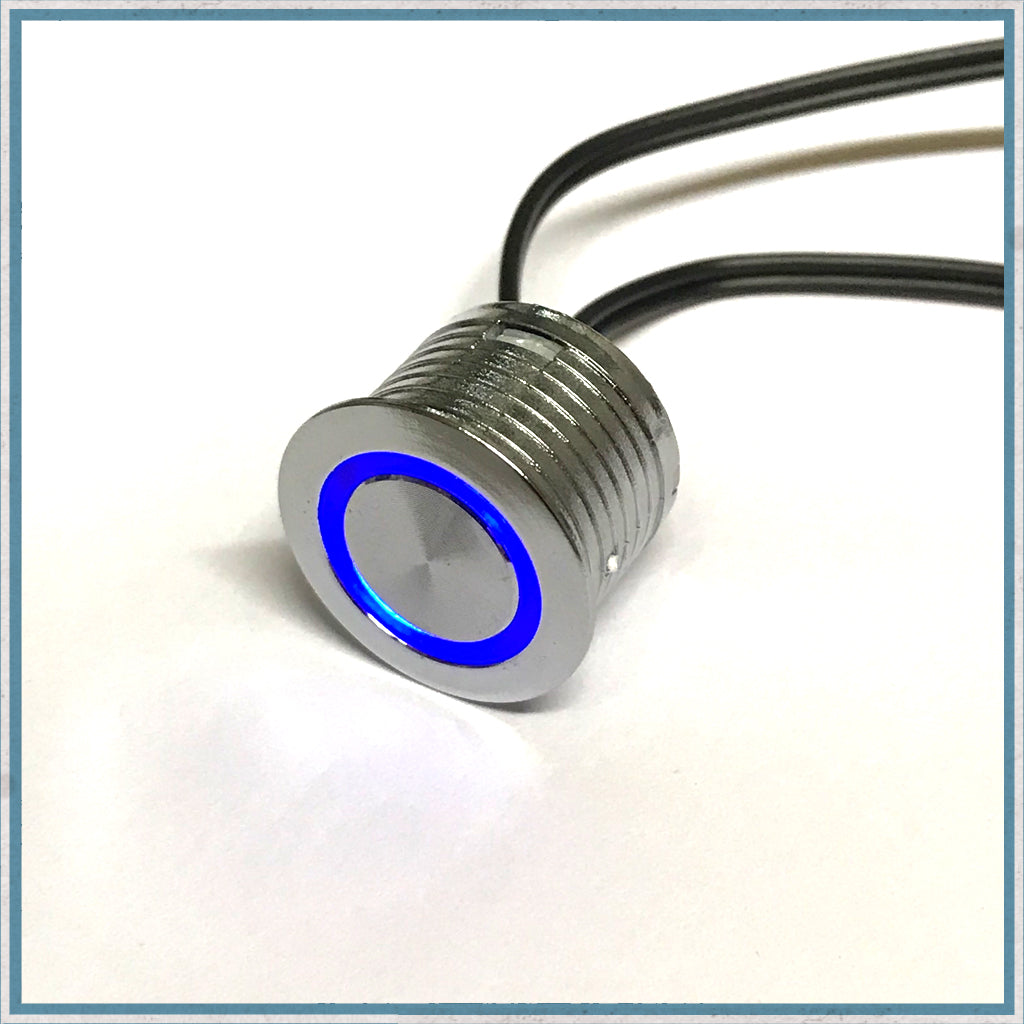

The diameter of the switch is 21mm and an 18mm hole is required. The recess depth is 15mm from the mounting surface and each switch comes with approximatley 50cm of two core cable for input/output.

This switch is an ideal option for use with our 2W Switched downlights, up to a max of max 4amps. The 3W Dimmable downlights have their own dimming circuit, so you would not need this dimmer if using those.

As a guide if you're controlling the LED strip/tape lighting, this dimmer is suitable for up to 6.5m of 7.2W/m LED tape at 12V, or 10m of 4.8W/m LED tape at 12V.

The 2W Switched downlights pull less than 0.2 amps each so at 4 amps max, this dimmer could be used to control more than 20 downlights.

Please note: you need to ensure that the body of the switch is isolated from any metal that could earth it, so stopping it from operating properly.



See also our Black or White dimmer switches, which do not have the Blue Led ring.



Sold singularly.
