Campervan 24 litre wheel arch water tank

Campervan 24 Litre Wheel Arch Water Tank


Campervan 24 Litre Wheel Arch Water Tank

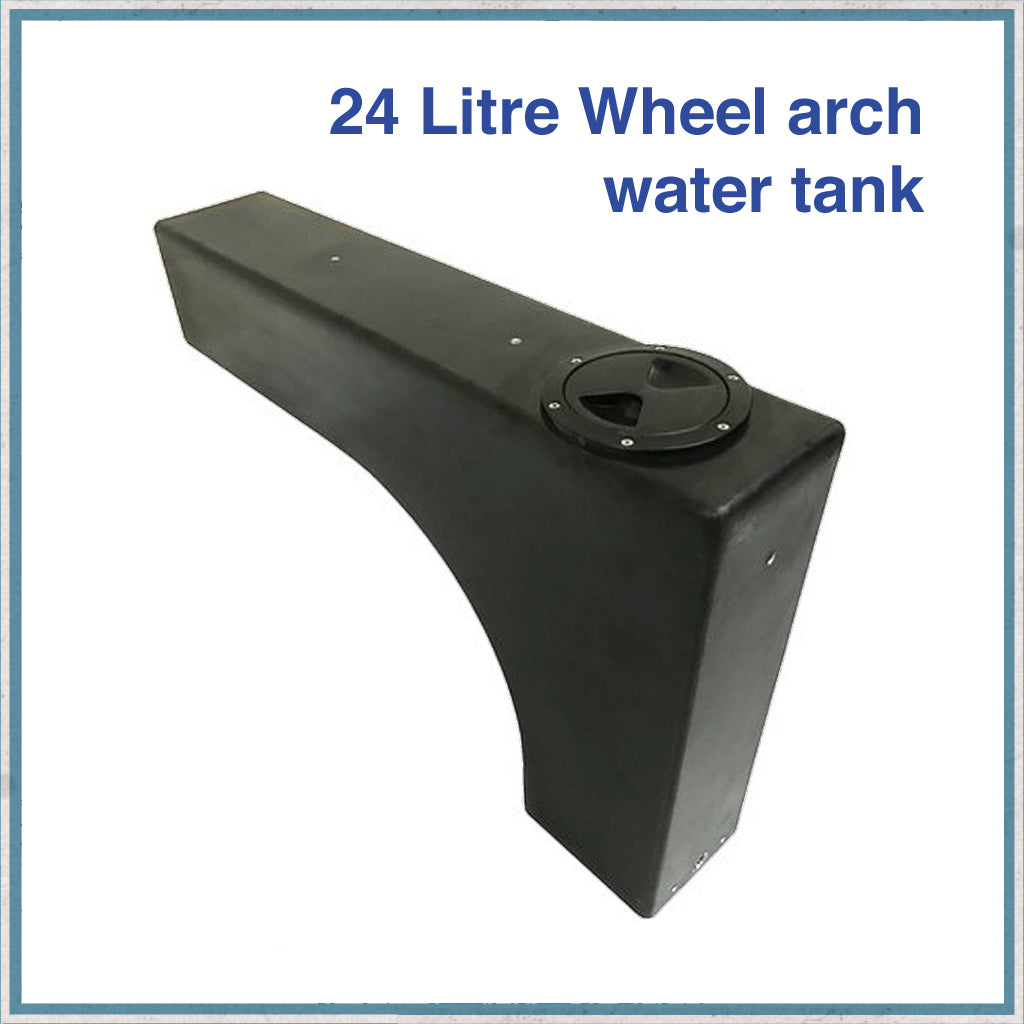

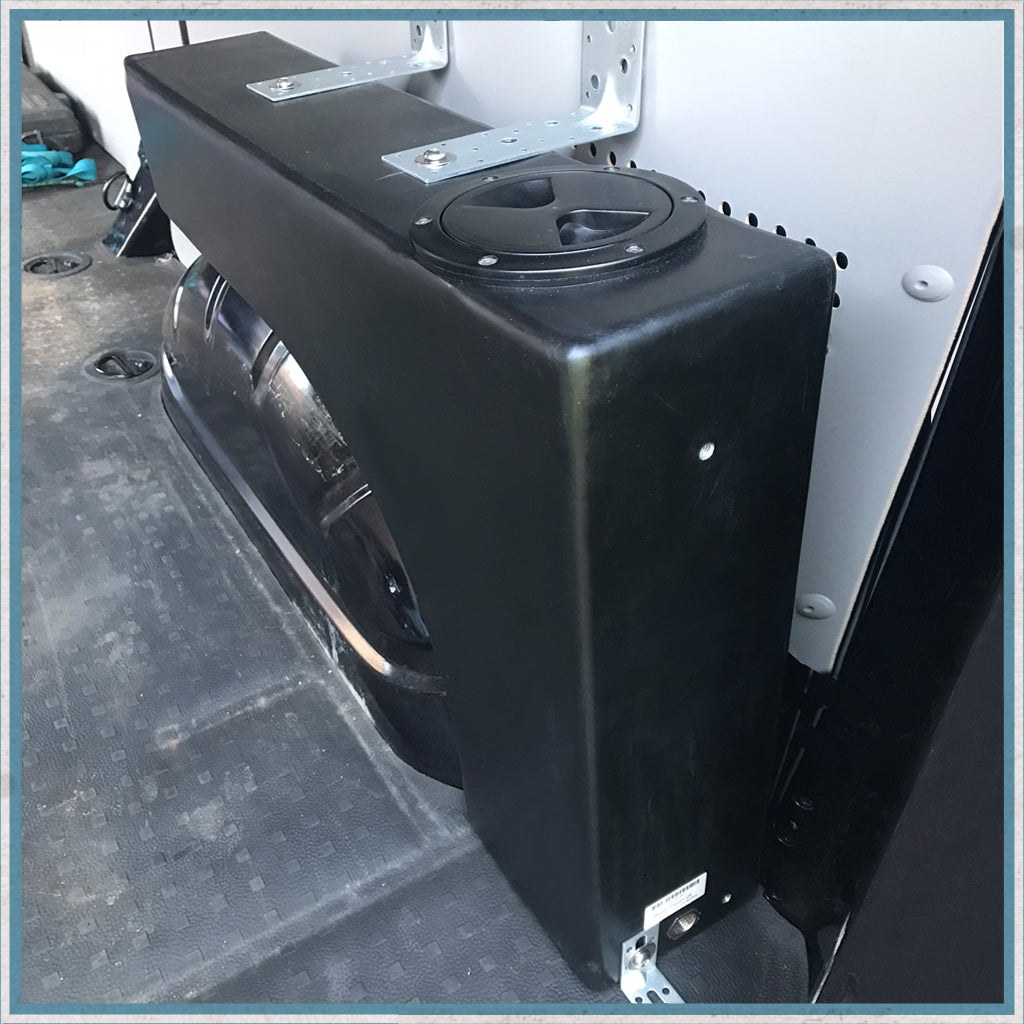

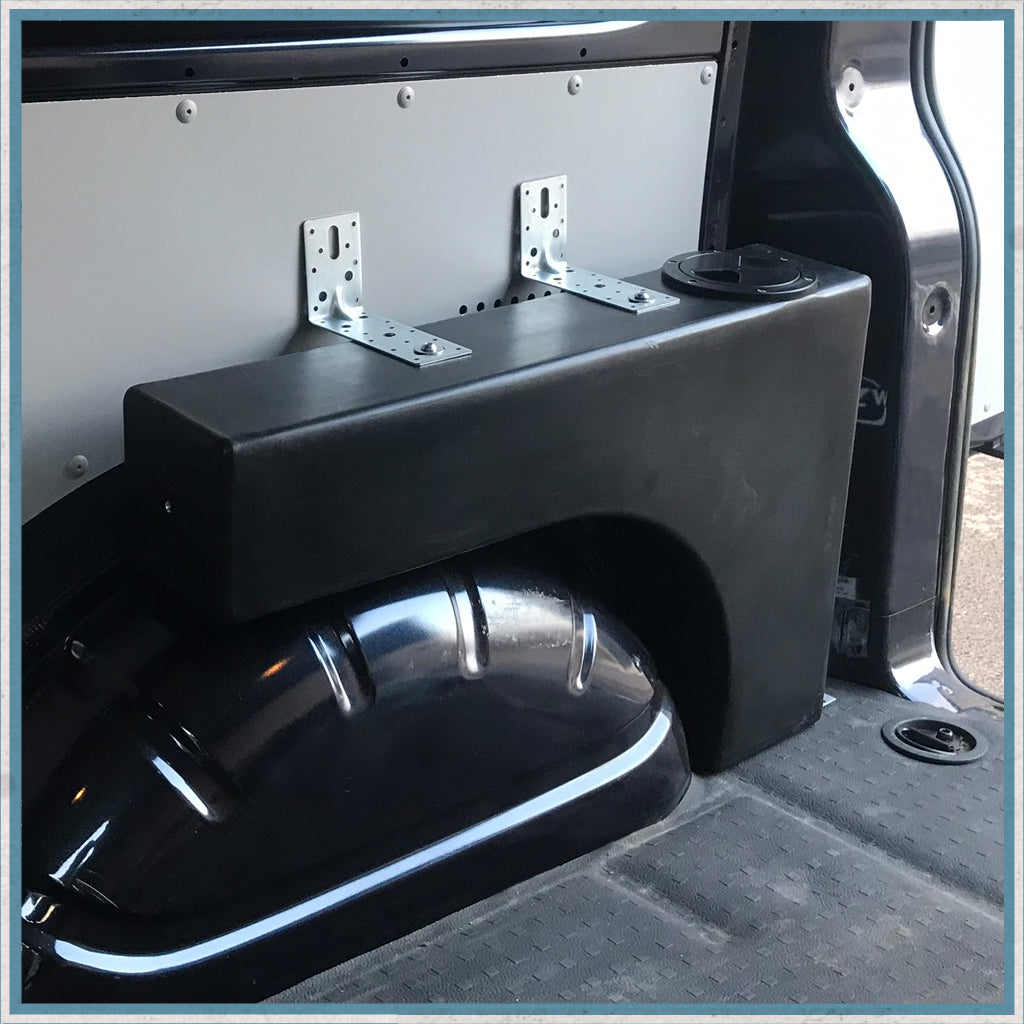

This UK made fresh water tank has been designed to fit over the wheel arch in the rear of a VW T5/T6 van, but it will fit many other vans, making it ideal for camper conversions.

This 24 litre capacity tank has 6 x M8 inserts moulded into the tank for easy mounting. If you require a larger tank there is also a 57 litre version available.

Please note this tank has an 1/2" BSP outlet opening at the bottom of the tank. If you don't plan to plumb an outlet pipe to it you'll need to purchase a 1/2" BSP bung from a plumbing merchant.

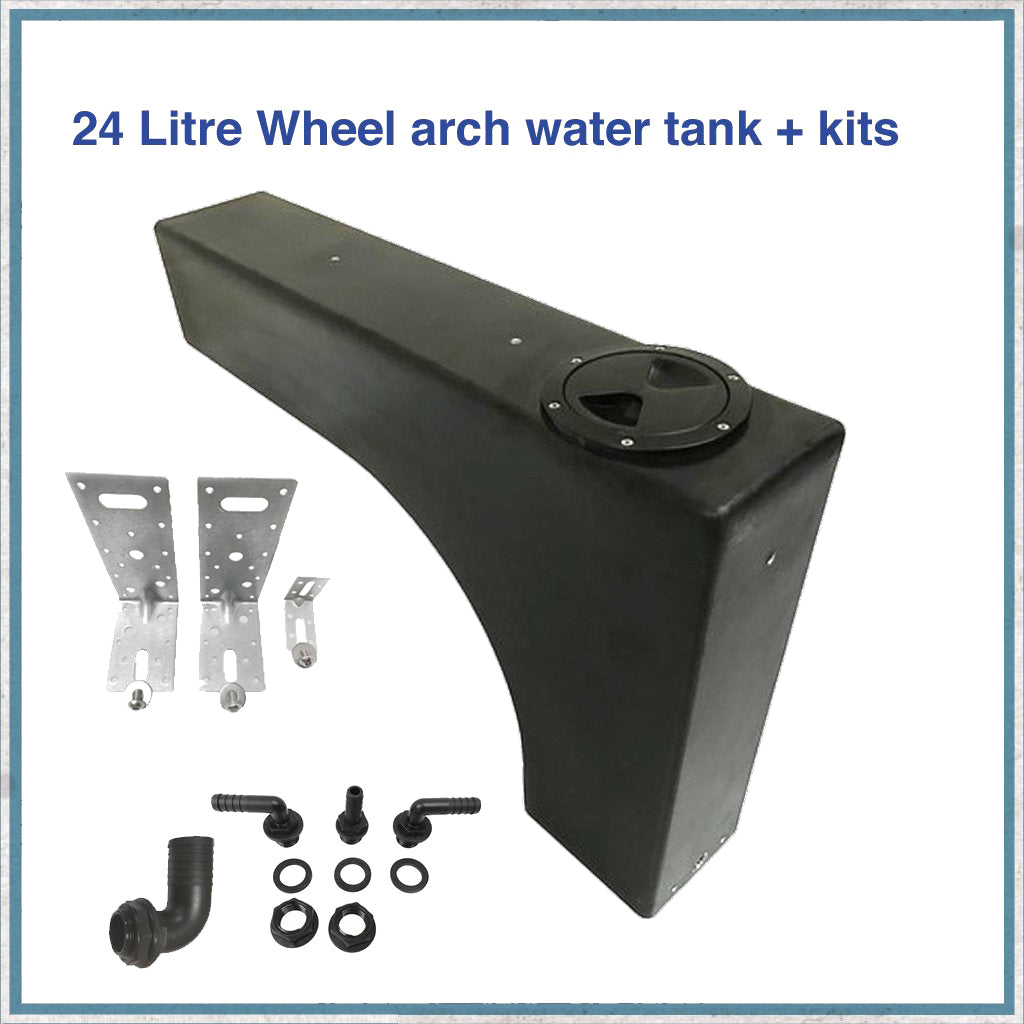

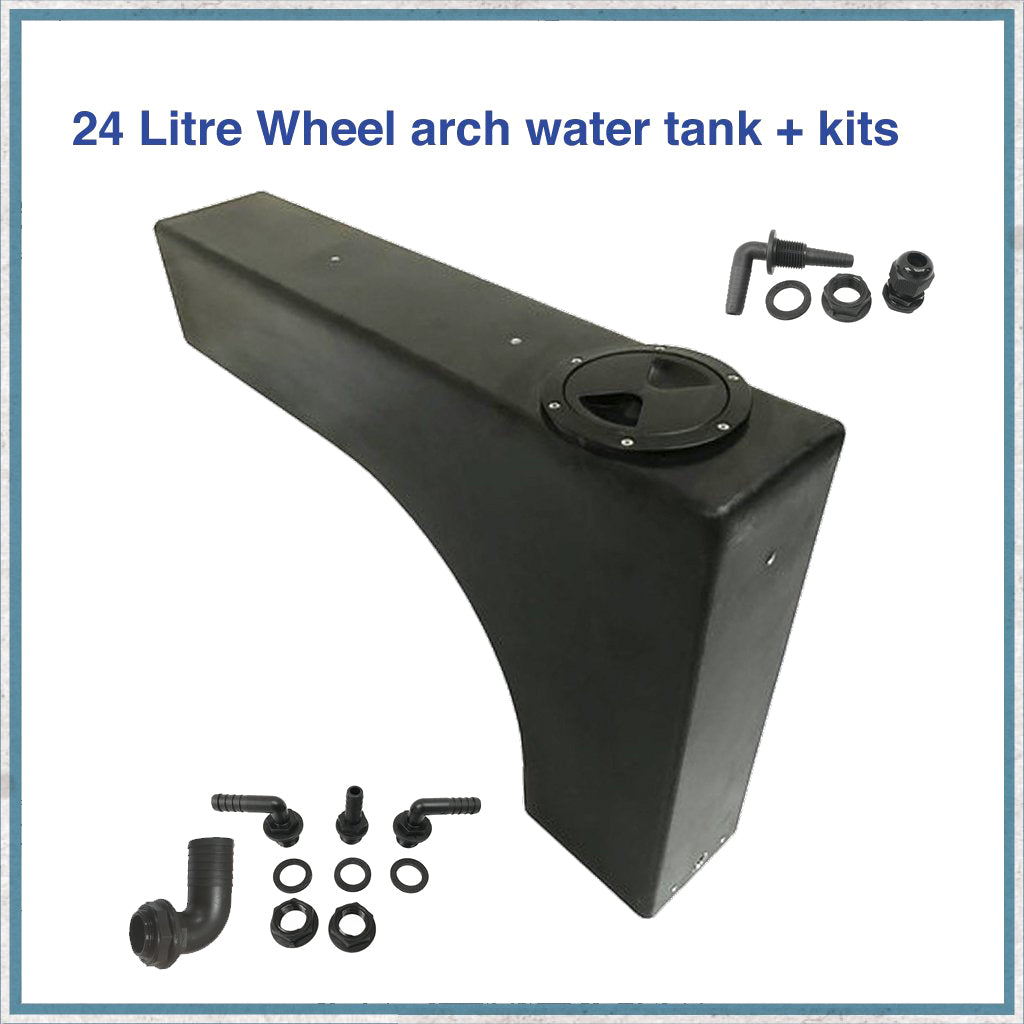

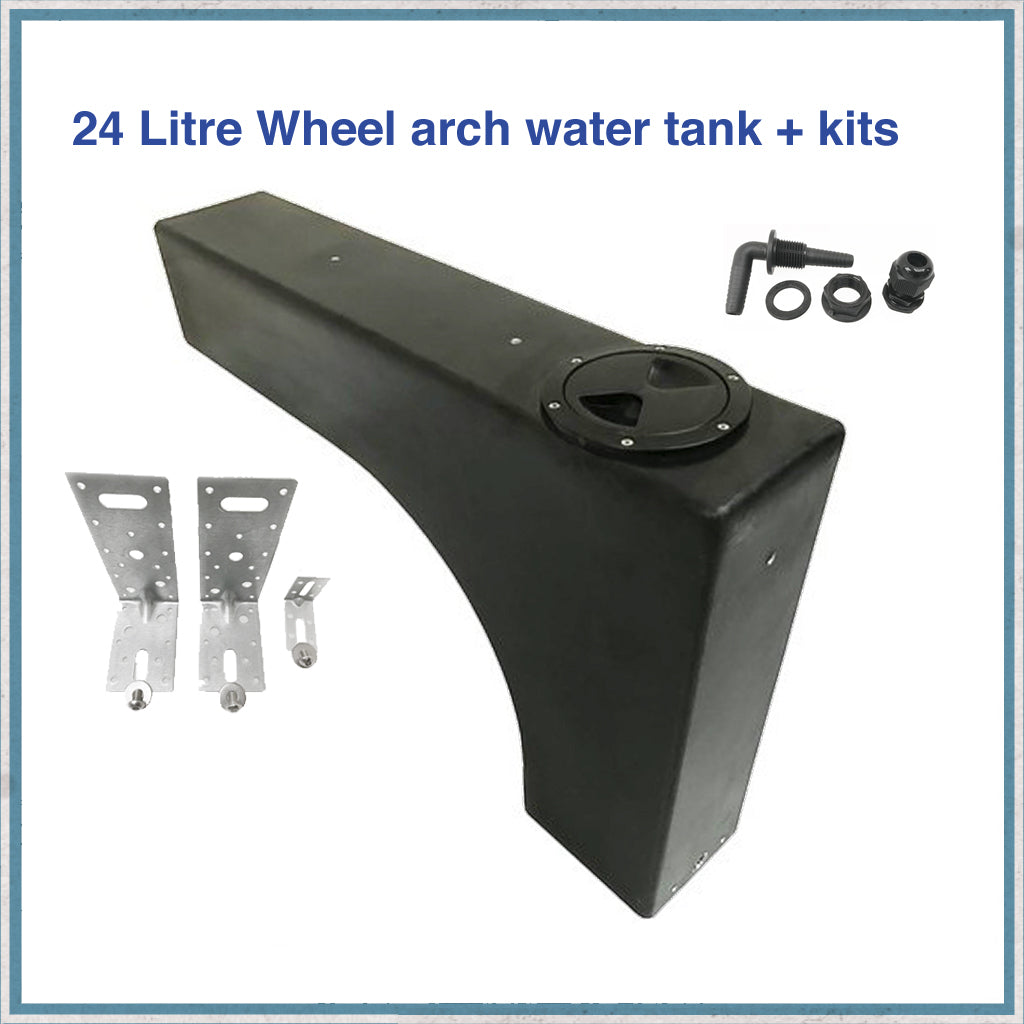

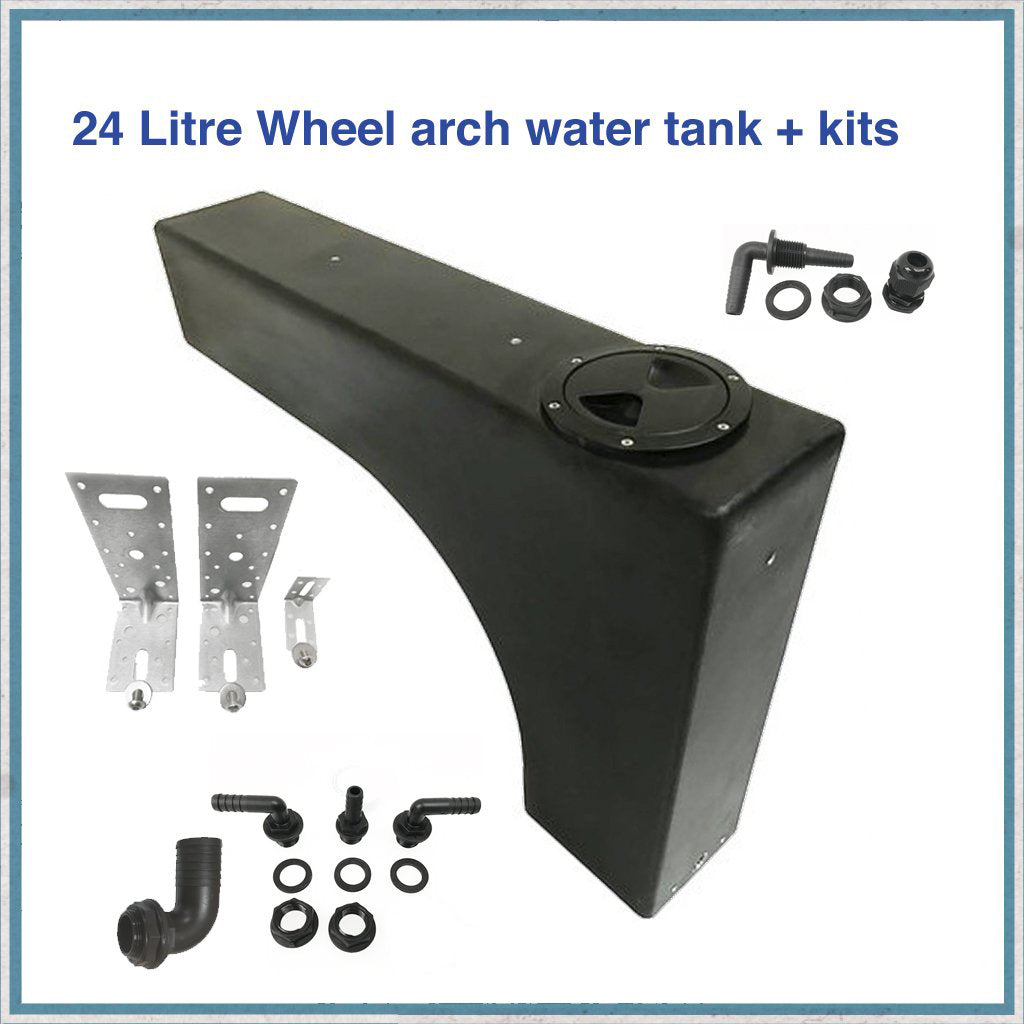

There are also a range of kits available to ensure the tank is quick and easy to install, including a plumbing kit (now with a 40mm inlet connection), fitting kit and a submersible pump lid kit, which can all be selected from the drop down menus.

There is also a larger 57 Litre version of this tank, which is wider, but designed to still fit within a cabinet and still allow space for a 3/4 width bed within a VW T5 sized conversion.


See also our lockable water filler inlets and the corresponding 40mm water filler hose

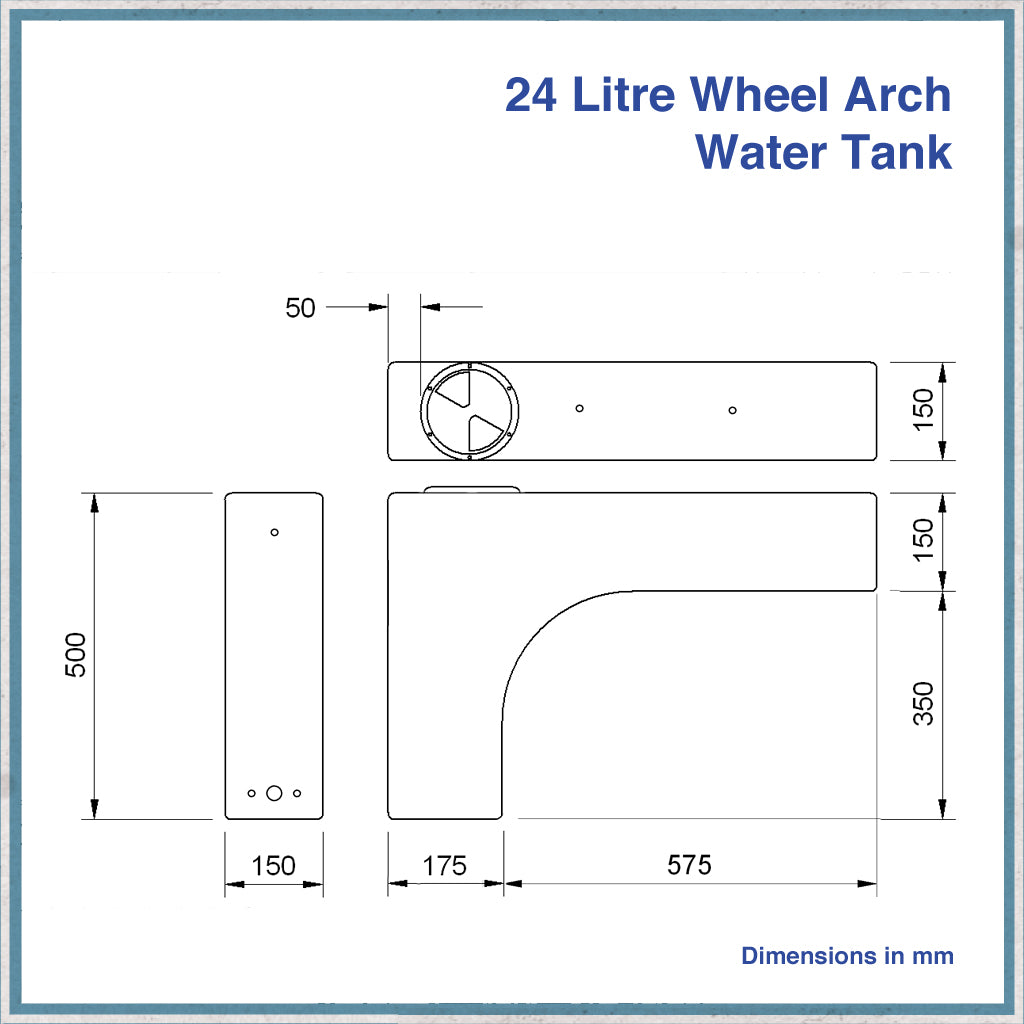

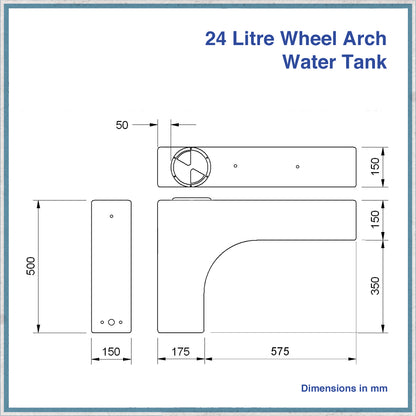

Nominal capacity (Ltr)   24
Height (mm)   500
Width (mm)    750
Depth (mm)   150
Weight (kg)    3

The separate kits are as follows:

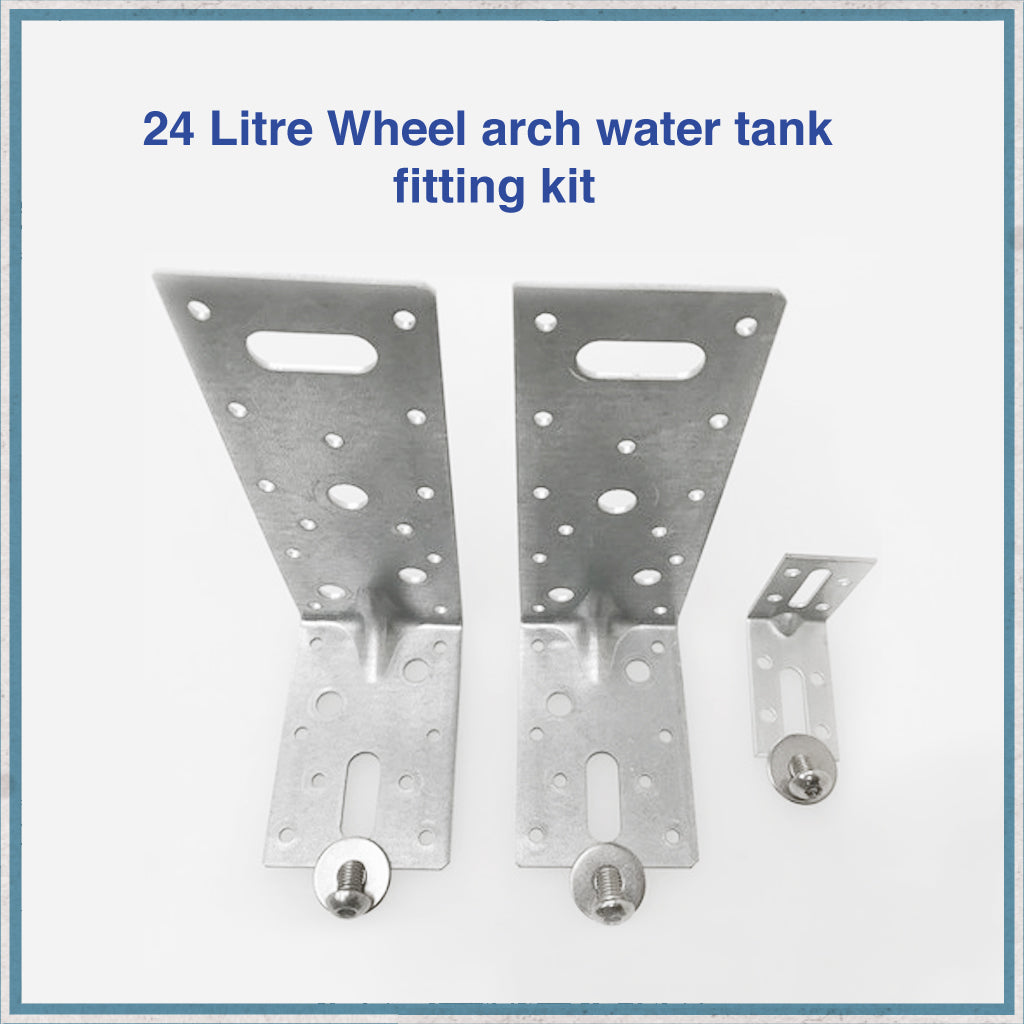

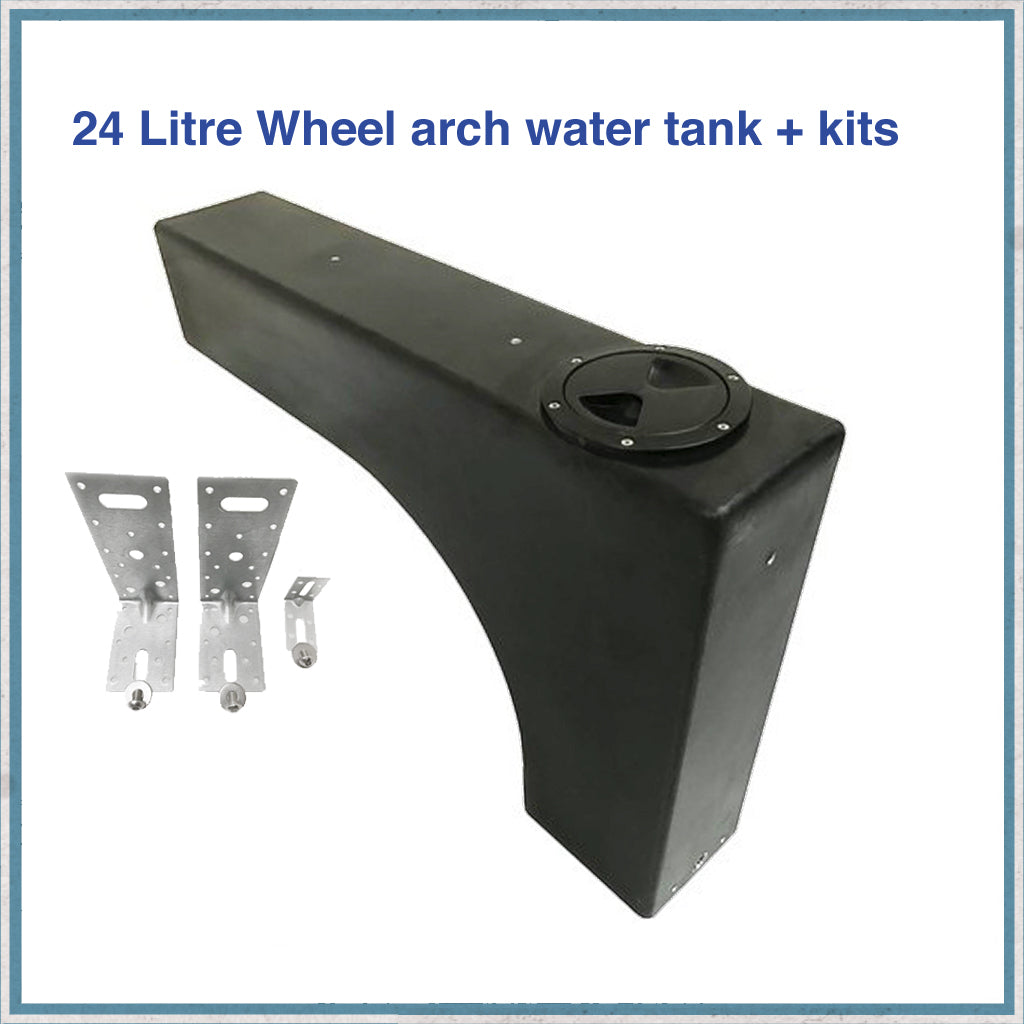

 24 Litre Fitting Kit:

  • 3 x M8 x 12mm socket button head
  • 3 x M8 x 25mm washer
  • 1 x 50mm x 55mm x 30mm angle bracket
  • 2 x 150mm x 90mm x 60mm angle bracket

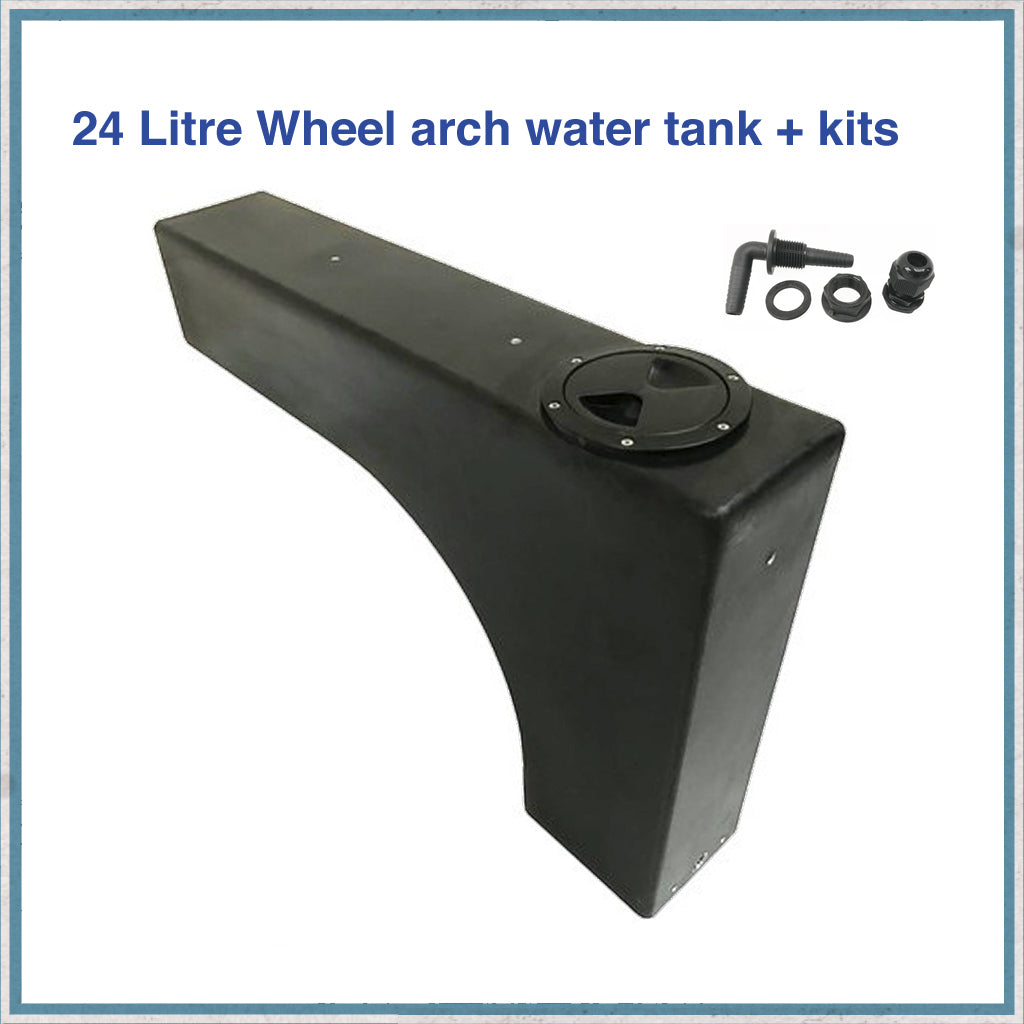

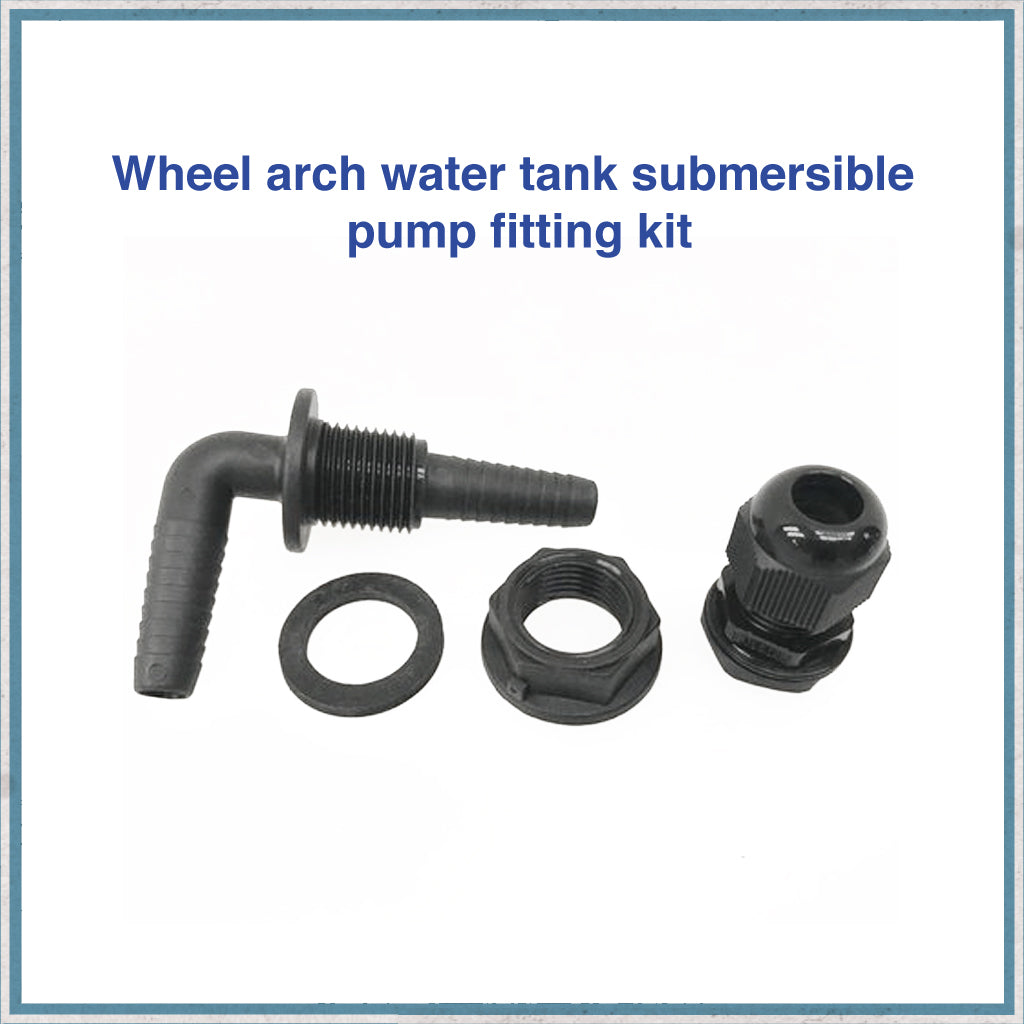

Submersible Pump Lid Kit:

This kit can be used to allow a submersible pump to be connected through the lid.


  • 1 x ½” BSP 90° bulkhead hose tail 11-13mm
  • 1 x ½” BSP back nut
  • 1 x ½” BSP gasket
  • 1 x cable gland

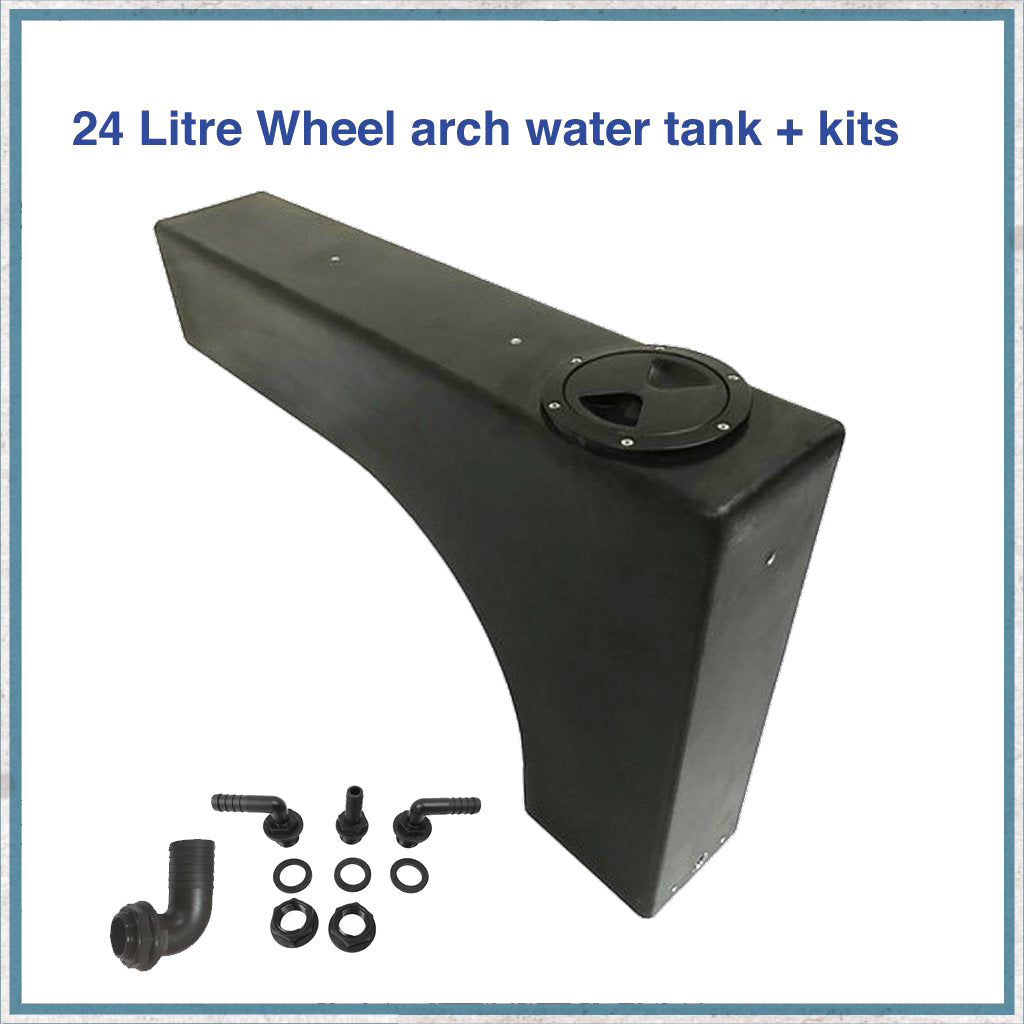

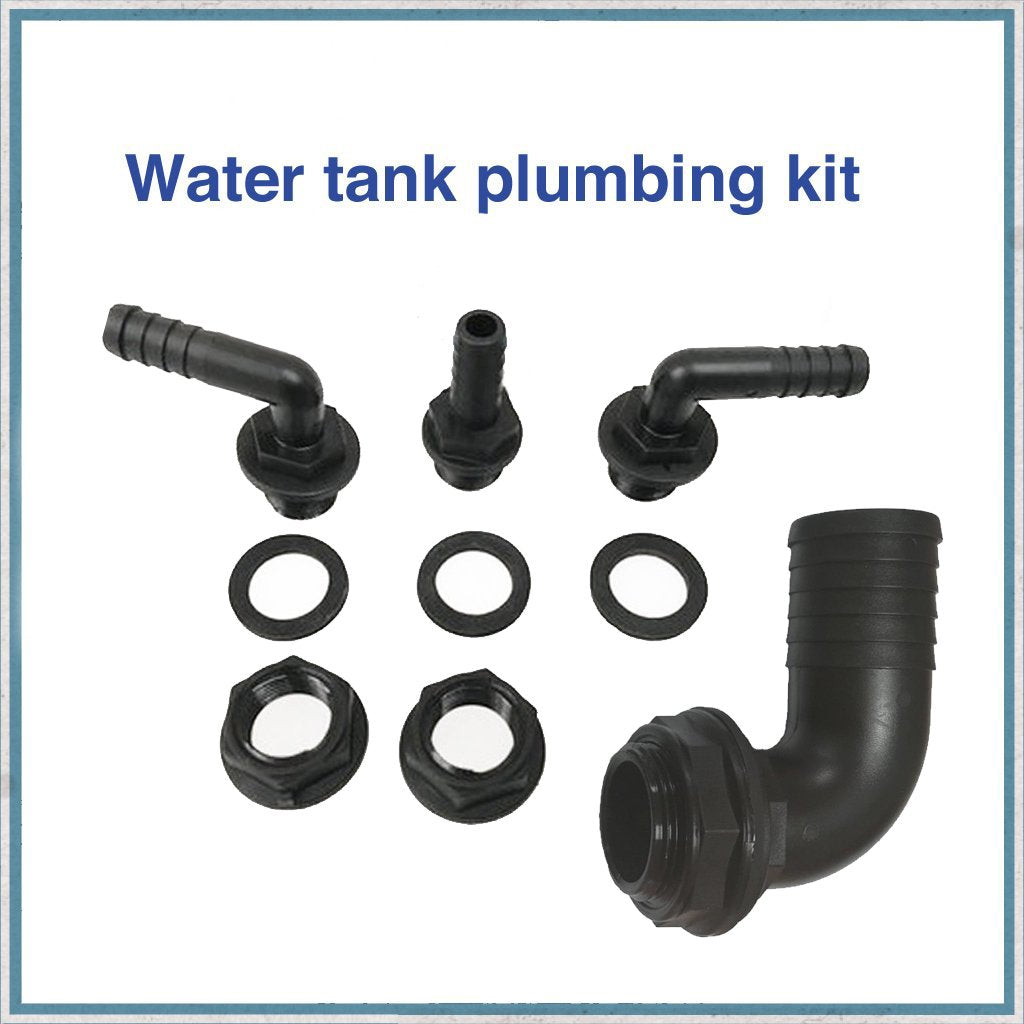

Plumbing Kit:

This kit has all the fittings required for the outlet, inlet and vent hoses.


  • Includes 1 x 90° x 40mm Filler (Complete)
  • 2 x Vent Hose Tail: (½ inch)
  • 2 x Back Nut (½ inch)
  • 2 x Washer/Gasket (½ inch)
  • 1 x Vent (½ inch) - this is included without a washer/gasket or backing nut, as some other water tanks have a pre-fitted threaded insert in the tanks.
