 Campervan 57 Litre Wheel Arch Water Tank with fitting, plumbing and pump connection kits

Campervan 57 Litre Wheel Arch Water Tank

W23-57L-Wheel-Arch-Tank+F+PL+PU
£144.00

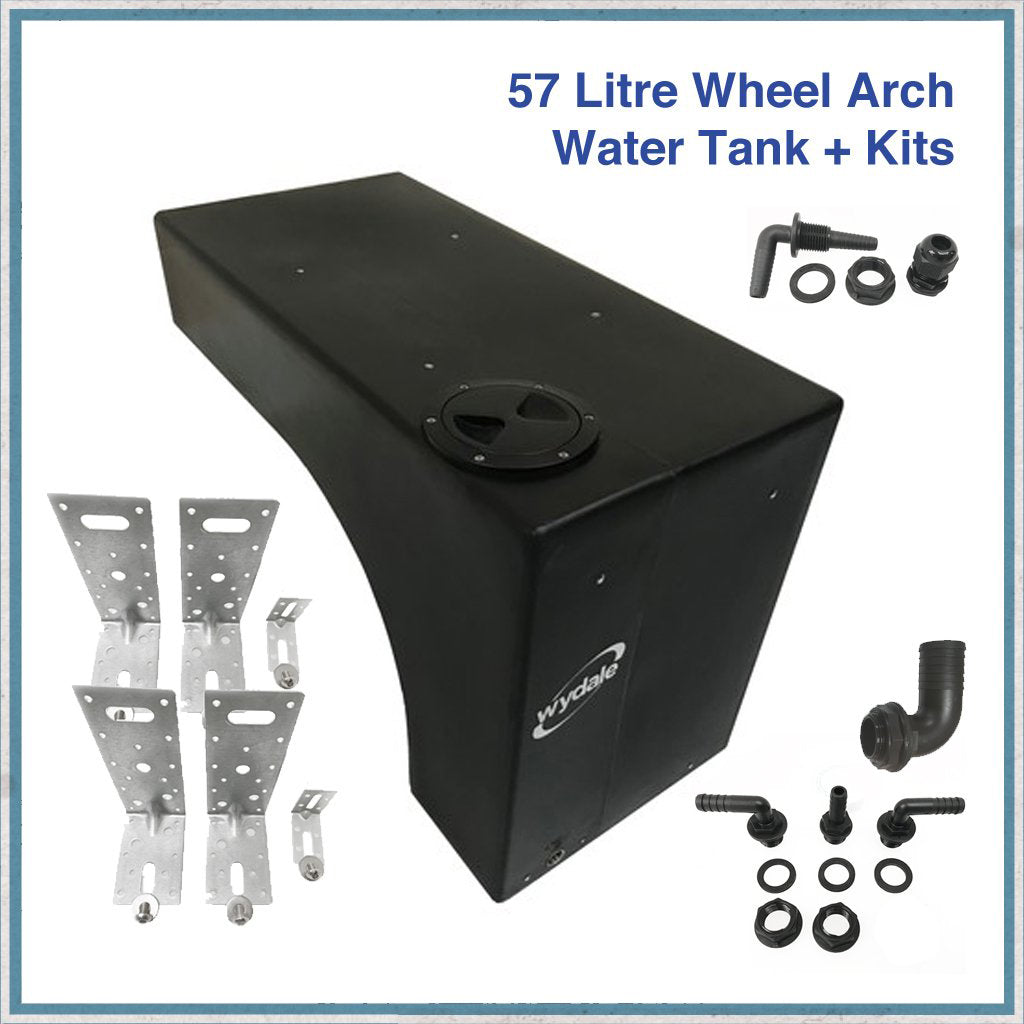

Campervan 57 Litre Wheel Arch Water Tank

This UK made fresh water tank has been designed to fit over the wheel arch in the rear of a van, making it ideal for a camper conversion for either fresh or waste water.

This 57 litre capacity tank has 6 x M8 inserts moulded into the tank for easy mounting. If you require a smaller tank there is also a 24 litre version available.

Please note this tank has an 1/2" BSP outlet opening at the bottom of the tank. If you don't plan to plumb an outlet pipe to it you'll need to purchase a 1/2" BSP bung from a plumbing merchant.

There are also a range of kits available to ensure the tank is quick and easy to install, including a plumbing kit (which now includes a 40mm inlet), fitting kit and a submersible pump lid kit, which can all be selected from the drop down menus.

See also the narrower 24 Litre version of this tank



Specifications:

Nominal capacity (Ltr)   57
Height (mm)  500
Width (mm)   750
Depth (mm)   346
Weight (kg)    6.5



The separate kits are as follows:

 57 Litre Fitting Kit:

  • 6 x M8 x 12mm socket button head
  • 6 x M8 x 25mm washer
  • 2 x 50mm x 55mm x 30mm angle bracket
  • 4 x 150mm x 90mm x 60mm angle bracket



Submersible Pump Lid Kit:

This kit can be used to allow a submersible pump to be connected through the lid.

Contents:

  • 1 x ½” BSP 90° bulkhead hose tail 11-13mm
  • 1 x ½” BSP back nut
  • 1 x ½” BSP gasket
  • 1 x cable gland



Plumbing Kit:

This kit has all the fittings required for the outlet, inlet and vent hoses.

Contents:

  • Includes 1 x 90° x 40mm Filler (Complete)
  • 2 x Vent Hose Tail: (½ inch)
  • 2 x Back Nut (½ inch)
  • 2 x Washer/Gasket (½ inch)
  • 1 x Vent (½ inch) - this is included without a washer/gasket or backing nut, as some other water tanks have a pre-fitted threaded insert in the tanks.
