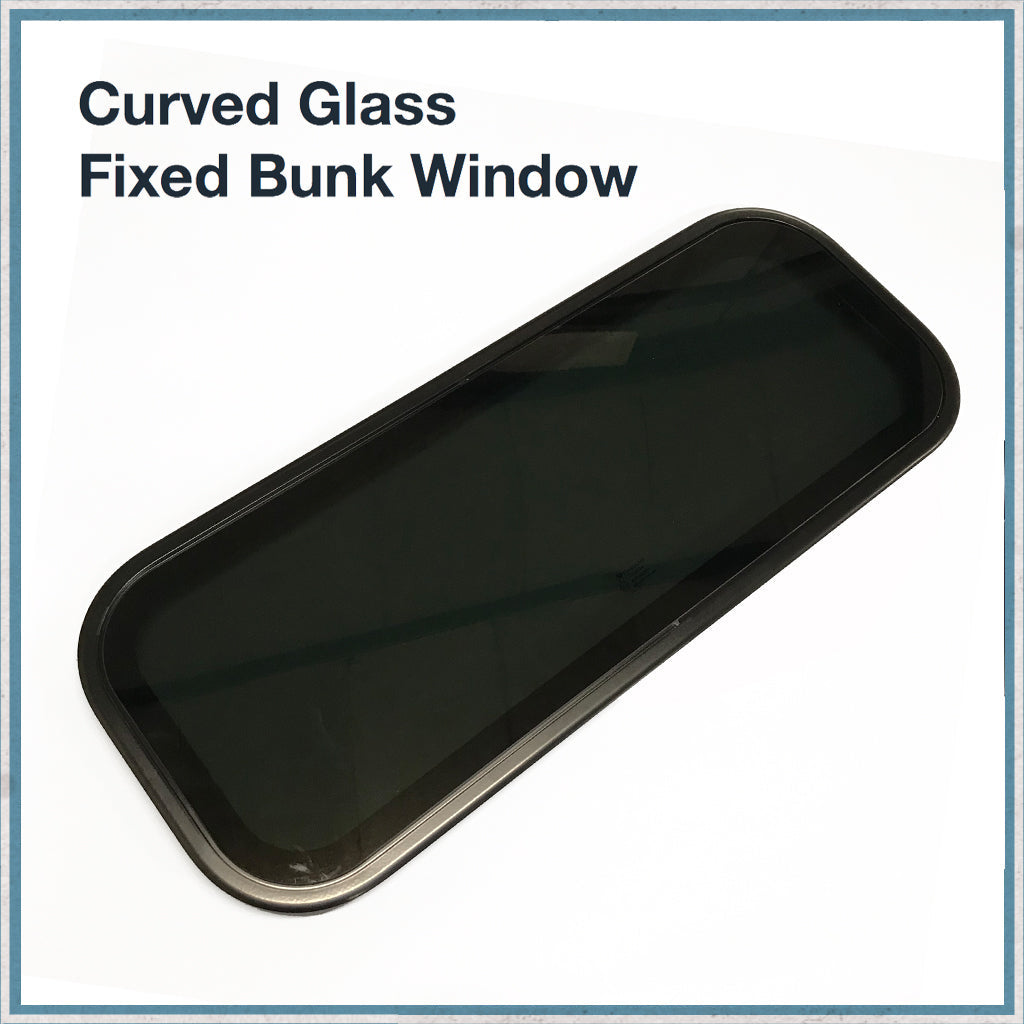

Curved Glass & Aluminium Framed Fixed Bunk Window

Curved Glass & Aluminium Framed Fixed Bunk Window


Curved Glass & Aluminium Framed Fixed Bunk Window

Exclusive to Camper Interiors

Window size overall 830mm x 330mm

Window cut out size 800mm x 300mm

Our aluminium framed glass windows have been designed specifically to fit the curved side of a van, without deforming the van body, as can happen when you fit a standard flat framed motorhome window into a van.

They are ideal for van conversions where you want an opening window in the bed area of the conversion.

The glass is bonded into a recessed powder coated aluminium frame, making it flush with the front of the frame, that's then only 3mm thick, giving a safe streamlined window.

These have been created to match the Dometic S7 and Horrex curved top opening windows.

The frame is a T shaped profile which creates an internal framed opening that's 32mm deep, to allow for insulation and any wooden framing, but then giving a neat inner finish.

These will also fit perfectly into our Mercedes Sprinter/VW Crafter Sidepoz.

We have a matching opening version, with larger sizes coming soon

These windows have both European and USA approval.



  • Unique curved glass and aluminium frame to fit curved van bodies.

  • 80% tinted Glass with Powder Coated Black Frame

  • Can be paired with Dometic S7, or Horrex curved plastic windows

  • European and USA approval

  • Overall size: 33 x 83cm

  • Will fit both left and right hand sides
