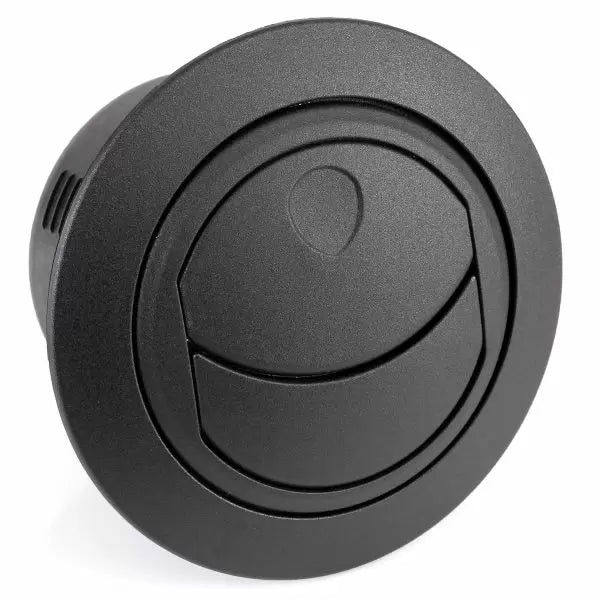

Directional Round Air Vent - Flanged

Directional Round Air Vent - Flanged

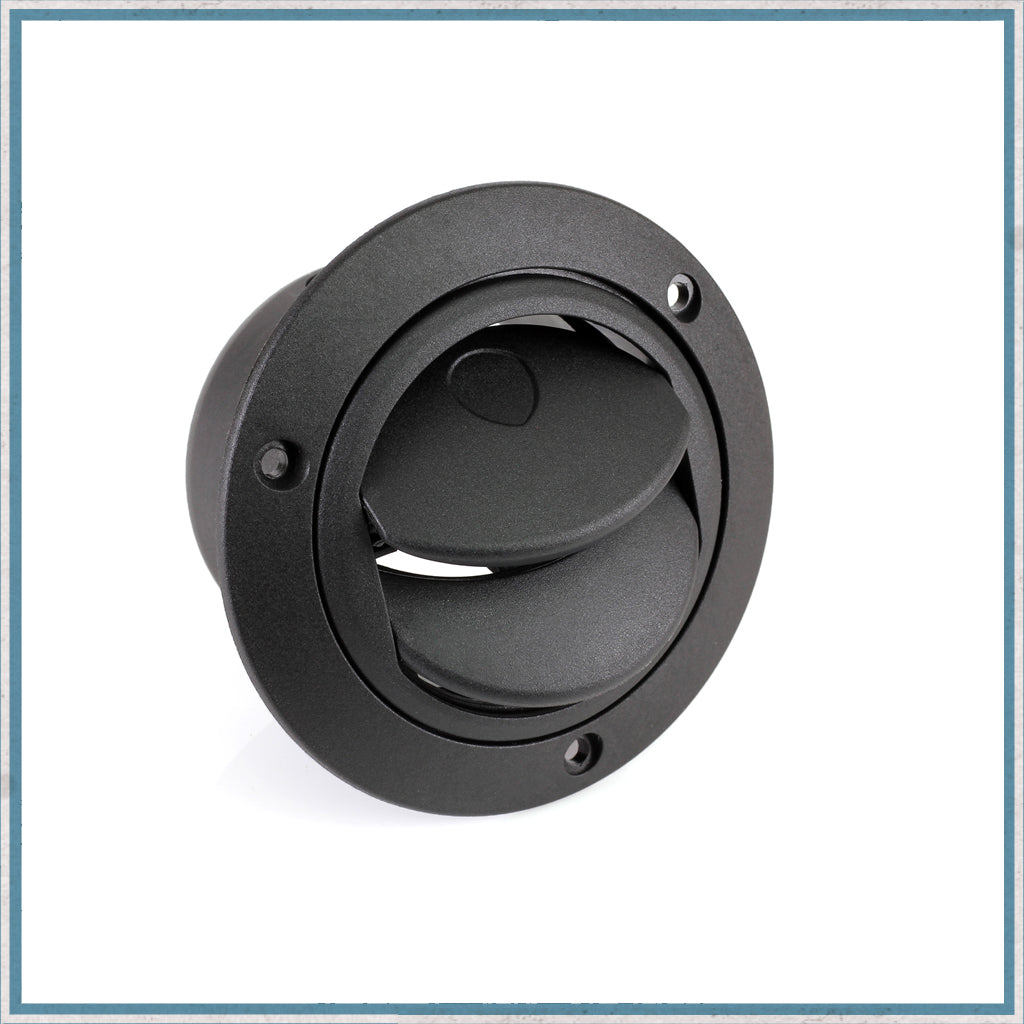

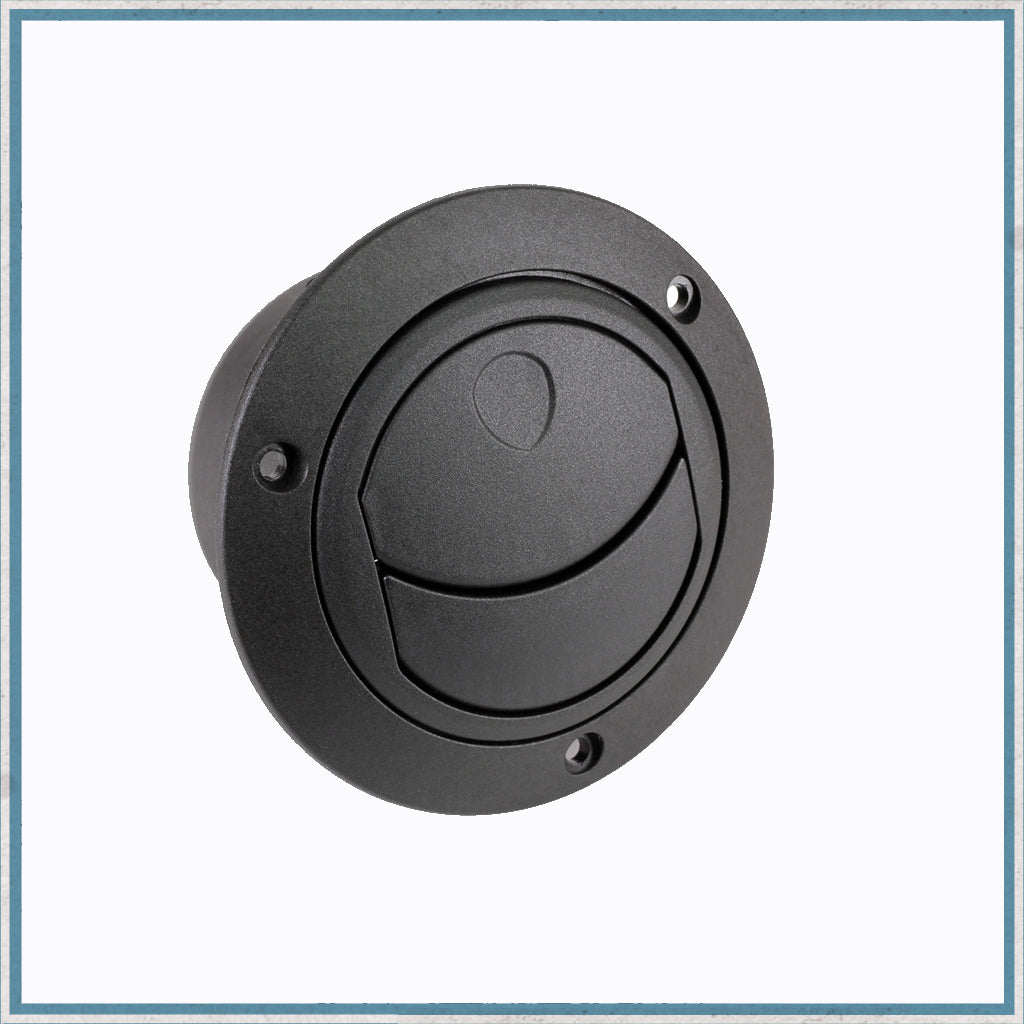

This high quality directional air vent is designed to accept 60mm ducting. The vent louvres can be rotated 360° to direct air where needed, or they can be closed off entirely to increase flow through other vents in the system.

These air vents are extremely durable, which make them perfect for air distribution in numerous applications including automotive, marine, agricultural etc.

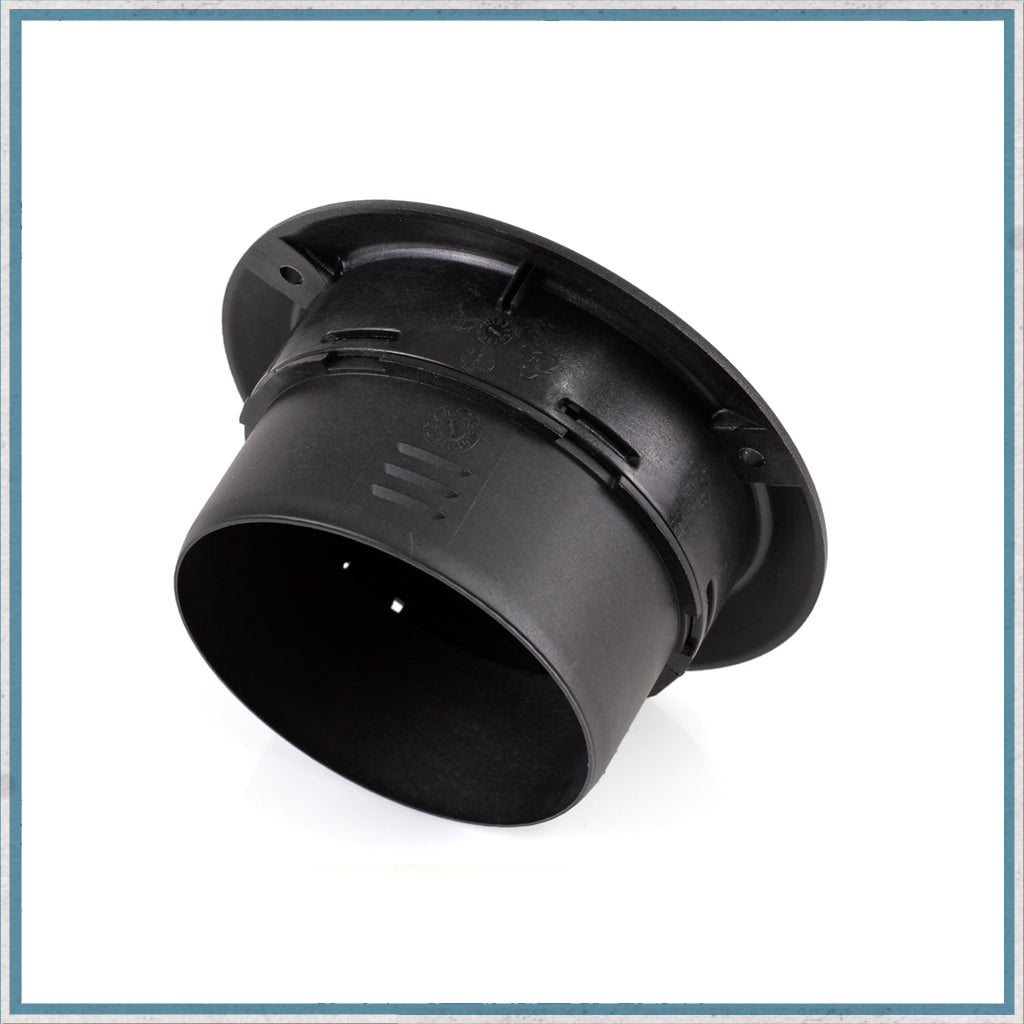

This flanged vent has 3 mounting holes to let you screw it onto a panel.

See Directional Round Air Vent for another version of this vent without the flanged face. This has a series of locating tabs on the side of the main body, letting the vent snap fit into panel thicknesses between 2 - 5mm, however if your panel is thicker than 5mm they can be held in place with a sealant.

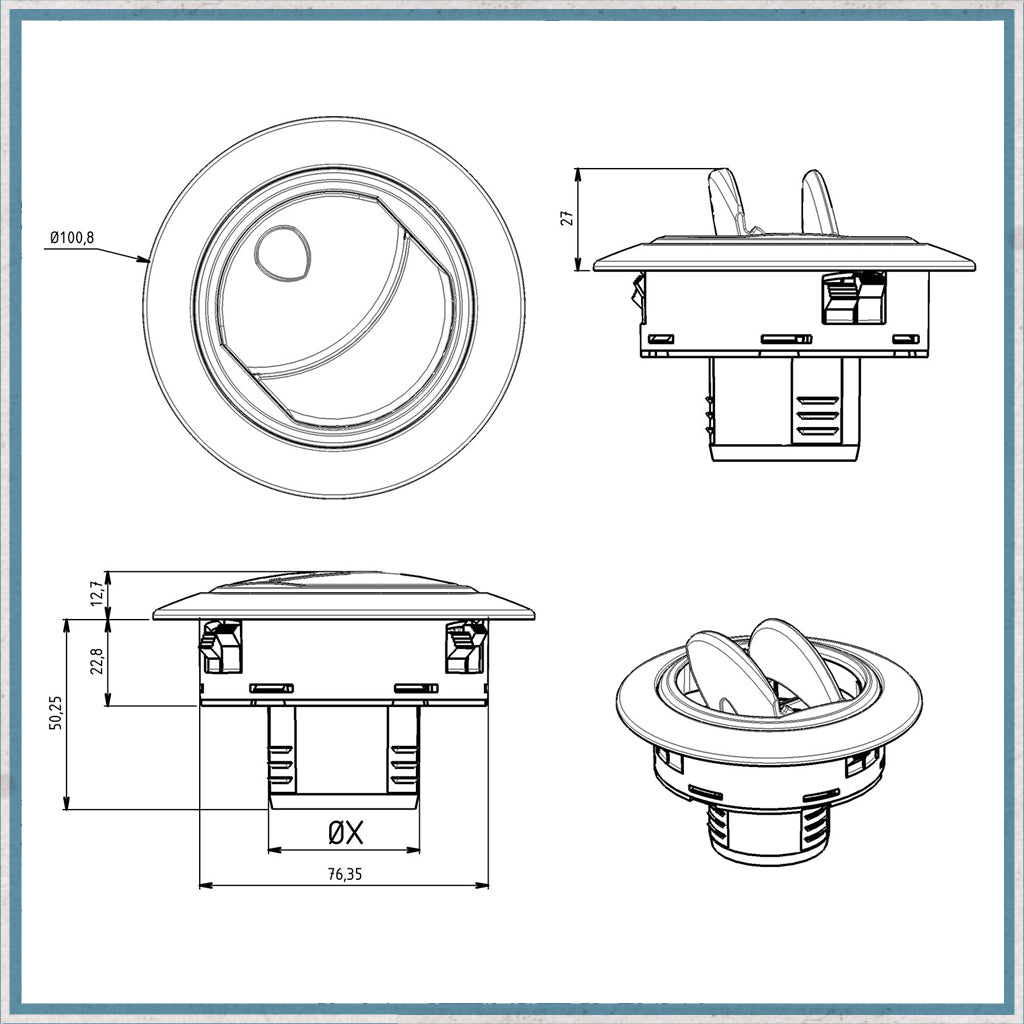

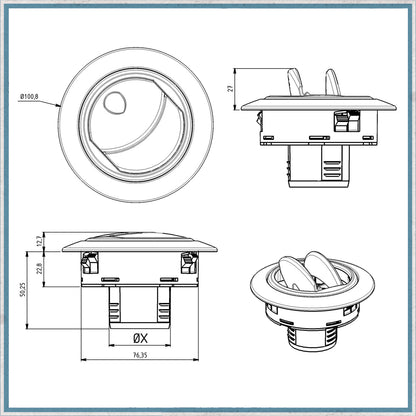

Dimensions:

Overall diameter: 100.8 mm

Hole cutout: 77 mm

Depth: 52 mm

ducting size: 60 mm
