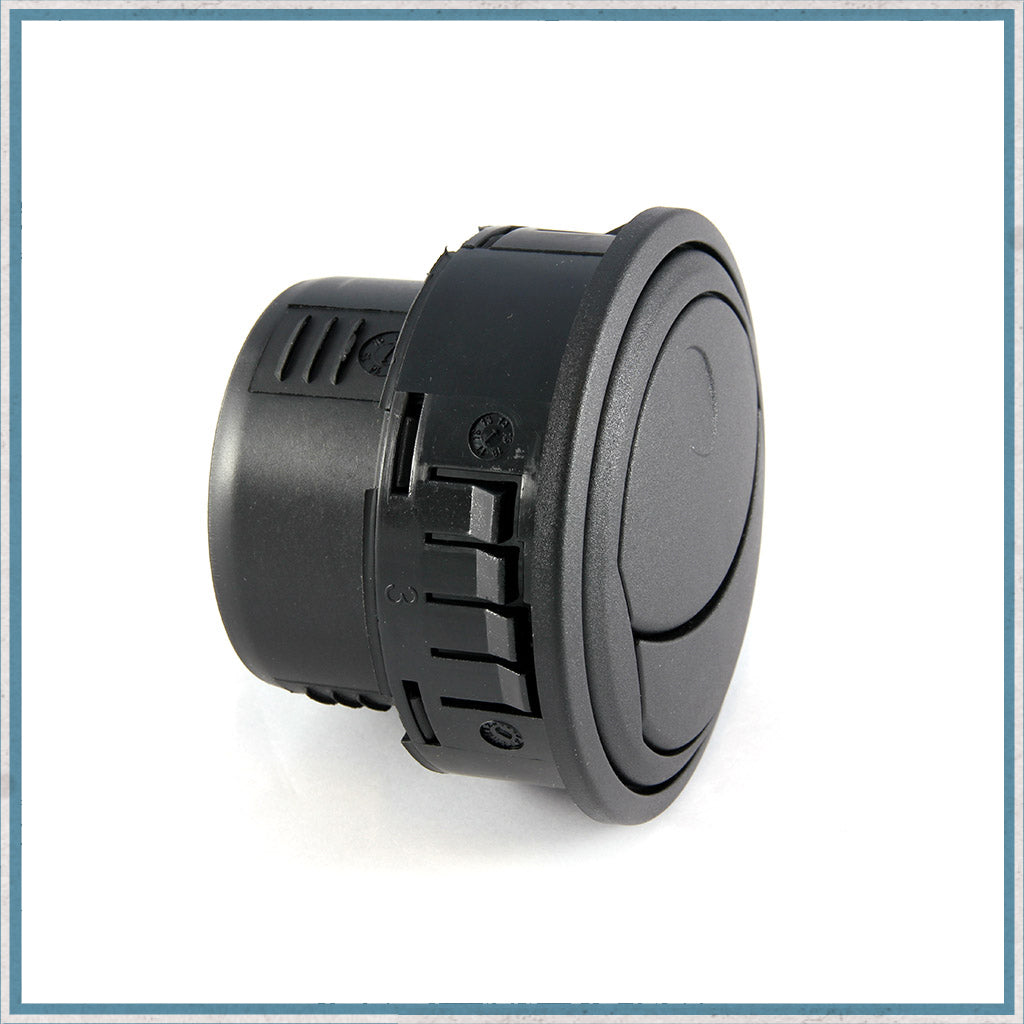

Directional Round Air Vent

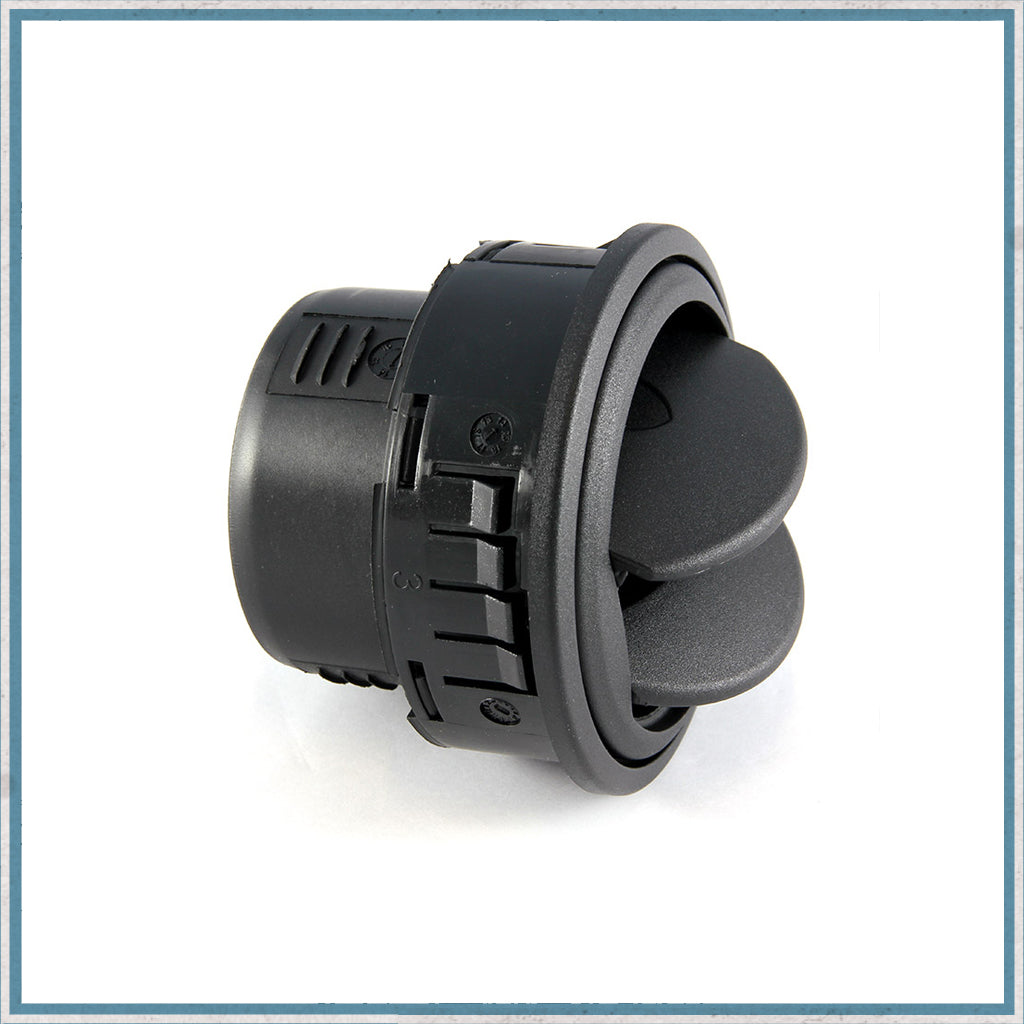

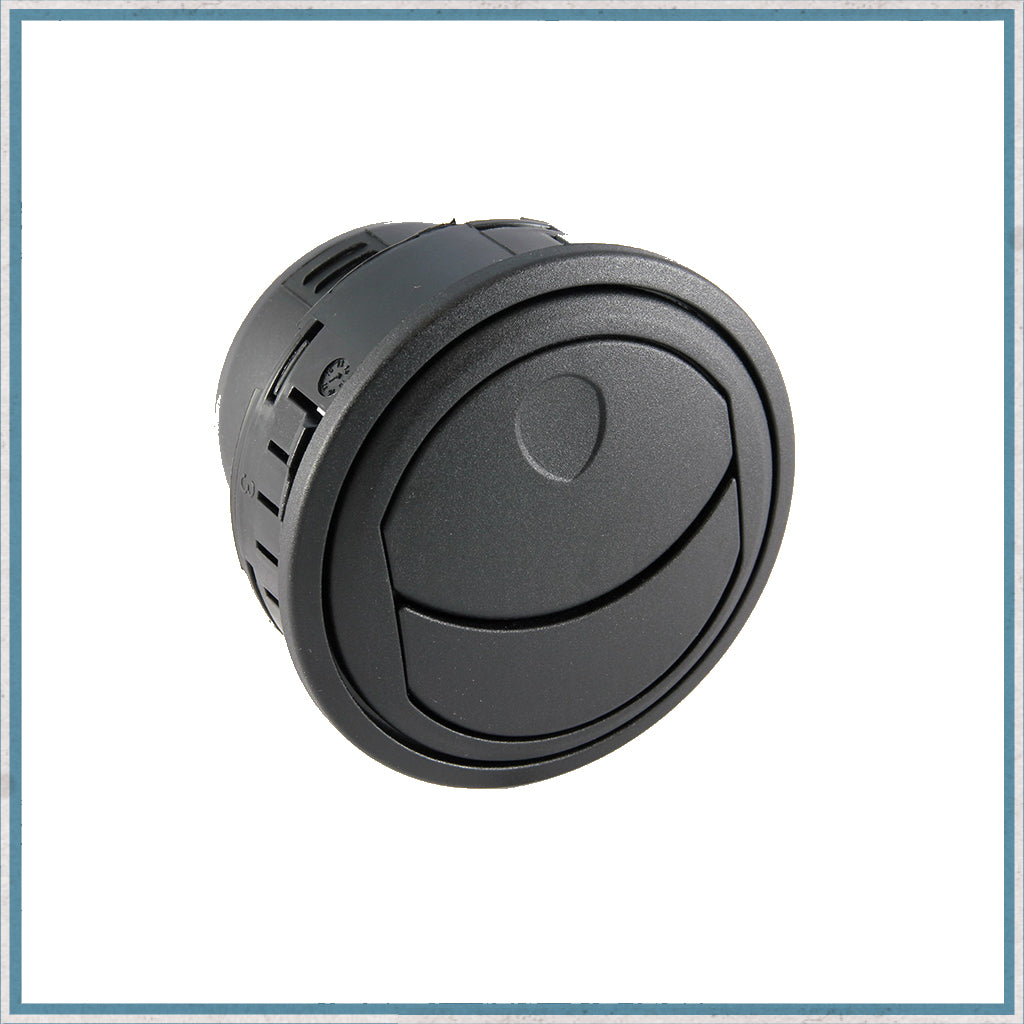

This high quality directional air vent is designed to accept 60mm ducting. The vent louvres can be rotated 360° to direct air where needed or can be closed off entirely to increase flow through other vents in the system.
These air vents are extremely durable, which make them perfect for air distribution in numerous applications including automotive, marine, agricultural etc.
There are series of locating tabs on the side of the main body, letting the vent snap fit into panel thicknesses between 2 - 5mm, however if your panel is thicker than 5mm they can be held in place with a sealant to hold the vent into position.
Alternatively see our Directional Round Air Vent - Flanged which has 3 mounting goles to let you screw it onto a panel.

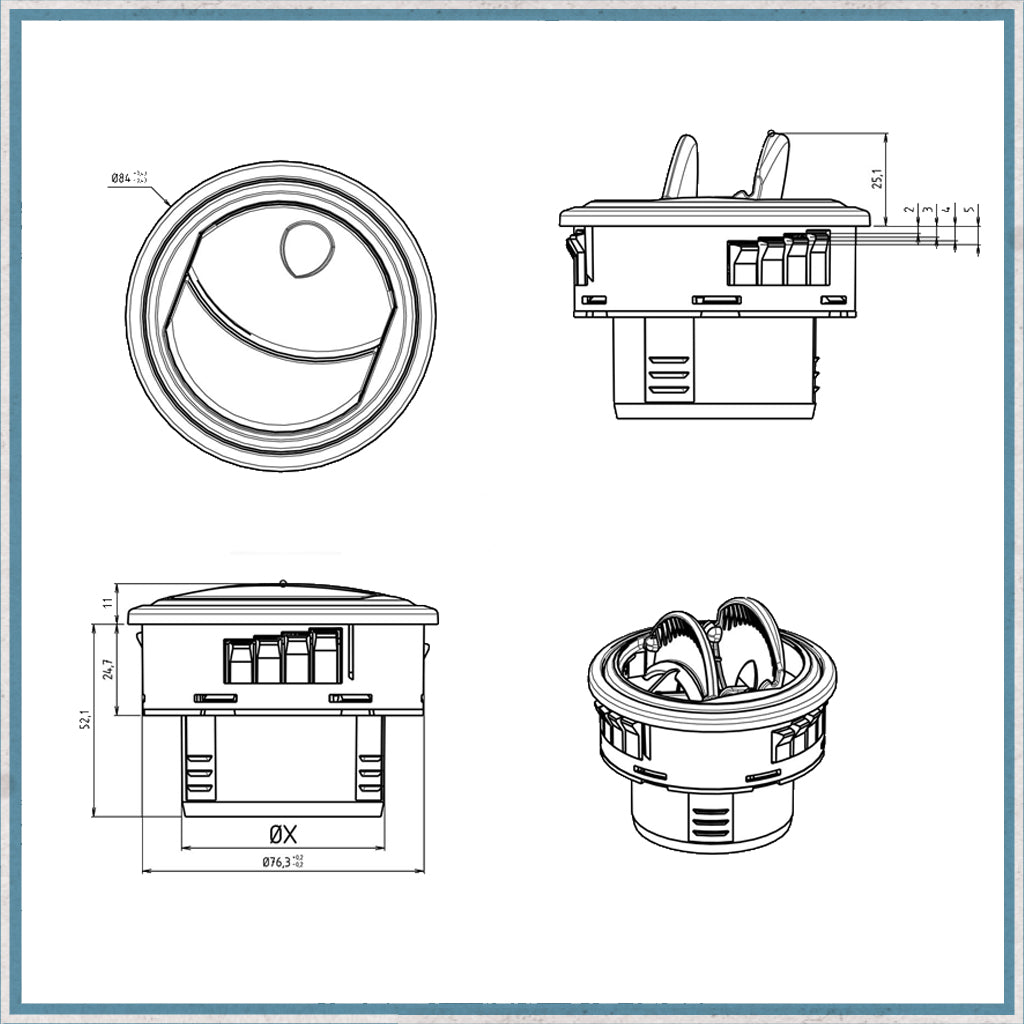

Overall diameter: 8amm
Hole cutout: 77mm
ducting size: 60mm
