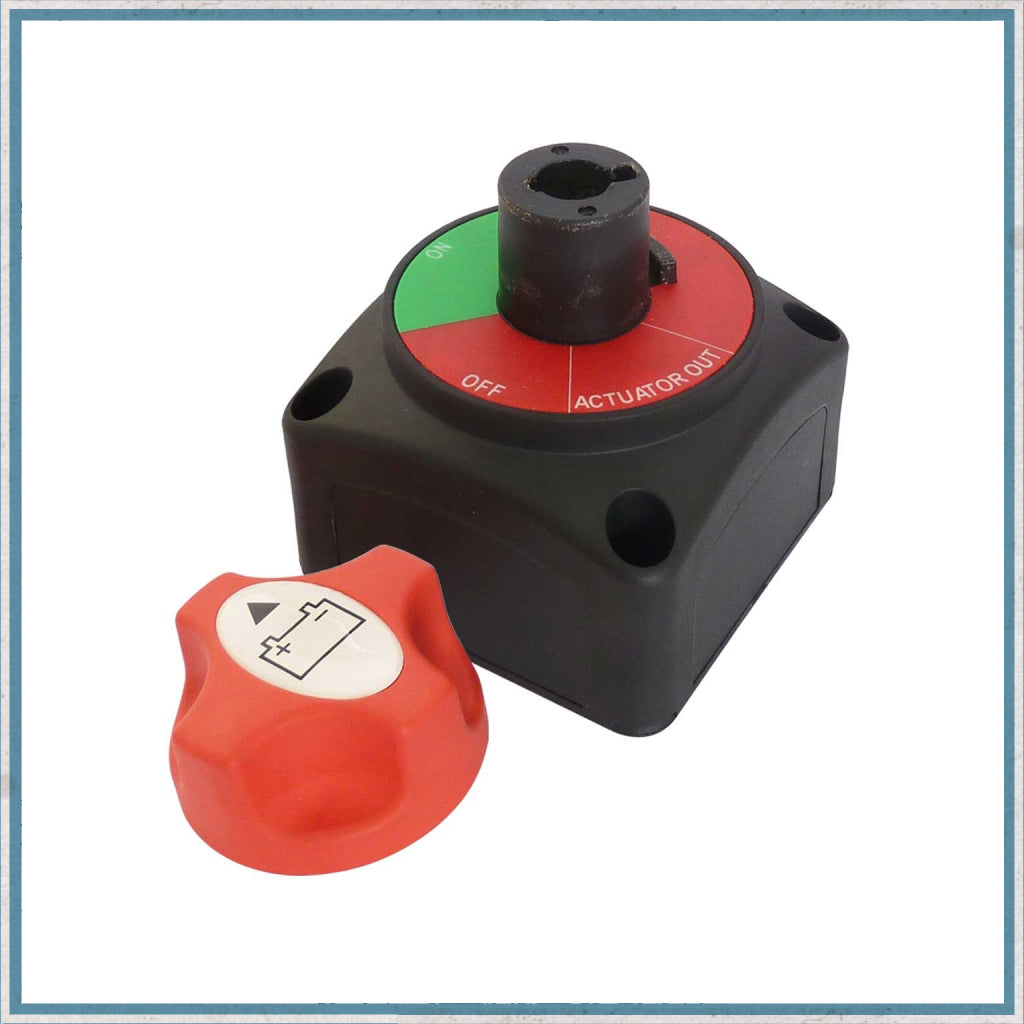

Marine Battery Isolator Switch / Kill Switch 200 Amp
This is a high quality battery isolator switch for camper van, motor home, car or marine use. This battery isolator switch is designed to cut off the power to the battery quickly in the event of an emergency or to ensure no unexpected power draw from the battery during vehicle storage. RoHS compliant.
These heavy duty waterproof marine battery isolator switches are rated at 200A 12v-50V DC continuous current and 1000A cranking current.
With switching positions of: on and off and then the key can be removed at the off position.
For through panel mounting
200A 50V DC continuous current.
1000A cranking current.
Footprint size is 69mm with 4 x mounting mounting hole centres of 55mm.
Termination : M10 Nut and stud.
CE and TUV approved
Waterproof to IP54. Ideal for marine applications.
For lower current applications see also our Battery Isolator Switch / Kill Switch 150 Amp
Or for higher current applications the: Marine Battery Isolator Switch / Kill Switch 300 Amp
If you also need battery terminals see the following:
Terminal covers (pair) for a pair of rubberised red and black terminal covers.
Alternatively we also have a pair of Quick Release Battery Terminals, for applications where you may want to disconnect your battery on regular occasions.
