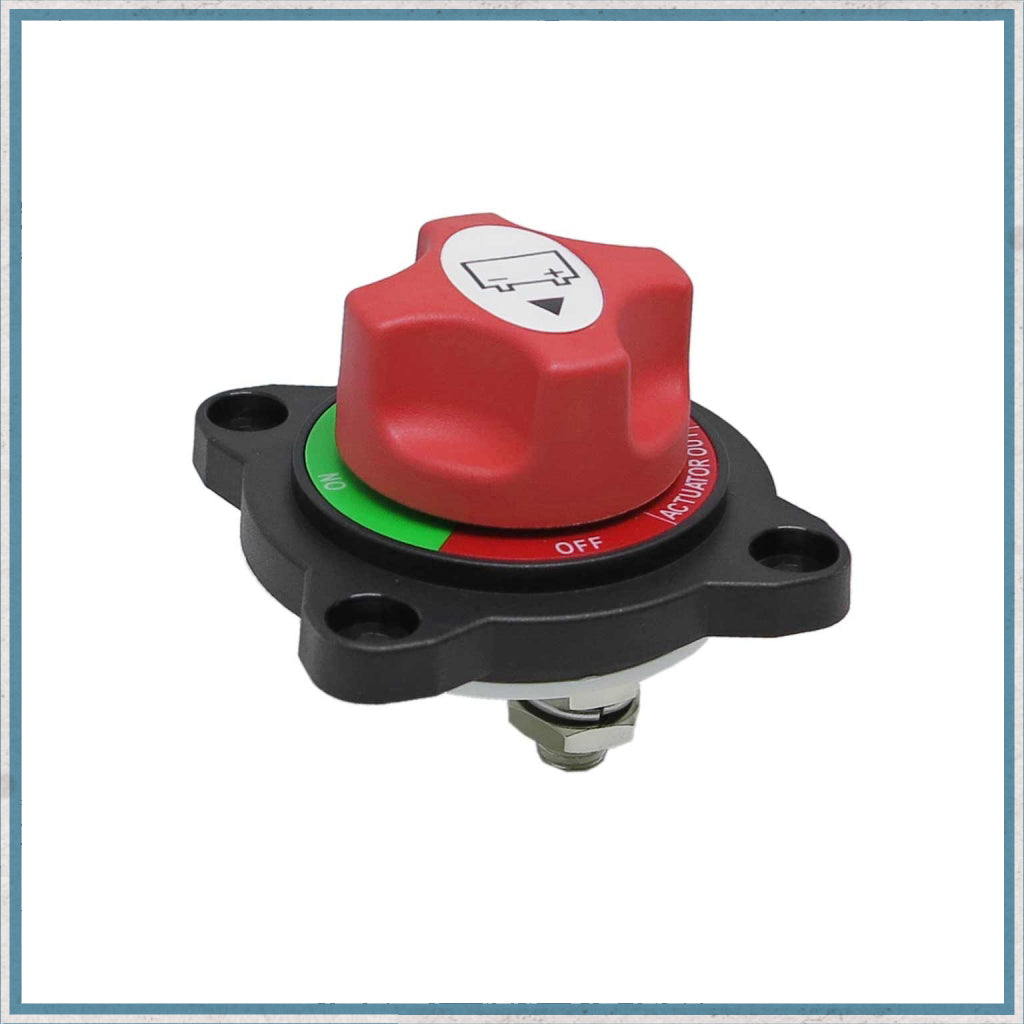

Marine Battery Isolator Switch / Kill Switch 300 Amp
Marine Battery Isolator Switch / Kill Switch 300 Amp
This is a high quality battery isolator switch for camper van, motor home, car or marine use. This battery isolator switch is designed to cut off the power to the battery quickly in the event of an emergency or to ensure no unexpected power draw from the battery during vehicle storage. RoHS compliant.
These heavy duty waterproof marine battery isolator switches are rated at 300A 50V DC continuous current, 450A intermittent and 1000A cranking current.
With switching positions of: on and off and then the key can be removed at the off position.
Specification:
For through panel mounting
300A 50V DC continuous current.
450A intermittent and 1000A cranking current.
Overall diameter is 71.8mm with 4 x mounting mounting hole centres of 56.24mm.
Termination : M10 Nut and stud.
Very high degree of waterproofing (IP68). Ideal for marine applications.
For lower current applications see also
Battery Isolator Switch / Kill Switch 150 Amp
Marine Battery Isolator Switch / Kill Switch 200 Amp
If you also need battery terminals see the following:
Terminal covers (pair) for a pair of rubberised red and black terminal covers.
Alternatively we also have a pair of Quick Release Battery Terminals, for applications where you may want to disconnect your battery on regular occasions.
