Touch Panel Dimmer Switch

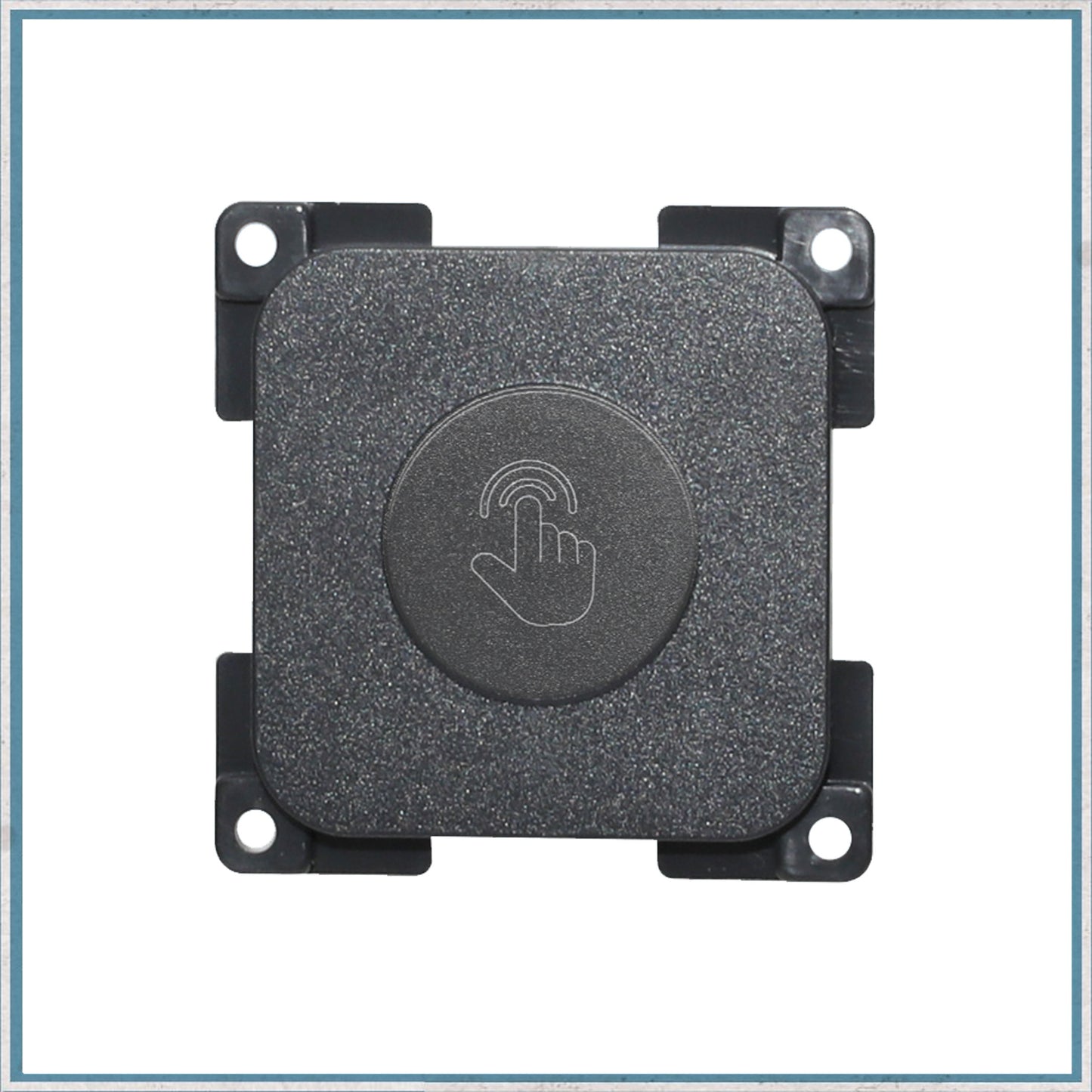

This 12V touch panel dimmer switch is designed to fit into the range of CBE and C-line surrounds
Designed for use in Camper Vans, Motorhomes, Caravans and boats, it turns the lights on/off with a quick touch and slowly dims the lights with a touch and hold. It also retains the last setting when switched back on.
This switch is an ideal option for use with our led tapes or the 1w mini recessed lamps or 2W Switched downlights, up to a max of max 3.5amps. The 3W Dimmable downlights have their own dimming circuit, so you would not need this dimmer if using those.
As a guide if you're controlling the LED strip/tape lighting, this dimmer is suitable for up to 6.5m of 7.2W/m LED tape at 12V, or 10m of 4.8W/m LED tape at 12V.
The 2W Switched downlights pull less than 0.2 amps each so at 3.5 amps max, this dimmer could be used to control around 15 of these downlights.
We include a back box with this switch to ensure the rear of the electronic panel is protected.
Dark grey in colour.

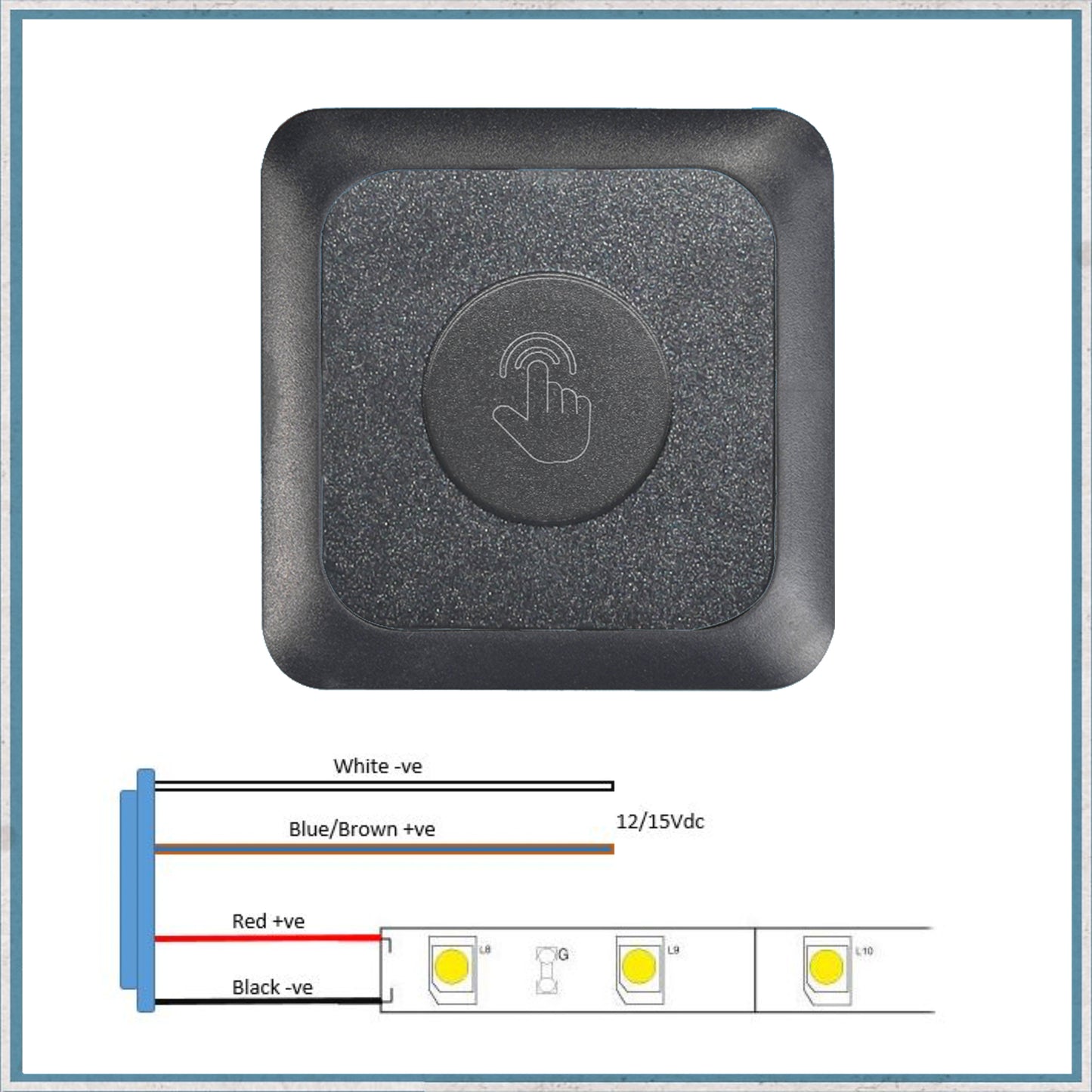

The second image shows the touch panel fitted with one of the surrounds, together with showing the wire colours which are:
Positive - Blue/Brown
Negative - White
Positive - Red
Negative - Black
Please note: the switch is ONLY to be used on LED’s that DO NOT have a driver fitted
See also our smaller round Black or White dimmer switches, which can mount directly into a timber panel.
