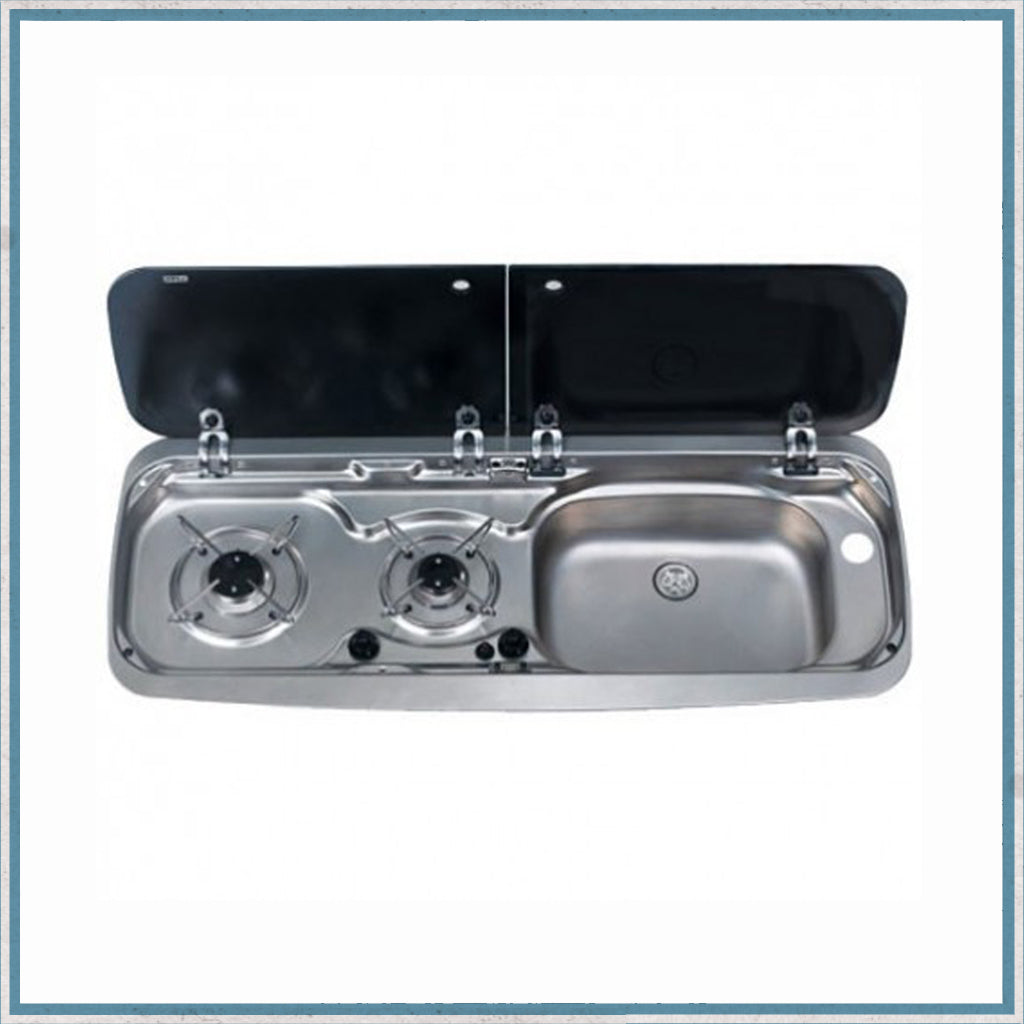

Smev 9222 - Dometic MO9222 Combination Hob and Sink.
The ever-popular compact SMEV 9222/Dometic MO9222 combination unit has a split tempered glass lid, giving more flexibility than a large single lid.
It is a convenient two-burner gas hob and sink combination for motorhomes and caravans, with the sink positioned to the left or the right of the gas burners.
This cleverly designed unit fits neatly into the kitchen area without taking up lots of valuable space, while its heat-resistant safety glass lid doubles as extra work space when closed.
The hob is now only only available as a Piezo ignition system and, for ease of cleaning, the chrome pan supports can be detached. Supplied with syphon and rubber seal.
It's shallow width makes it the ideal choice for conversions where you have a 3/4 width rock and roll bed and a narrow cupboard unit.

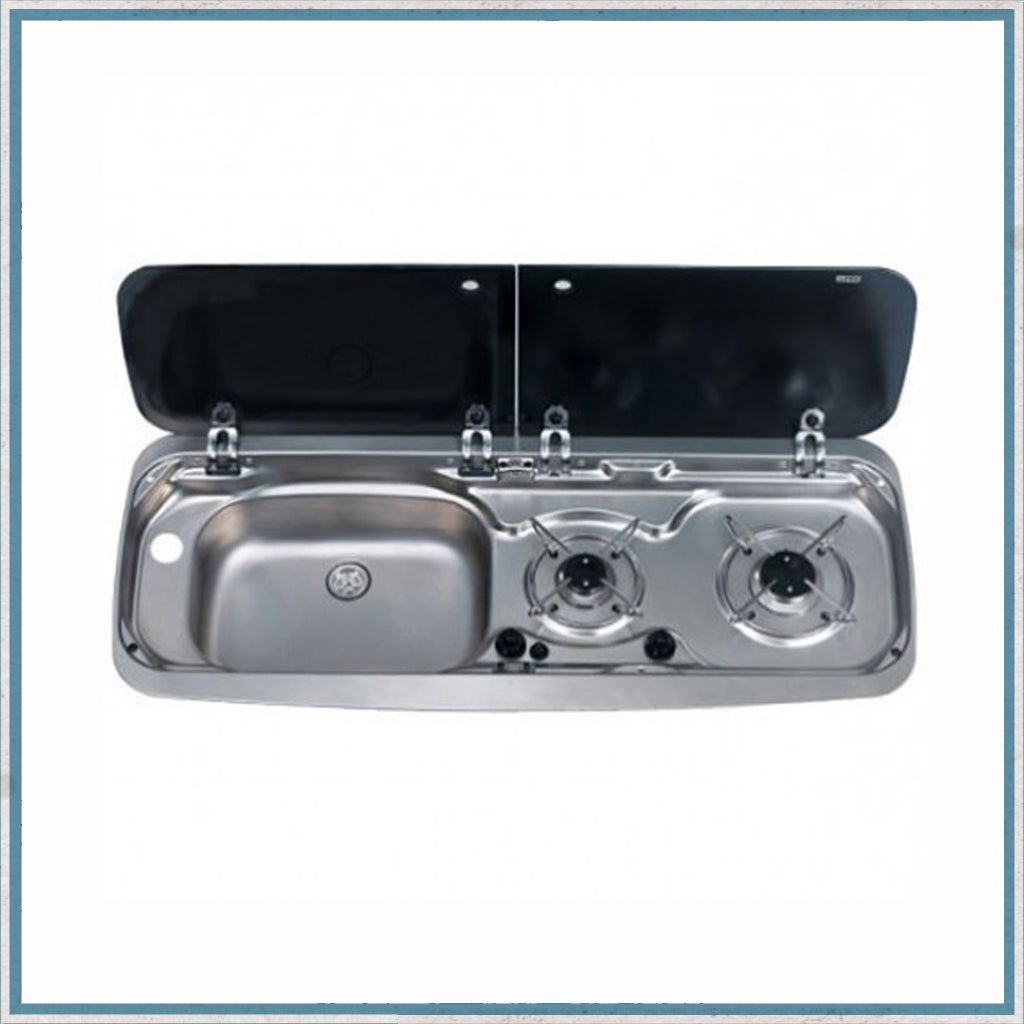

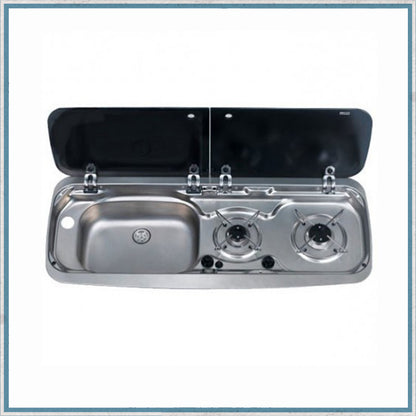

It comes with the sink on either the left (9222L), or the right (9222R)
To help with fitting these units, we have created a selection of water plumbing kits and gas fitting kits, which can be found here:
Dometic do now offer an updated version of the 9222, which has different control knobs and black enamelled pan supports. It has a considerably higher price, as they are not as readily available, but see here for the new product, now with product number HSG 2370.
Model 9222L or 9222R
Dimensions product depth 370 mm
Dimensions product height 152 mm
Dimensions product width 900 mm
Net weight 7 kg
Cut out width 883.00 mm
Cut out depth 307.00 mm
Output cooker plate 1 1.00 kW
Output cooker plate 2 1.80 kW
Gas pressure (DIN732) 30 mbar
Gas category (DIN732) G30 (50% n-butane, 50% i-butane)
Gas consumption cooktop 204.00 g/h
Select your choice of left or right handed sink and then your choice of tap from the drop down menus.
